ROCKY-3786EV CPU Card
Page 76

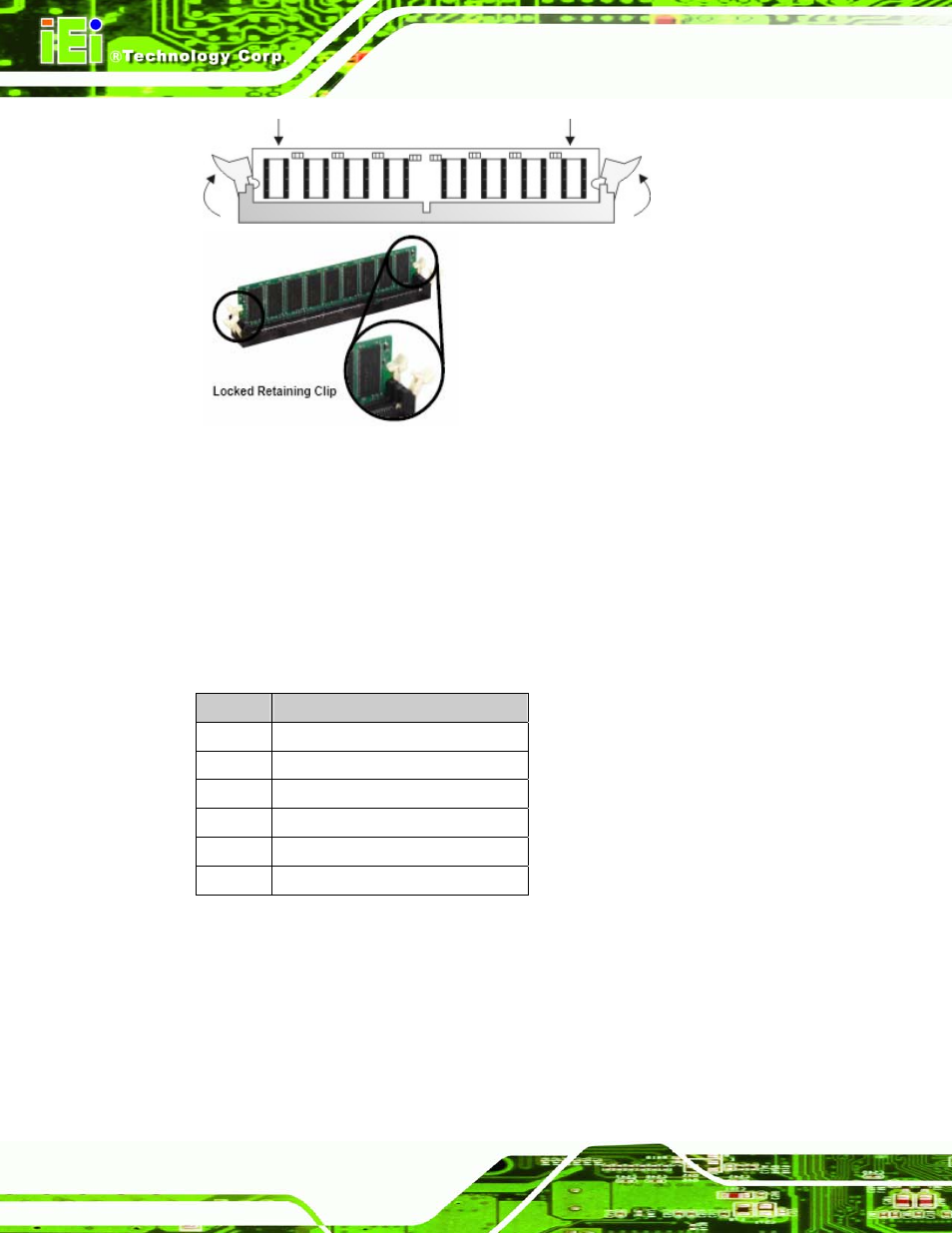

Figure 4-5: Locking the DIMM Module
Step 3: To remove the memory module, push both handles outward, and the memory
module is ejected by the mechanism in the socket. Step 0:
4.3.4 Peripheral Device Connection
Cables provided by IEI that connect peripheral devices to the CPU card are listed in Table
4-1 . Cables not included in the kit must be purchased separately.
Quantity Type
1 IDE cable
1 Keyboard/Mouse Y cable
1 RS-232 port cable
2 SATA cables
1 SATA power cable
1 USB cable
Table 4-1: IEI Provided Cables
4.3.4.1 Compact Flash Disk
When appropriately formatted, a Compact Flash disk can serve as a bootable hard drive in
applications where installation space is limited. The Compact Flash card occupies a
secondary IDE channel.
