MODEL NAME
ROCKY-3786EV CPU Card
Page 57
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 DATA1-
3 DATA1+ 4 GND
5 VCC 6 DATA2-
7 DATA2+ 8 GND
Table 3-22: Optional USB 2.0 Connector Pinouts

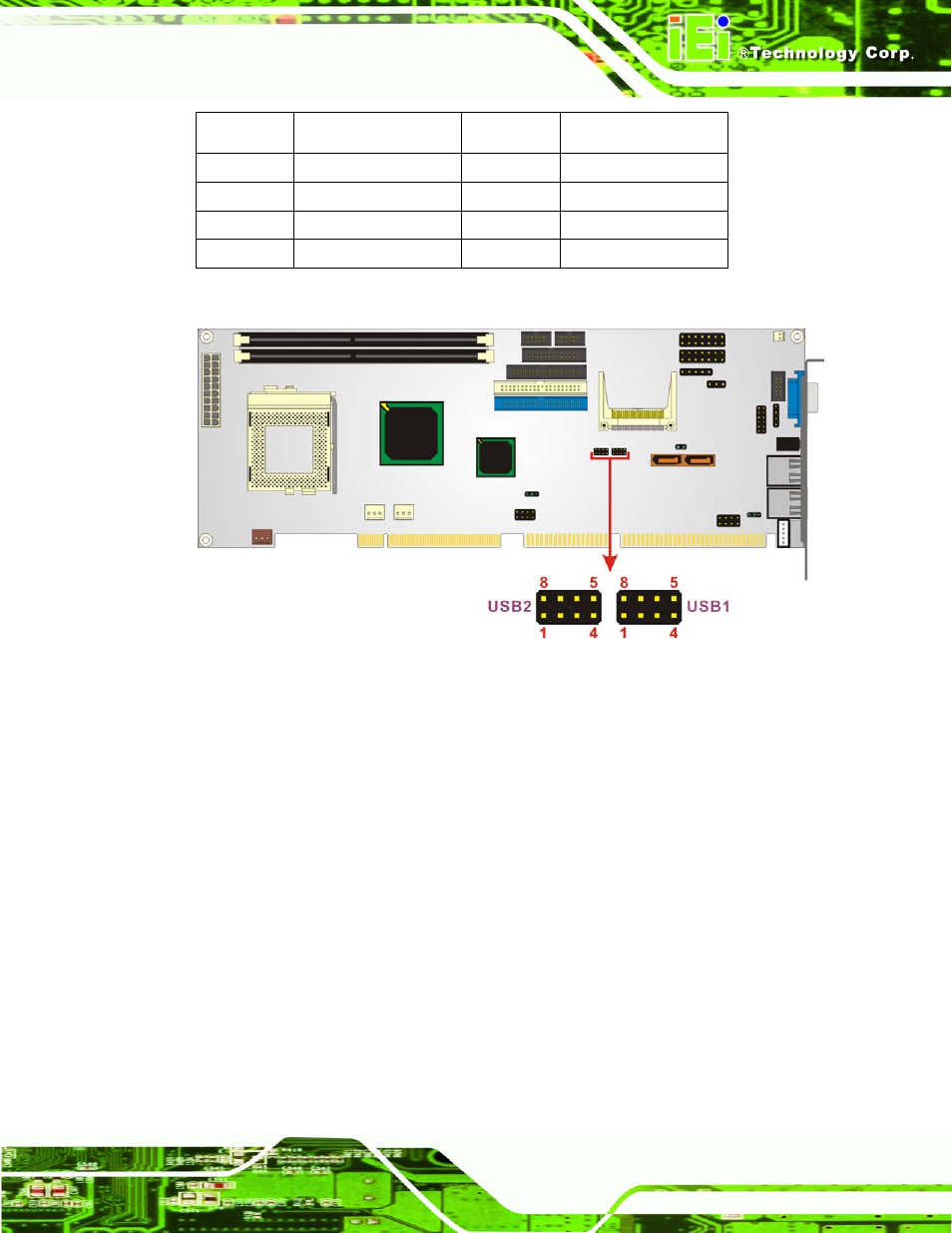

Figure 3-20: Optional USB 2.0 Connector Locations
3.3 External (Rear Panel) Connectors
Figure 3-21 shows the ROCKY-3786EV CPU board rear panel. The peripheral
connectors on the back panel can be connected to devices externally when the CPU card
is installed in a chassis. The peripheral connectors on the rear panel are:
1 x Audio Line-out connector
2 x Ethernet connectors
1 x PS/2 keyboard/mouse connector
1 x VGA connector
