MODEL NAME
ROCKY-3786EV CPU Card
Page 41
4 CD Right
Table 3-8: CD In Connector Pinouts

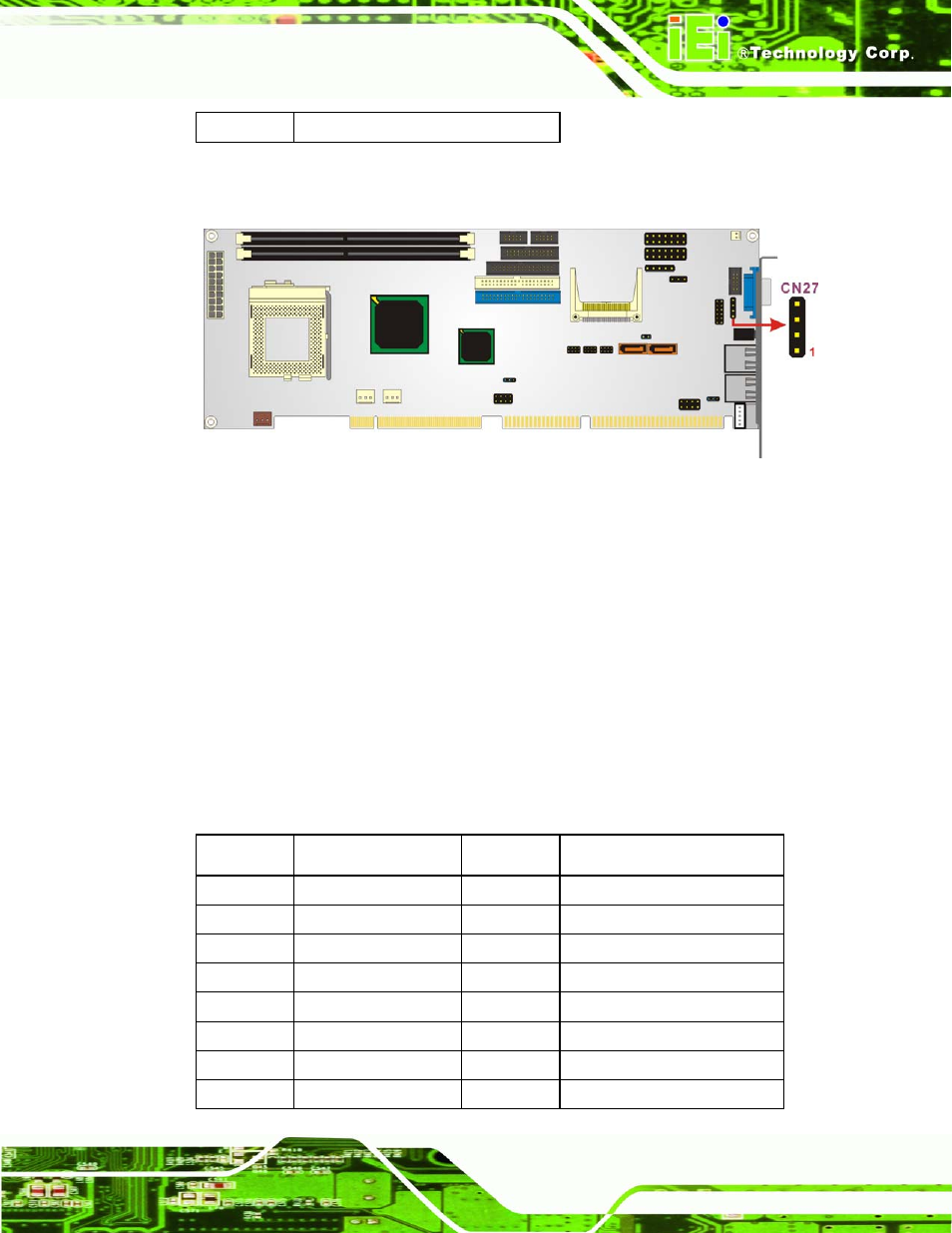

Figure 3-6: CD In Connector Location
3.2.6 Compact Flash Socket
CN Label: CN25
CN Type: 50-pin header (2x25)
CN Location: See Figure 3-7
CN Pinouts: See Table 3-9
A compact flash memory module is inserted to the Compact Flash connector (CF1).
Jumper 2 (JP2) configures the compact flash drive as either a slave or master device.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GROUND 26 CARD DETECT1
2 D3 27 D11
3 D4 28 D12
4 D5 29 D13
5 D6 30 D14
6 D7 31 D15
7 CS1# 32 CS3#
8 N/C 33 N/C
