MODEL NAME
ROCKY-3786EV CPU Card
Page 53
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 NC
Table 3-18: Parallel Port Connector Pinouts

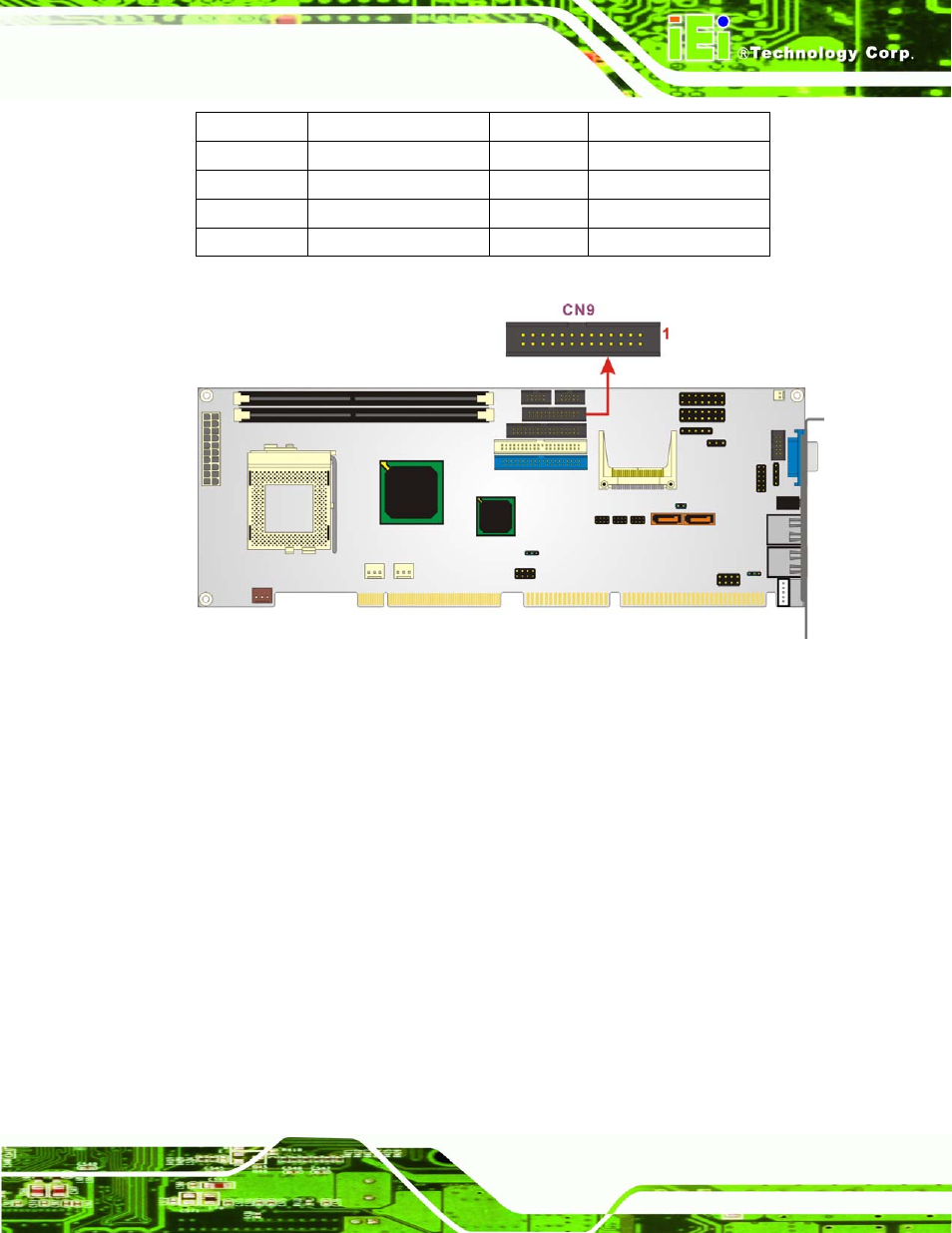

Figure 3-16: Parallel Port Connector Location
3.2.16 SATA Drive Ports
CN Label: CN29, CN30
CN Type: 7-pin port
CN Location: See Figure 3-17
CN Pinouts: See Table 3-19
The SATA drive ports provide connectivity to SATA drives with a maximum data transfer
rate of 150MB/s.
