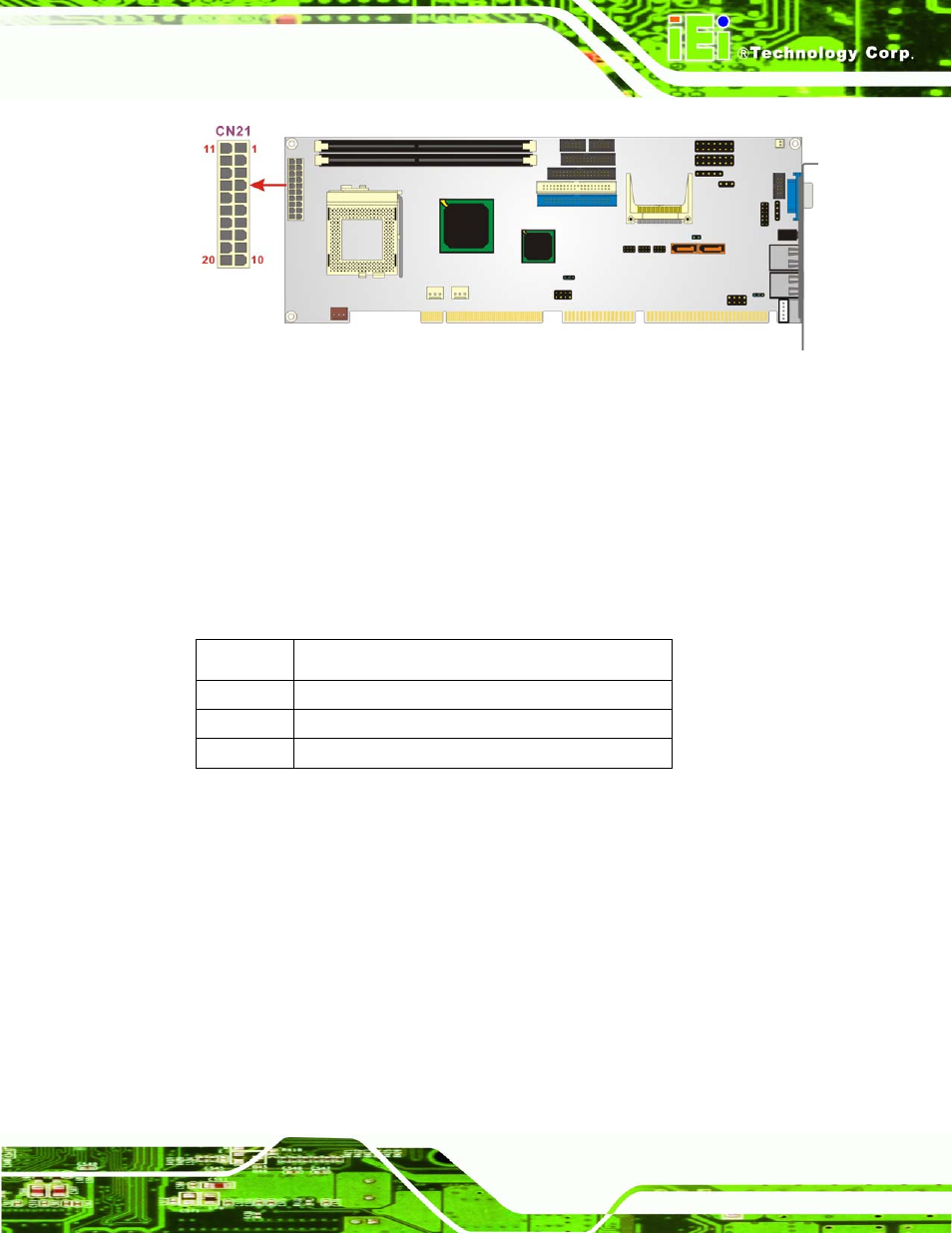

Figure 3-2: ATX Power Connector Location
3.2.2 ATX Power 5VSB and PSON connector
CN Label: CN20
CN Type: 3-pin header
CN Location: See Figure 3-3
CN Pinouts: See Table 3-5
PIN NO. DESCRIPTION
1 +5VSB
2 PSON#
3 GND
Table 3-5: ATX Power 5VSB and PSON Connector Pinouts
