ROCKY-3786EV CPU Card
Page 60
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 TXA+ ( TX+ ) 5. TXC-( N/C )
2 TXA-( TX- ) 6. TXB-( RX- )
3. TXB+( RX+ ) 7. TXD+( N/C )
4. TXC+( N/C ) 8. TXD-( N/C )
Table 3-25: Optiona 1Gb Ethernet Connector Pinouts
3.3.4 Keyboard/Mouse Connector
CN Label: CN23
CN Type: PS/2
CN Location: See Figure 3-21 (labeled number 1)
CN Pinouts: See Table 3-26
The PS/2 mouse and keyboard connectors are connected to a mouse and a keyboard.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 KEYBOARD DATA 2 MOUSE DATA
3 GND 4 +5V
5 KEYBOARD CLOCK 6 MOUSE CLOCK
Table 3-26: Keyboard/Mouse Pinouts

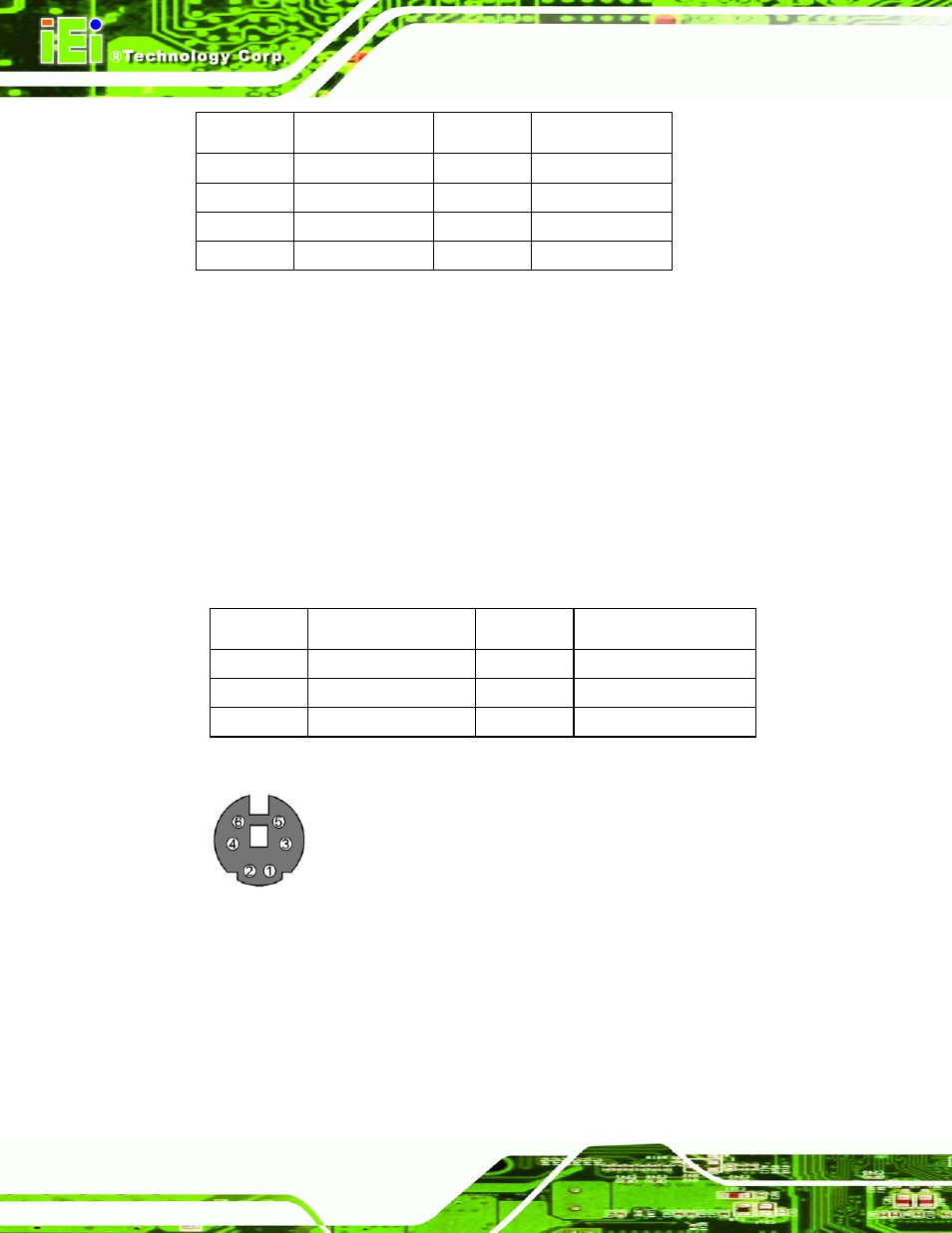

Figure 3-23: Keyboard/Mouse Pinout locations
3.3.5 VGA Connector
CN Label: CN11
CN Pinouts: See Table 3-27
