The 10/100Mbps connection can be made between the Ethernet connectors and a Local
Area Network (LAN) through a network hub. An RJ-45 Ethernet connector is shown in
Figure 3-22 .
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 TX+ 5. N/C
2 TX- 6. RX-
3. RX+ 7. N/C
4. N/C 8. N/C
Table 3-24: 10/100Mbps Ethernet Connector Pinouts

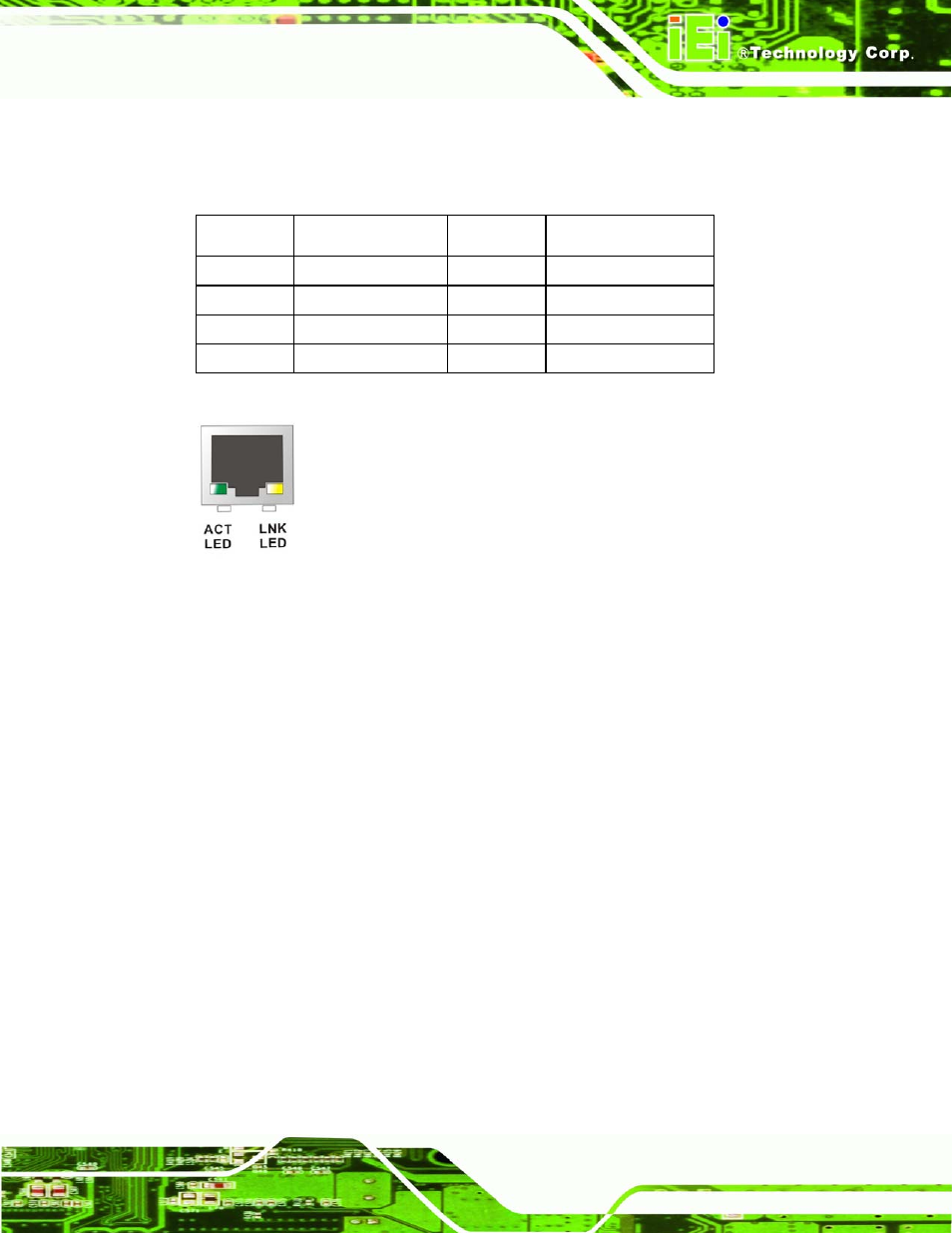

Figure 3-22: Ethernet Connector
3.3.3 Optional 1Gb Ethernet Connector
CN Label: LAN2
CN Type: RJ-45
CN Location: See Figure 3-21 (labeled number 3)
CN Pinouts: See Table 3-25
The 1Gb connection can be made between the Ethernet connectors and a Local Area
Network (LAN) through a network hub. An RJ-45 Ethernet connector is shown in Figure
3-22 .
