ROCKY-3786EV CPU Card
Page 14
Complies with PICMG 1.0
Complies with RoHS
Supports up to 133 MHz front side bus (FSB)
Supports up to 512 MB SDRAM memory module
Supports two SATA channels with transfer rates up to 150MB/s
Optional high performance gigabit Ethernet (GbE) controller
Optional USB 2.0 connectors
1.2 ROCKY-3786EV CPU Board Overview

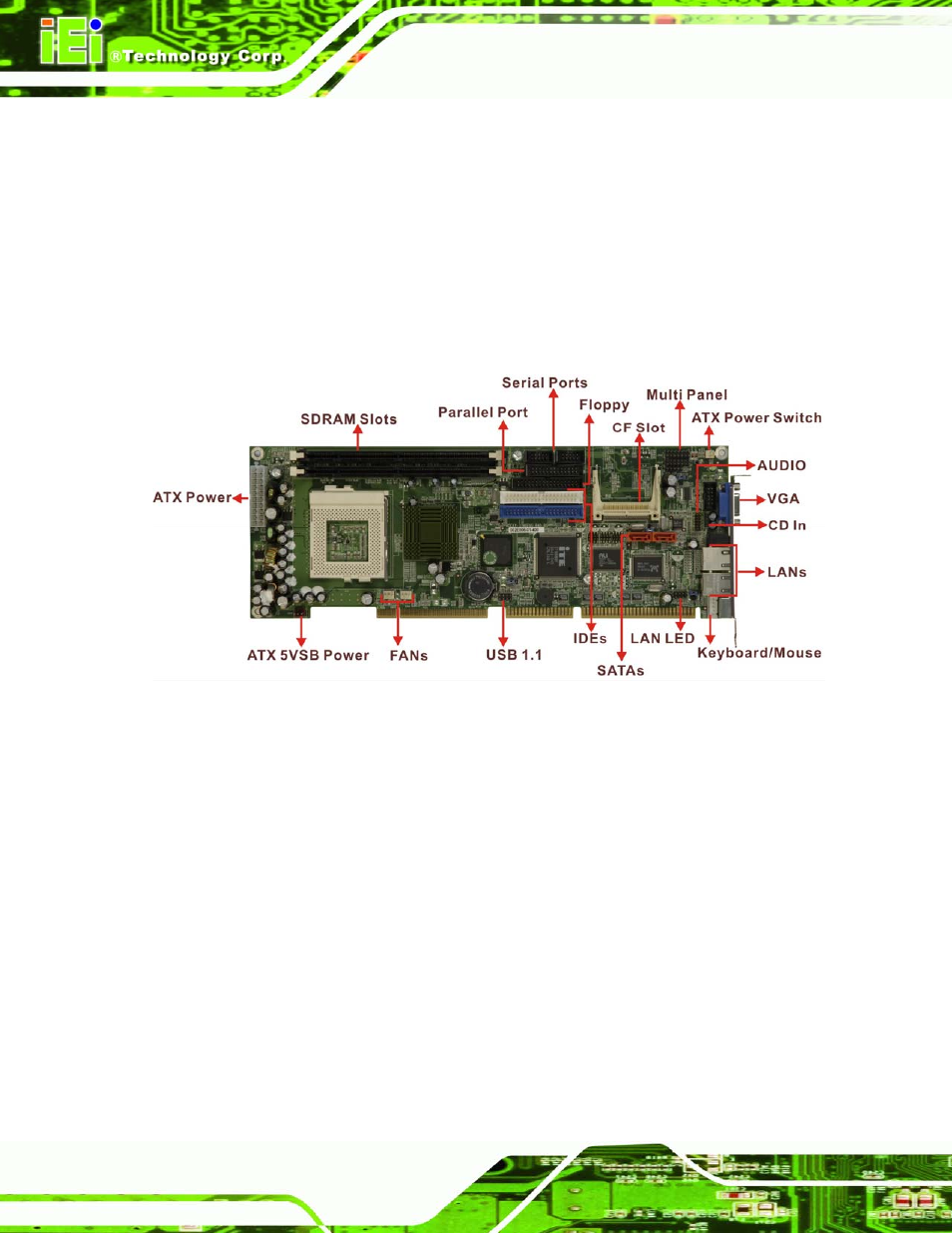

Figure 1-1 ROCKY-3786EV CPU Board Overview
1.2.1 ROCKY-3786EV CPU Board Connectors
The ROCKY-3786EV CPU board has the following connectors onboard:
1 x ATX power connector
1 x ATX power 5VSB and PSON connector
1 x ATX power switch connector
1 x Audio connector
1 x CD-in connector
1 x Compact Flash slot
2 x CPU fan connectors
2 x SDRAM slots
1 x Floppy disk drive connector
2 x IDE device connectors
