Step 3:
Secure the cooling kit in place. Gently push the levered mounting clip down with
a slight inward movement to snap it into place under the connecting tab. (See
Step 4:
Connect the fan cable. Connect the cooling kit fan cable to the fan connector on
the CPU card. Carefully route the cable and avoid heat generating chips and fan
blades.
Step 0:

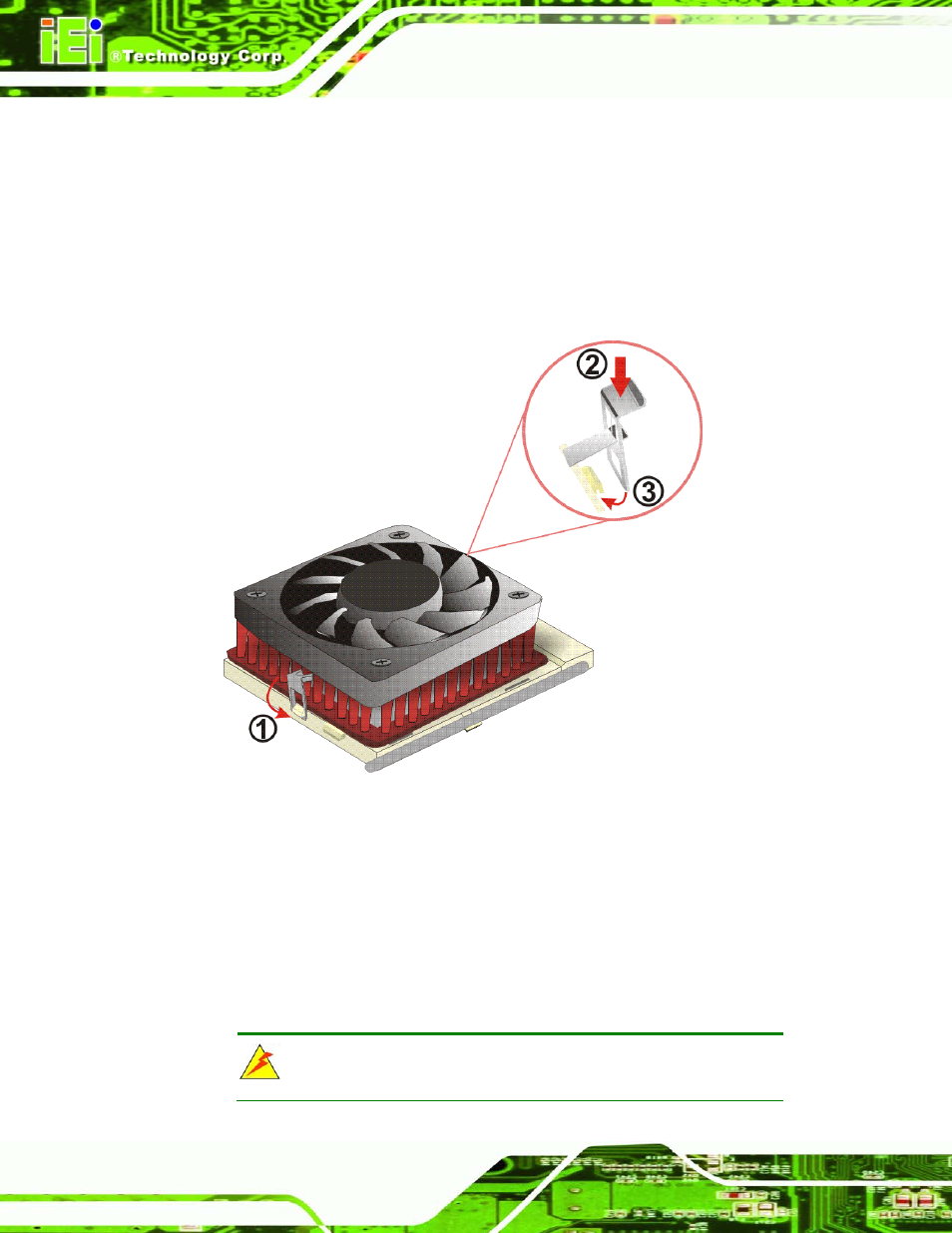

Figure 4-3: Install the CPU cooler
4.3.3 DIMM Module Installation
4.3.3.1 Purchasing the Memory Module
WARNING!
