MODEL NAME

ROCKY-3786EV CPU Card

Page 73

CF-504-RS

CF-507-RS

CF-512-RS

CF-513-RS

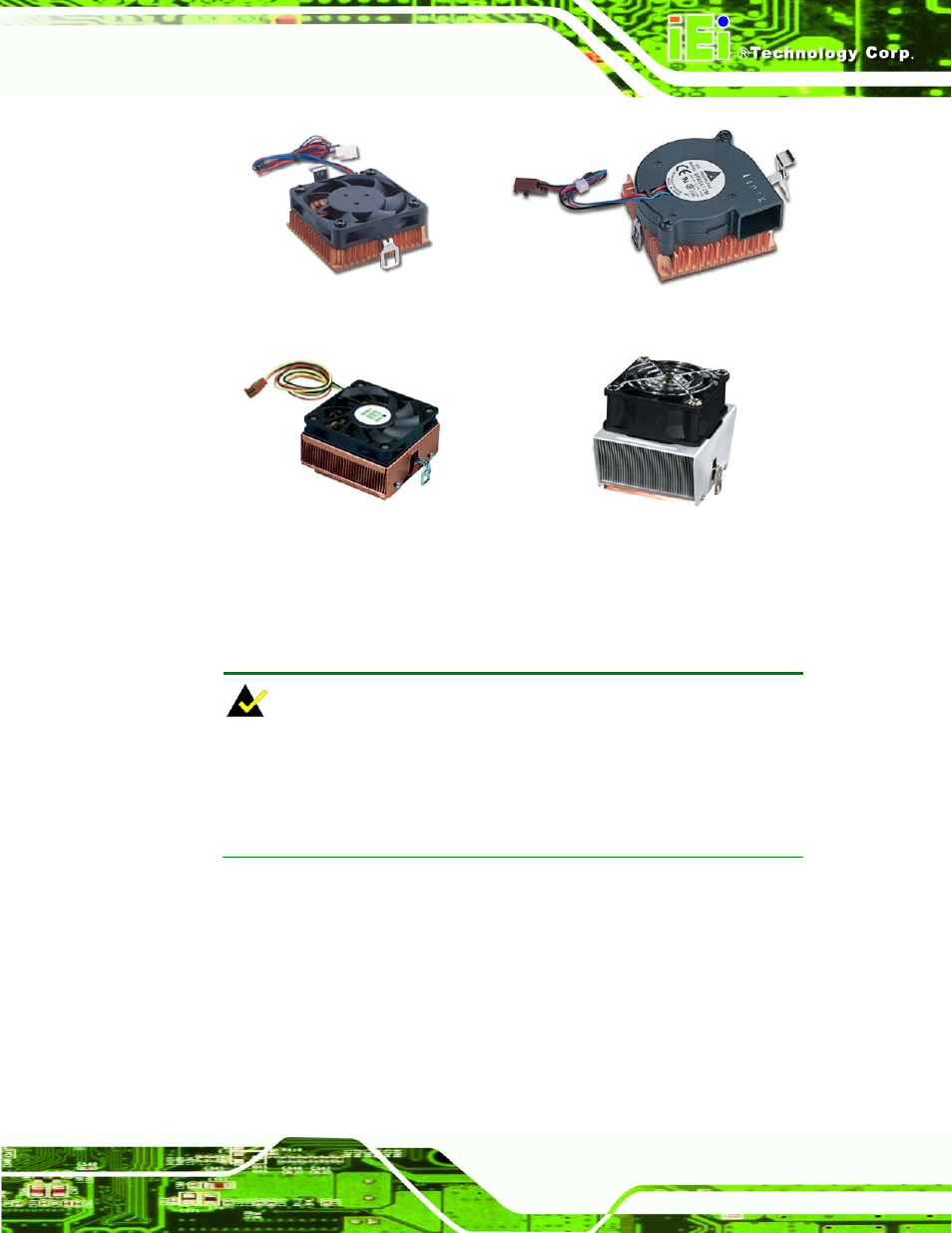

Figure 4-2: IEI Socket 370 Cooling Kits

NOTE:

The heat sink comes with a sprayed layer of thermal paste. Do not

accidentally wipe away the thermal paste while unpacking or installing the

heat sink. Thermal paste between the CPU and the heat sink is important

for optimum heat dissipation.

To install the cooling kit, please follow the steps below.

Step 1:

Properly orient the cooling kit. Be sure the cooling kit is properly oriented before

attaching the mounting clips. The levered cooling kit mounting clip should be

aligned with the connecting tabs of the CPU socket closest to the DIMM socket.

Step 2:

Attach the unlevered mounting clip first. Slip the unlevered mounting clip under

the connecting tab of the CPU socket. (See Figure 4-3)
