ROCKY-3786EV CPU Card
Page 38

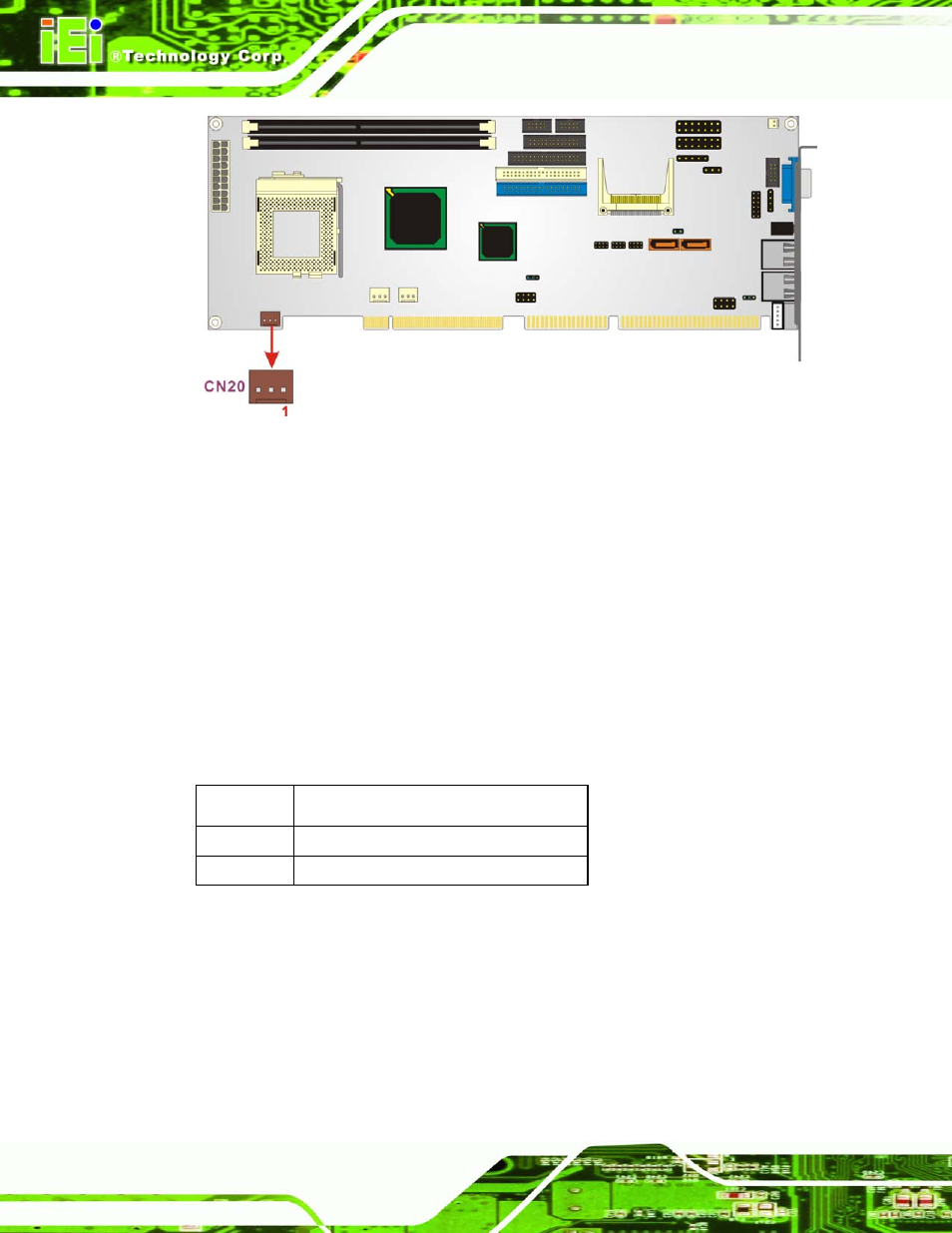

Figure 3-3: ATX Power 5VSB and PSON Connector Location
3.2.3 ATX Power Switch Connector
CN Label: CN5
CN Type: 2-pin header
CN Location: See Figure 3-4
CN Pinouts: See Table 3-6
The ATX power switch connector supports ATX power switch and enables power on/off
from the chassis.
PIN NO. DESCRIPTION
1 PWR_BUTTON+
2 PWR_BUTTON-
Table 3-6: ATX Power Switch Connector Pinouts
