ROCKY-3786EV CPU Card
Page 44
3.2.8 CRT Connector
CN Label: CN26
CN Type: 10-pin header (2x5)
CN Location: See Figure 3-10
CN Pinouts: See Table 3-12
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RED 2 DDCCLK
3 GREEN 4 DDC DAT
5 BLUE 6 GROUND
7 HSYNC 8 GROUND
9 VSYNC 10 GROUND
Table 3-11: CRT Connector Pinouts

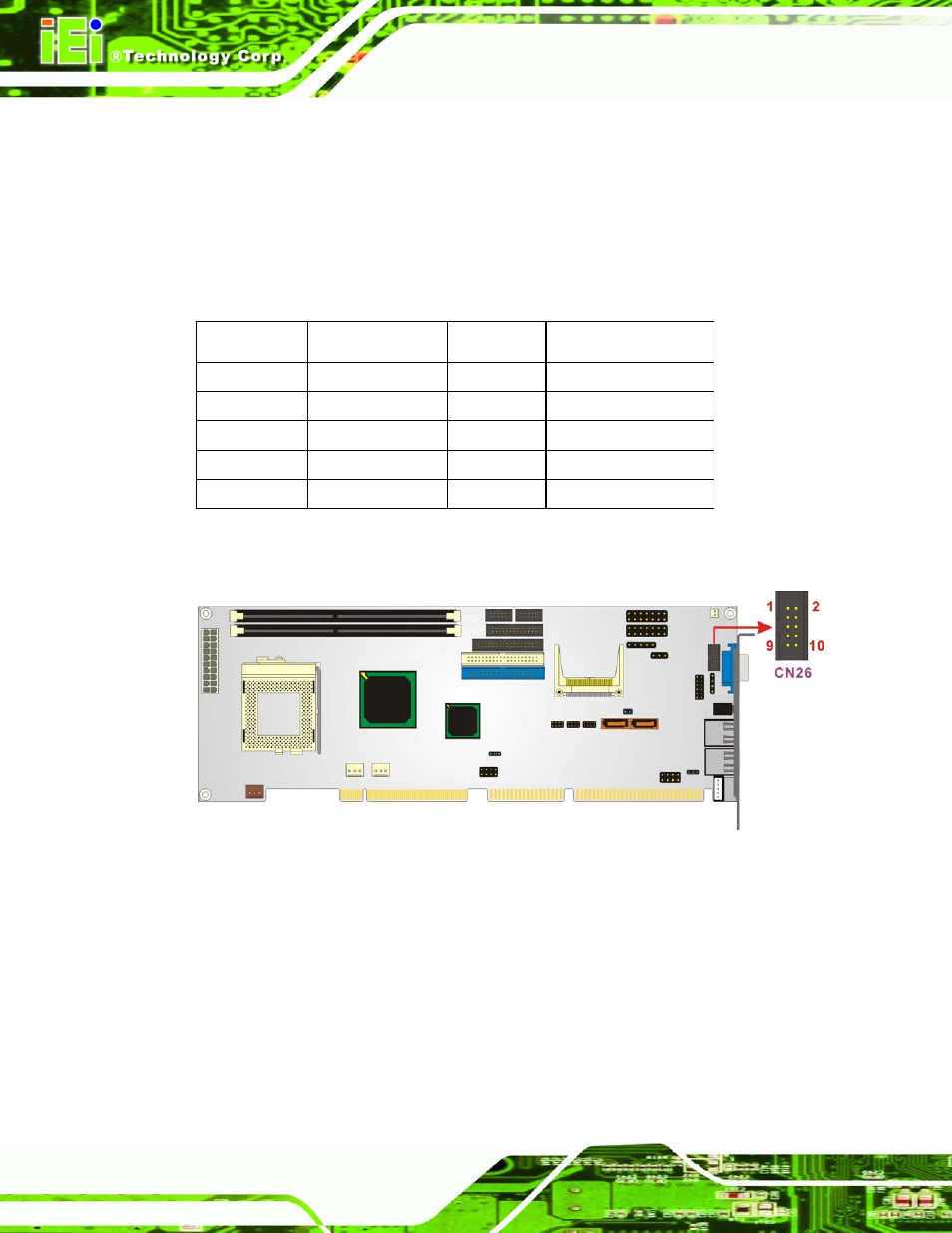

Figure 3-9: CRT Connector Location
3.2.9 FDD Connector
CN Label: CN3
CN Type: 34-pin header (2x17)
CN Location: See Figure 3-10
CN Pinouts: See Table 3-12
