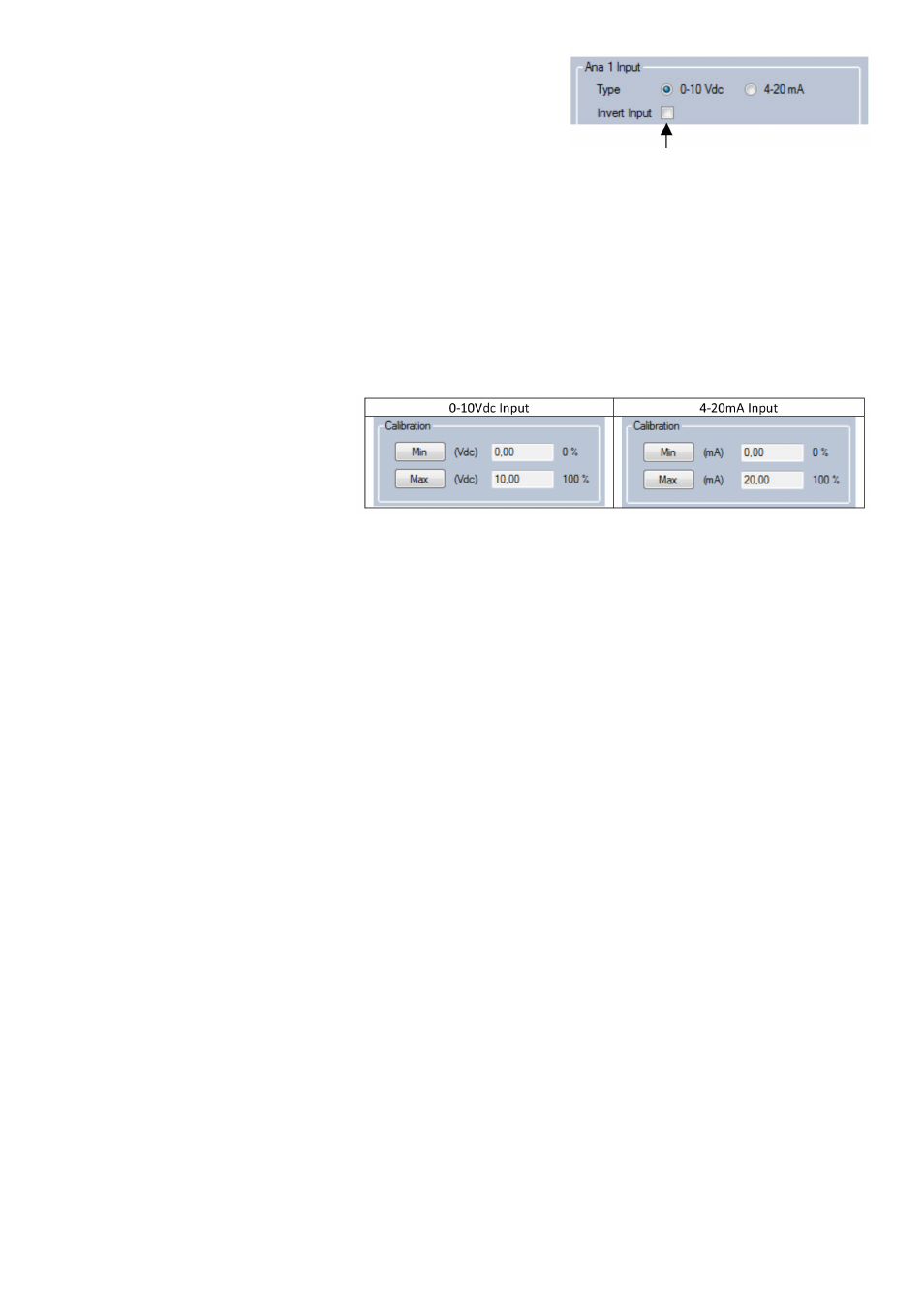

• Auxiliary Analog Input Type

Select between 0-10Vdc or 4-20mA

Note: Tick this box to invert the Analog Input

• Auxiliary sensor calibration

For a good behavior, it’s a mandatory to calibrate the voltage/current span of these inputs. Please follow the
below procedure to do so:

1) Put the Auxiliary sensor to Min, press Min on the software:
Min is learnt
2) Put the Auxiliary sensor to Max, press Max on the software:
Max is learnt
