• SD Card

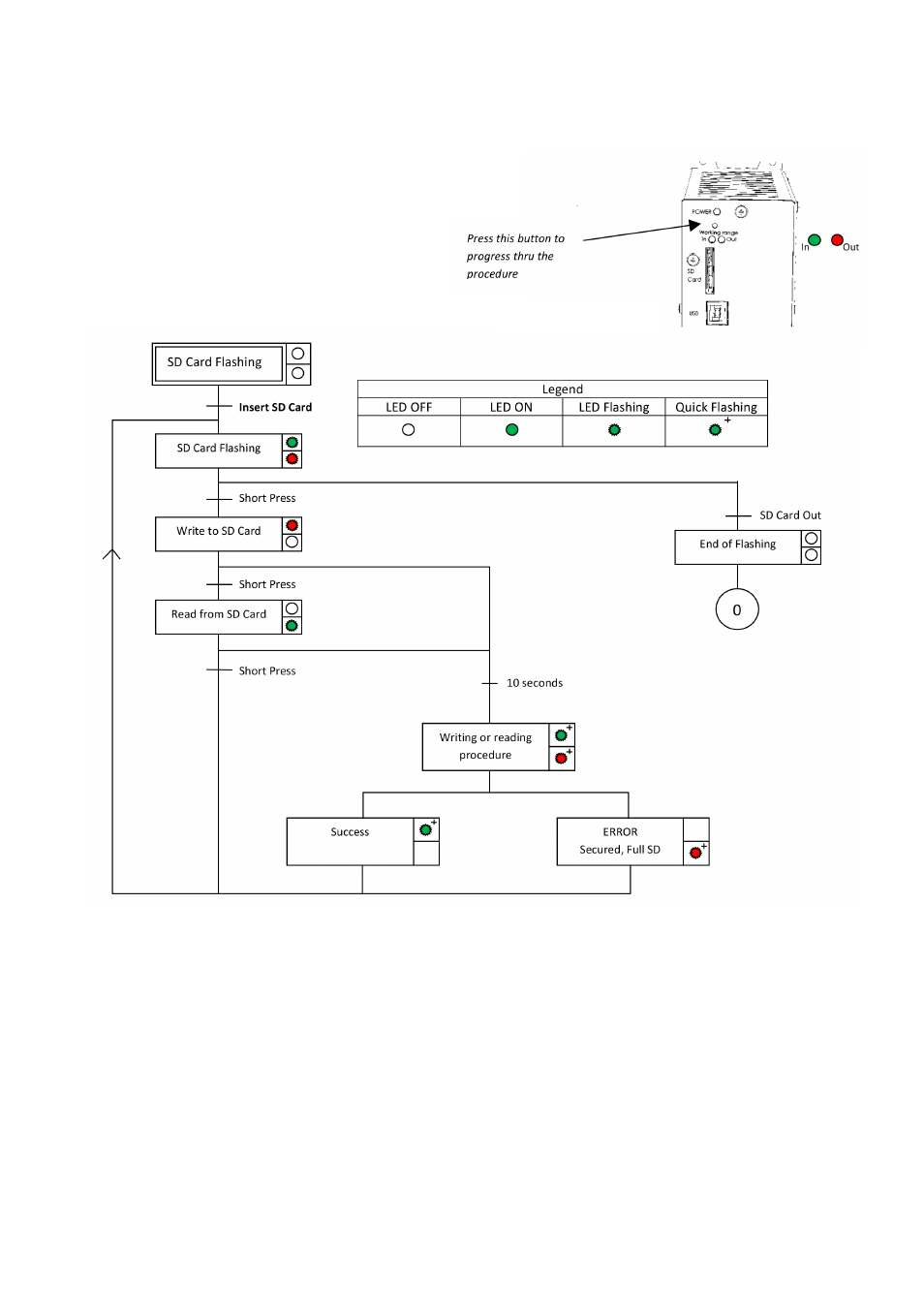

With an SD Card you can save all your partitions or write to the XCTRL from the SD Card. To write or save the
partitions follow the procedure below by using the button above the LED (In and Out).
The SD Card is not supplied with the XCTRL.
When reading from the SD Card, if only 1 partition has been saved on it, this one needs to have the number 0
and so named ‘PART_0.XML’. After having copied this first partition, the application is searching for the next
one. If none is found, the application is getting into Error.
When writing, if the SD Card is full or secured, then the application is going into error.
