• Hold Out / Max out
Some more configurations are available for the “Max out” and the “hold out” levels. “Max Out” allows you to
set up the max voltage or current delivered by the Outputs.

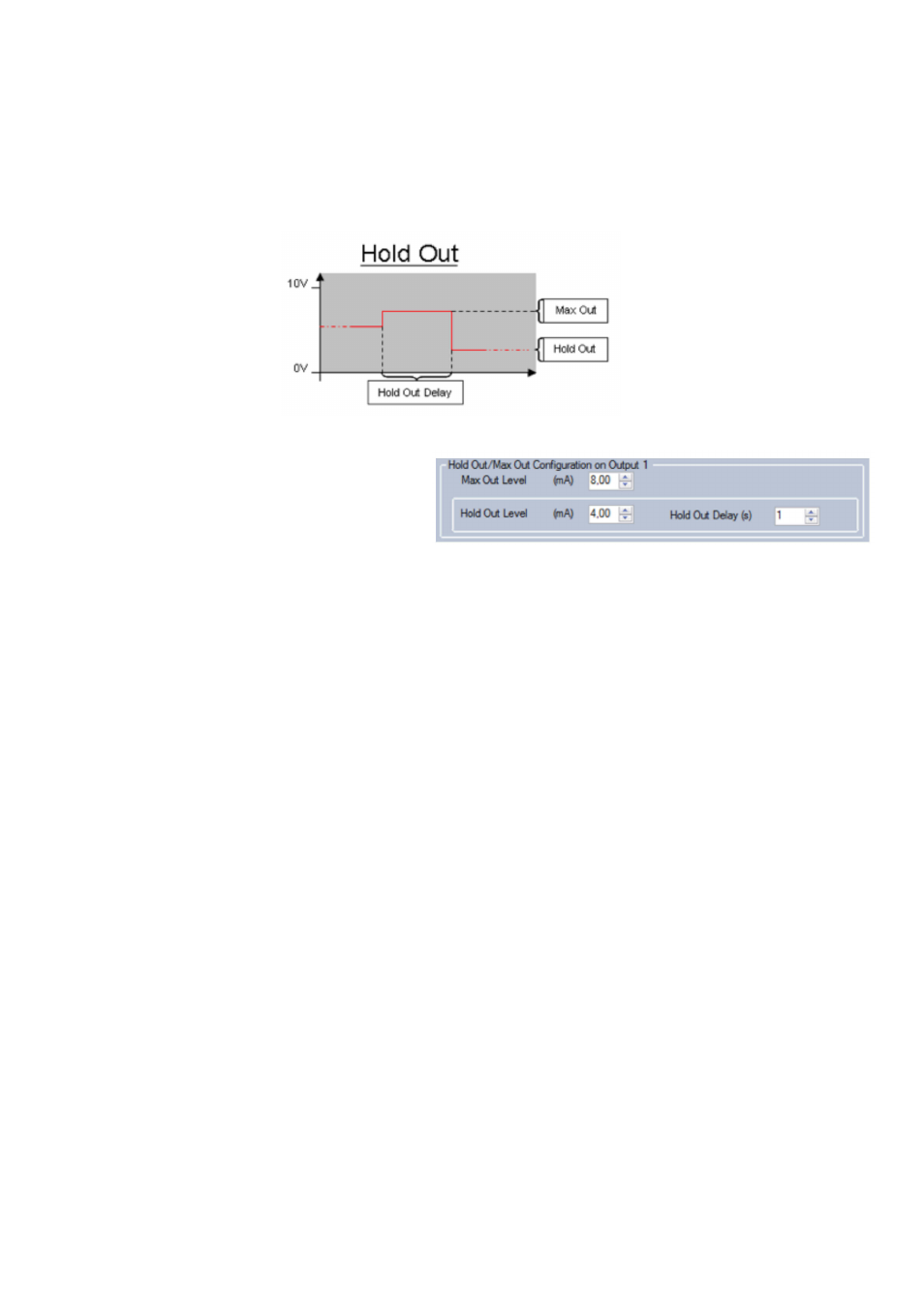

The “hold out” feature is a procedure which is commonly used to stop a roll after splicing. This procedure
applies the “Max out” level during a certain time and switches automatically to the “hold out” level when this
time is over. Both “hold out level” and “Hold out delay” can be set with the application.
How to setup a Hold out? :
1) Enter “Max Out” Level
2) Enter “Hold Out” Level
3) Enter “Hold Out Delay”: Out1/2 will
be set at “Max Out” Level during this
delay
