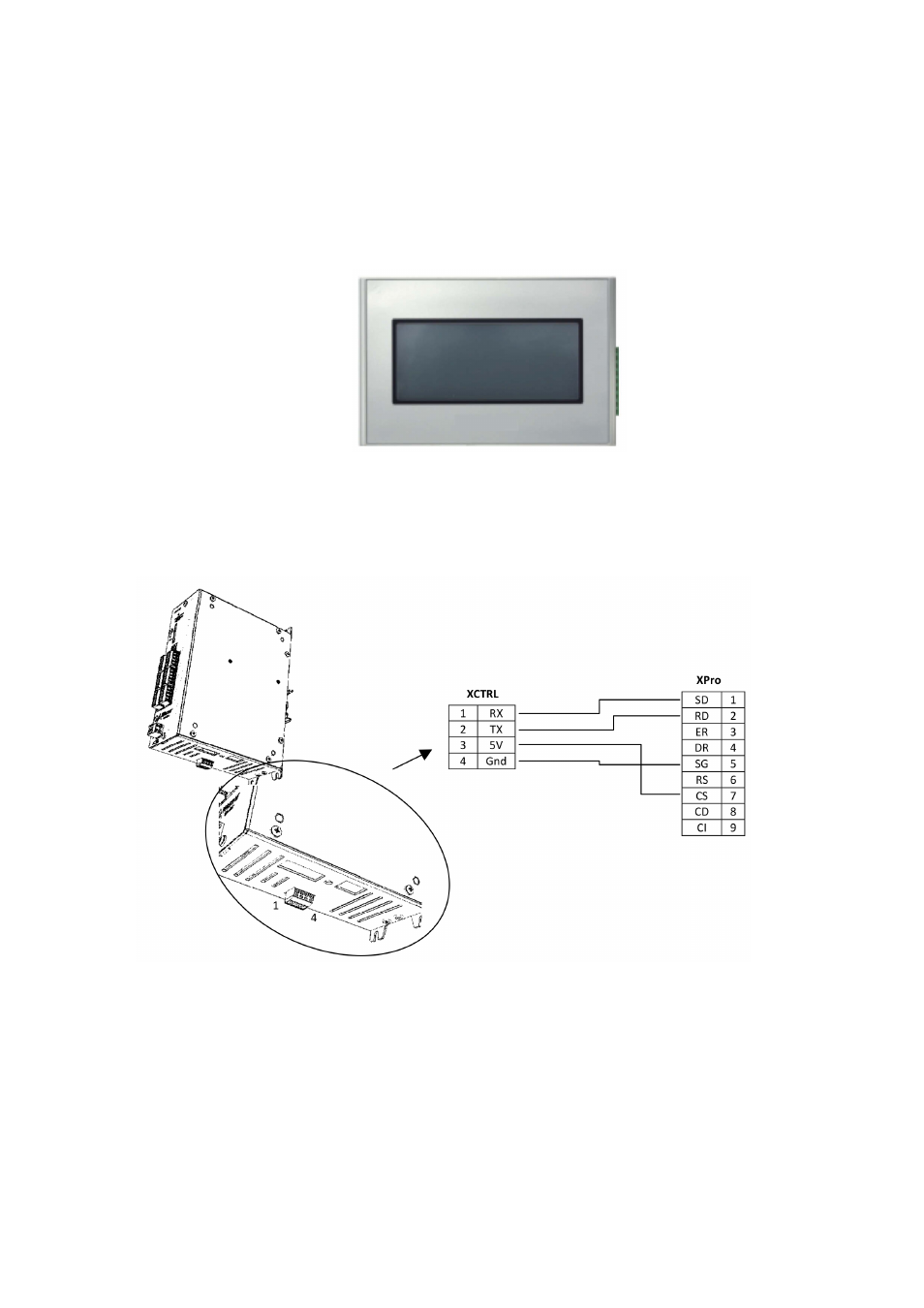

5. (Optional) Touch Screen Installation and Setting
The optional touch Screen (Xpro) allows you to modify the setpoint easily. It is generally necessary when
Load cells are used to change the tension while running.
It’s also offering to display some curves and values in real time.
If customer wants to use its own screen, a set of control code is described in the application note AN_
XPRO_SetOfCommand.pdf.
a. Wiring the XPro Interface to the XCTRL
