CATC CATC Inspector User’s Manual Version 2.31
58
4.15 The I/O Operation Pop-Up Menu

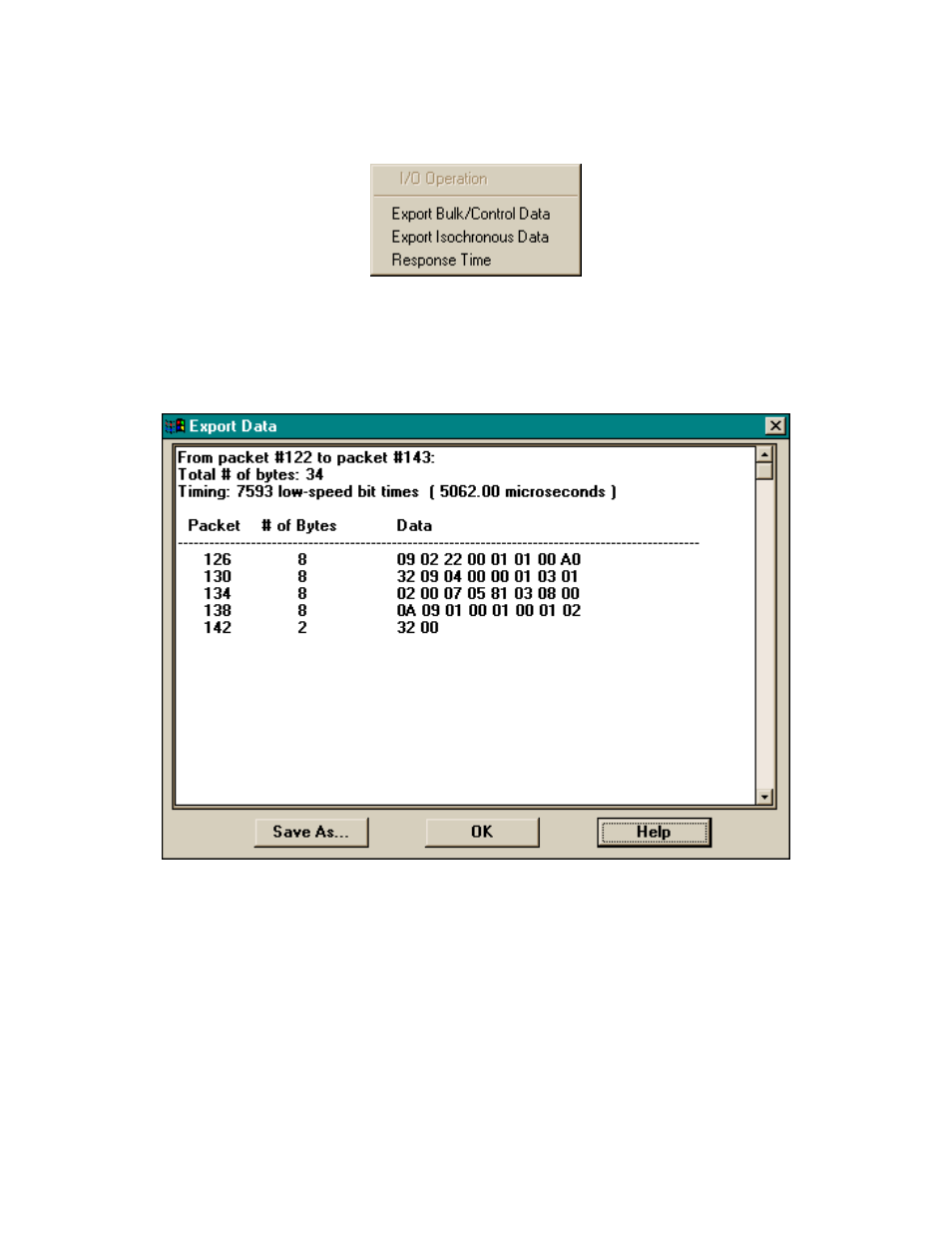

Clicking on the title of any IN or OUT field will bring up the following menu:
The “Export Bulk/Control Data” and “Export Isochronous Data” menu items are intended for the
output of data to a file. The analyzer is not able to determine with certainty the type of data
transfer involved, so uses the user’s specification of the associated transfer type (bulk/control or
isochronous) to guide its “best effort” attempt to isolate the chosen data transfer. Any NAKed
data is not included. The collected data is first displayed in a form such as the following:
The extracted data can now be saved (with the “Save As...” button) for future use. See “Saving
Summaries as Text Files”, above.
