CATC CATC Inspector User’s Manual Version 2.31
54
4.9.4.4 Find ADDR and ENDP

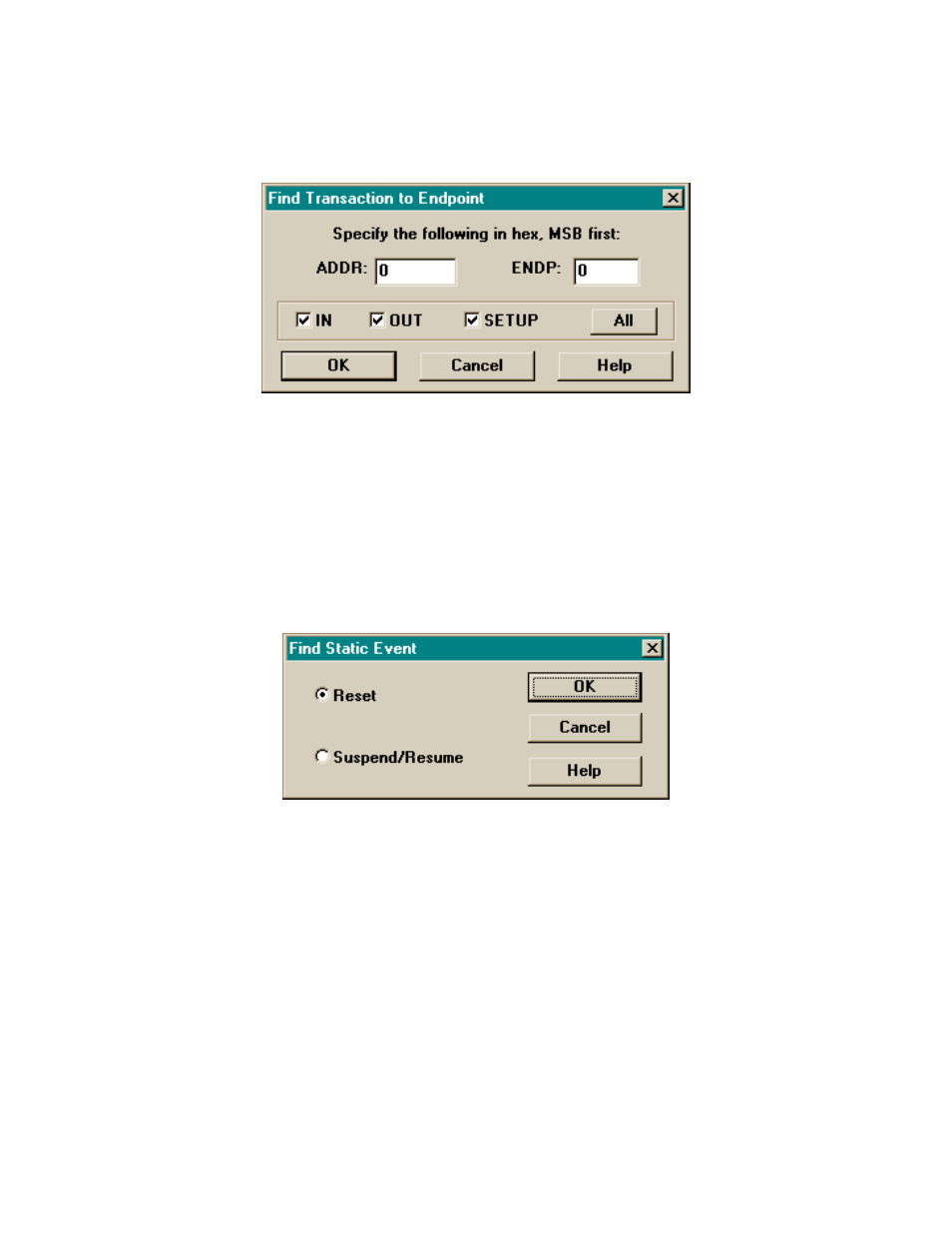

Selecting the ADDR and ENDP button brings up the following dialog box, to allow selection of
a specific device address and endpoint:
The search can be restricted to any combination of In, Out, and Setup packets by marking the
appropriate checkboxes. Selecting the “OK” button will then launch the search for a packet with
the selected device address and endpoint, using the search direction, origin, and scope previously
specified.
4.9.4.5 Find Static Bus Event
The Static Bus Event button is only enabled when the traffic file was recorded with Idle state; it
permits searching for the static bus events Reset and Suspend/Resume. Selecting this button
brings up the following dialog box, to allow specification of a particular event:
Selecting the “OK” button will then launch the search for a packet with the specified static bus
event, using the search direction, origin, and scope previously specified.
