4.12 The Data Field View Pop-Up Menu

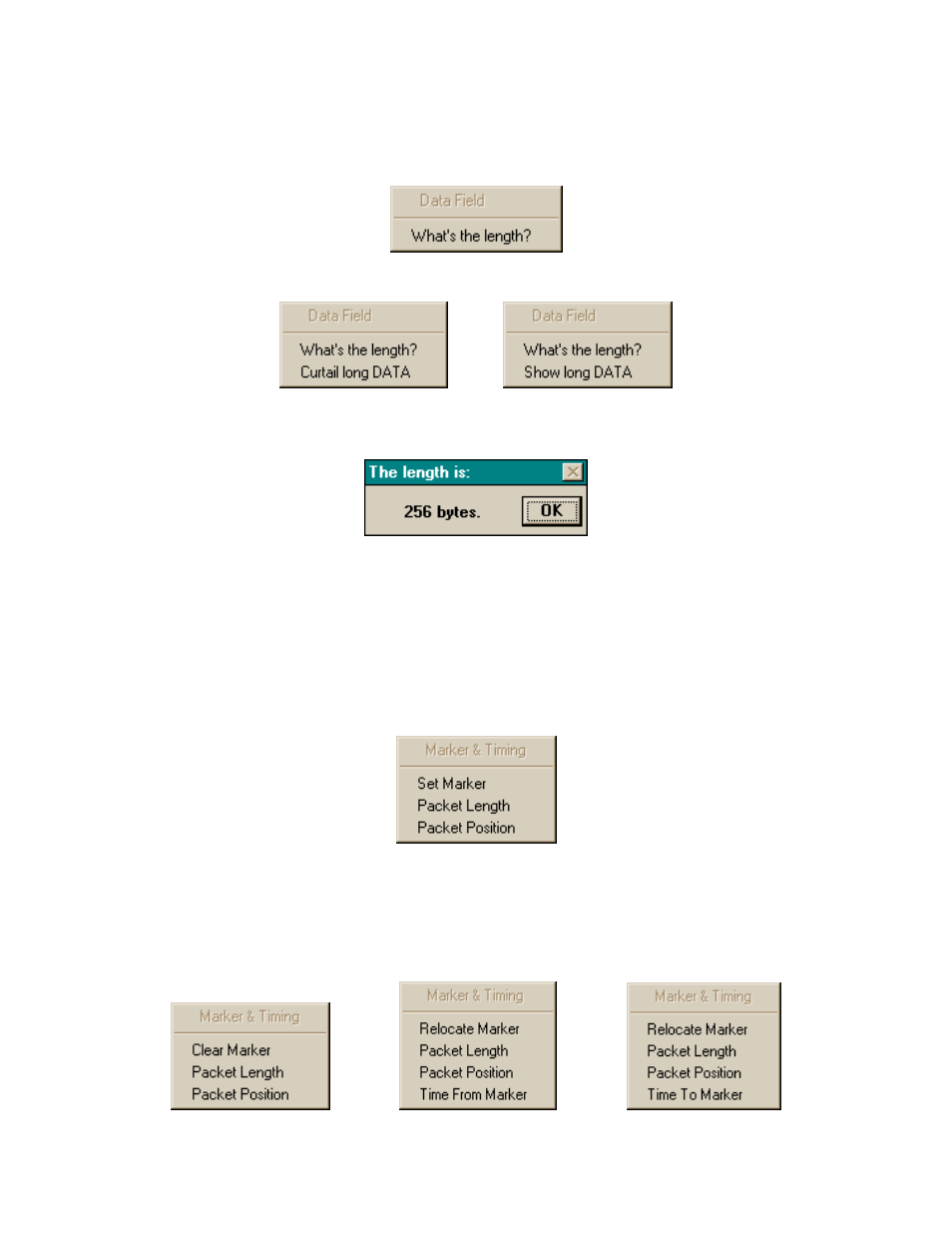

Clicking on the title of any DATA field will bring up the following Data Field menu for short
data fields:
or one of the following menus for data fields containing more than 16 bytes:
Selecting the single “What’s the length?” menu item will display the length of the associated data
field, using the following display box:
The second menu item enables toggling of the current data display format, between full and
curtailed display modes, as previously described under Field Formats. When invoked by the pop-
up menu, the display change will take place immediately.
4.13 The Packet Marker & Timing Pop-Up Menus
Clicking on the “Packet #” title of any packet display will bring up the following menu (files
recorded without Idle state will not show the timing-related items):
The first menu item is associated with the concept of “marking” a particular packet in the traffic
data file (only one packet can be marked at any given time). This marked packet (displayed with
a distinctive red outline) can be the target of a Search operation (see above), and also a point of
reference for timing measurements. If any packet is marked, subsequent invocation of this pop-up
menu will produce one of the following displays:
