CATC CATC Inspector User’s Manual Version 2.31
26

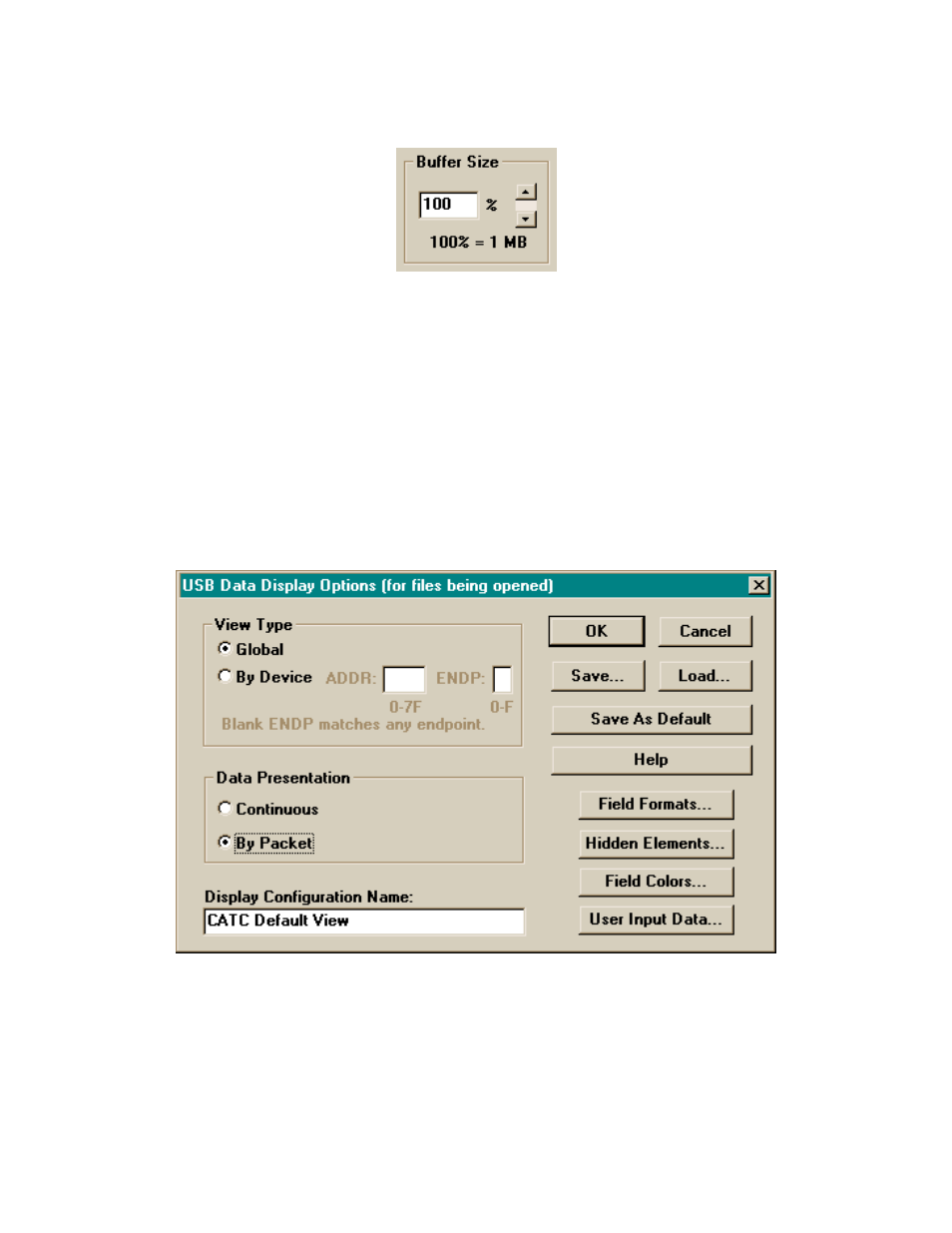

captured data). The “Buffer Size” panel of the Data Recording Options dialog box allows
selection of the desired portion (from 10% to 100%) of the buffer memory.
Note: This option has no effect when an Event Trigger is selected, in which case the entire buffer
memory is used.
4.4.2 Display Options...
The “Display Options...” menu item allows customization of the way that the recorded USB
traffic data files are presented on the screen. The USB Data Display Options dialog box includes
control buttons for the selection of data presentation and screen formatting options, plus the
ability to save and restore custom display option configurations. The Inspector software will
display the recorded data as specified, highlighting any packet fields that violate USB
specifications (e.g., missing stuff bits, invalid PID type, bad CRC, etc.).
Once the desired options are established (by selecting the OK button), they will remain valid
until the Display Options function (which can also be invoked from the Add View function in the
Display menu) is used again.
Note: Selecting the “OK” button to confirm the display options selection does not change the
current data view. Only newly created views are affected.
