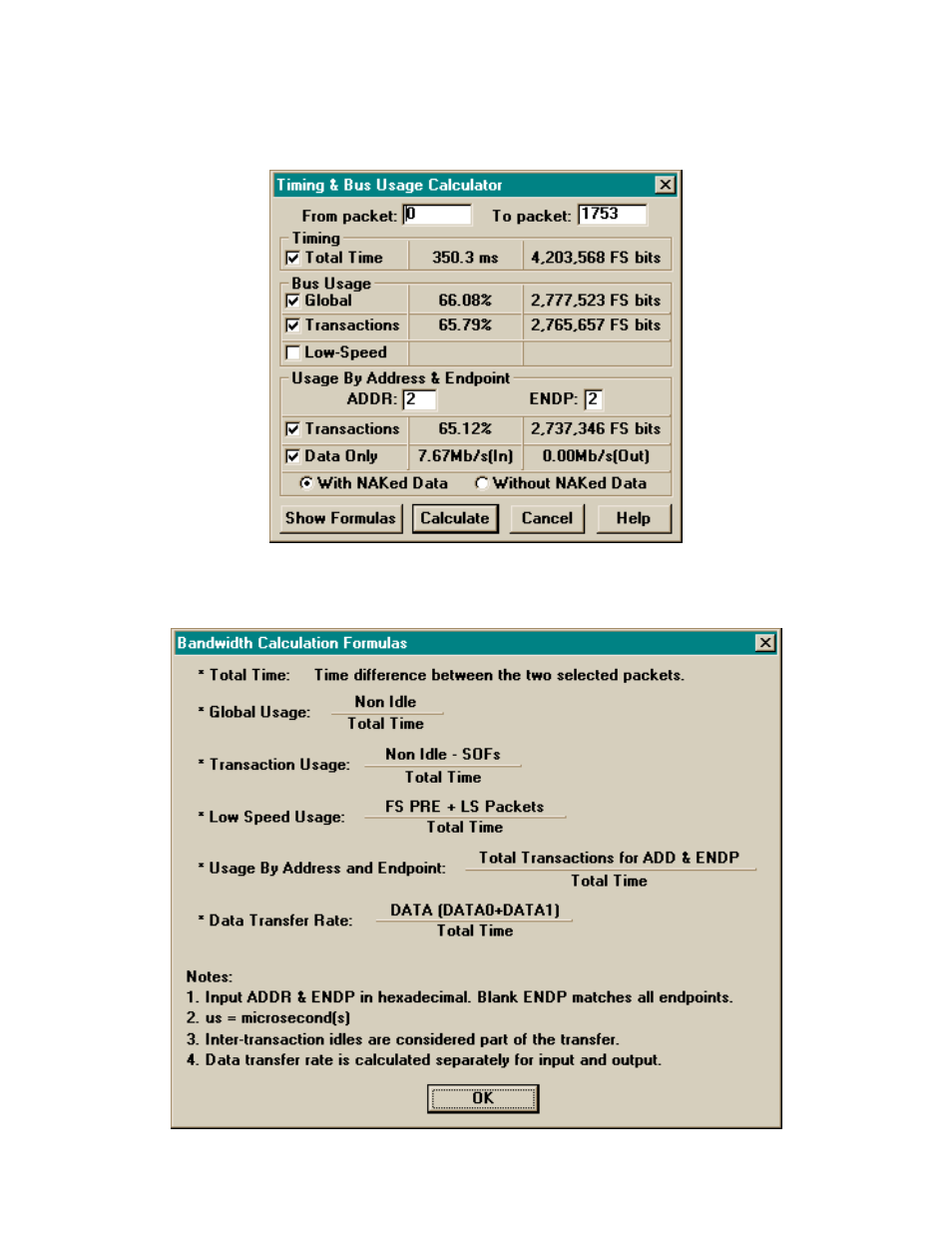

The following example shows such a display for a data capture of USB traffic, using isochronous
data transfers (the nature of the device—a camera—accounts for the high percentage of bus
utilization):
Selecting the “Show Formulas” button presents the following display, summarizing the formulas
used to compute bandwidth utilization.
