Getting Started Manual
WJ-A-GS-E Rev A
51

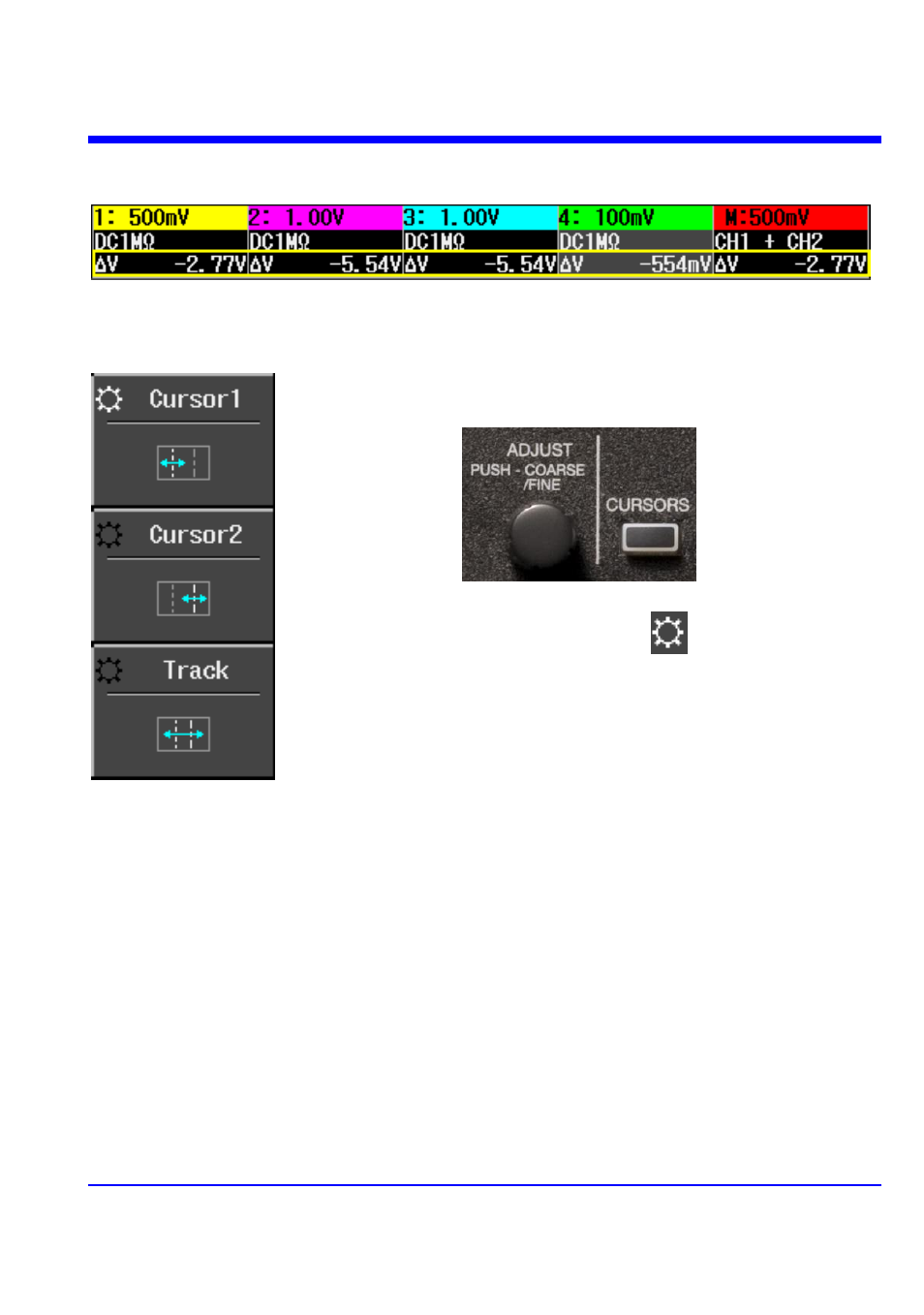

Amplitude cursor values are displayed in the bottom line of the trace label for each
channel:
Note that the value depends on the time/div setting shown in the top line of each trace
label.
Cursor Placement
Use the A DJUST knob to move cursors horizontally and
vertically.
The cursor selected for placement is indicated by a
highlighted fine grain icon in the menu and the cursor
itself has a higher brightness in the grid.
If Track is selected, both cursors move in unison and both
appear brighter in the grid.
