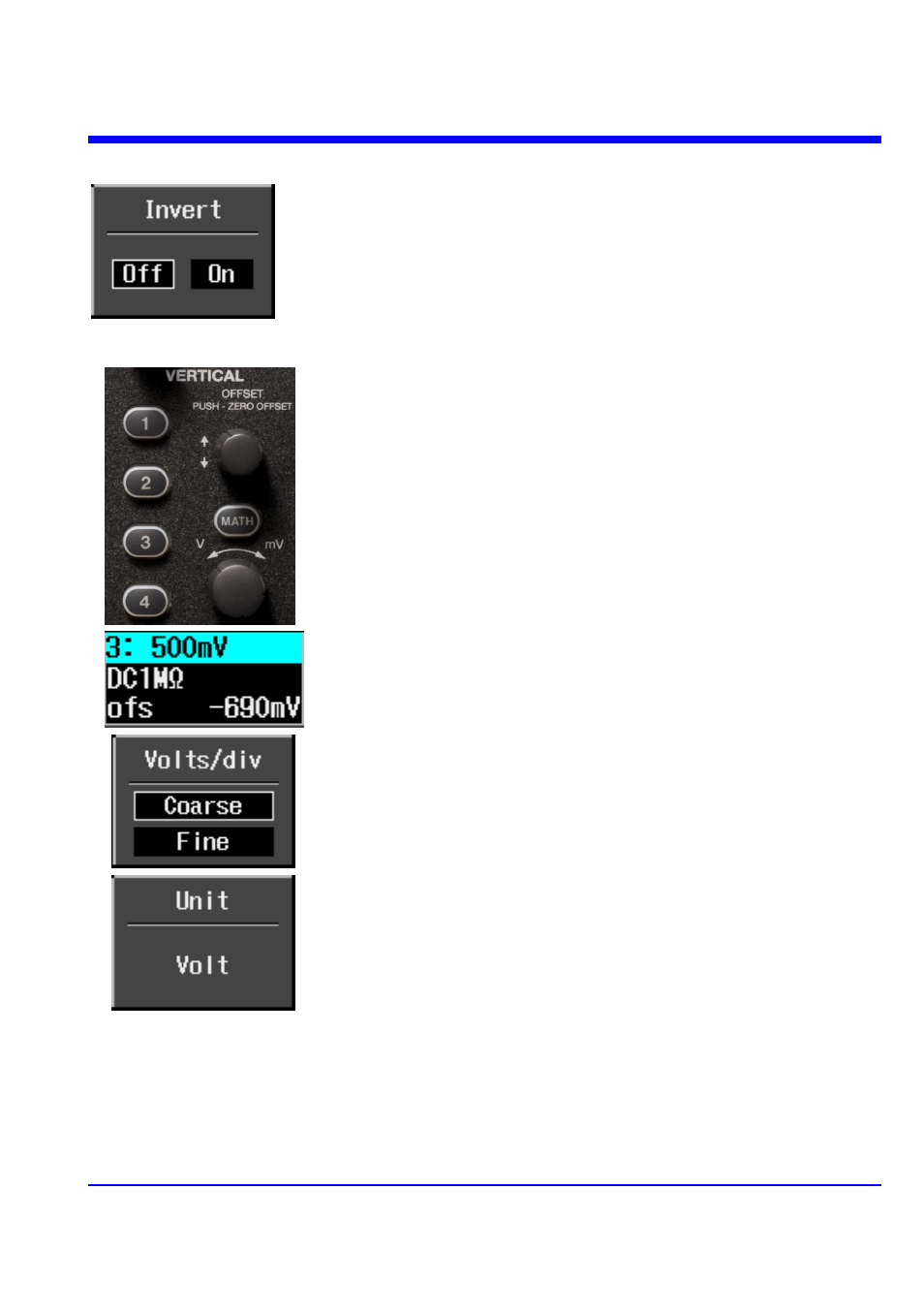

Inverting Waveforms

Set this item to On to invert the waveform.

Adjusting Sensitivity

Activate the channel you want to adjust; there does not
need to be a signal applied. Turn the volts per division
knob in the VERTICAL group of controls.

The volts/div that you set is displayed in the top line of the
trace descriptor label.

This menu selection sets the grain of the volts/div knob.
Coarse sets the gain adjustment to 1-2-5 increments. Fine
sets the gain to as small as 2-mV increments.

The “Unit” menu offers a choice of Volts, Amperes,
Watts, Degrees C, or No Units.
