WaveJet 300A Series

WJ-A-GS-E Rev A

VERTICAL SETTINGS AND CHANNEL CONTROLS

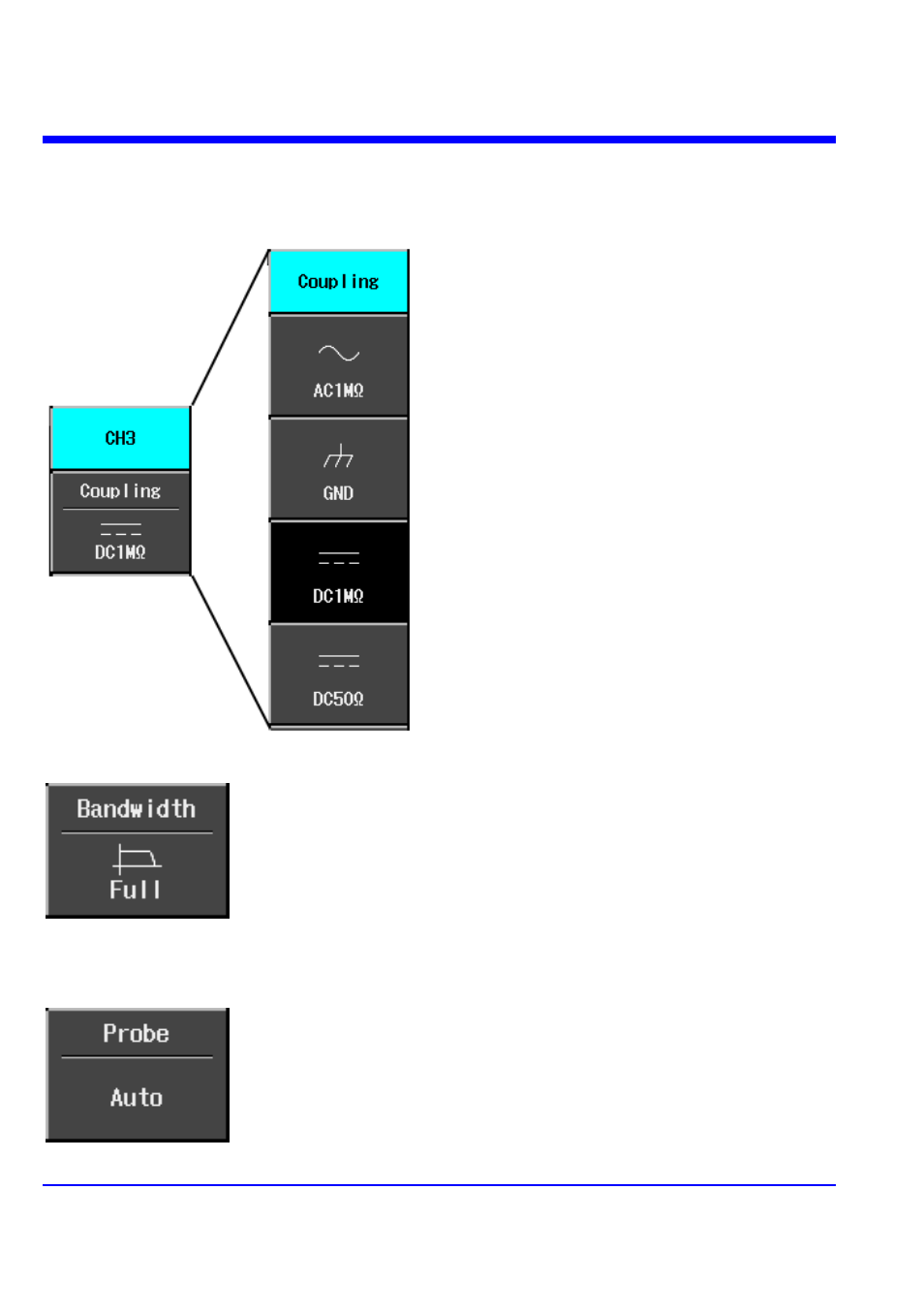

Choosing Coupling

To select an input coupling mode, turn on
the channel whose coupling you want to
change by pressing the appropriate
channel button. Select Coupling from
page 1/2 of the channel menu, then the
coupling mode from the next menu.

Bandwidth Limiting

Reducing the bandwidth reduces the signal and system
noise, and prevents high frequency aliasing.

The choices of bandwidths are



Full



100 MHz



20 MHz

Probe Attenuation

The WaveJet Series scope offers a wide variety of probe
attenuations:

1:1

1000:1

10:1

2000:1

100:1

Auto
