TRIGGERING
Trigger Types

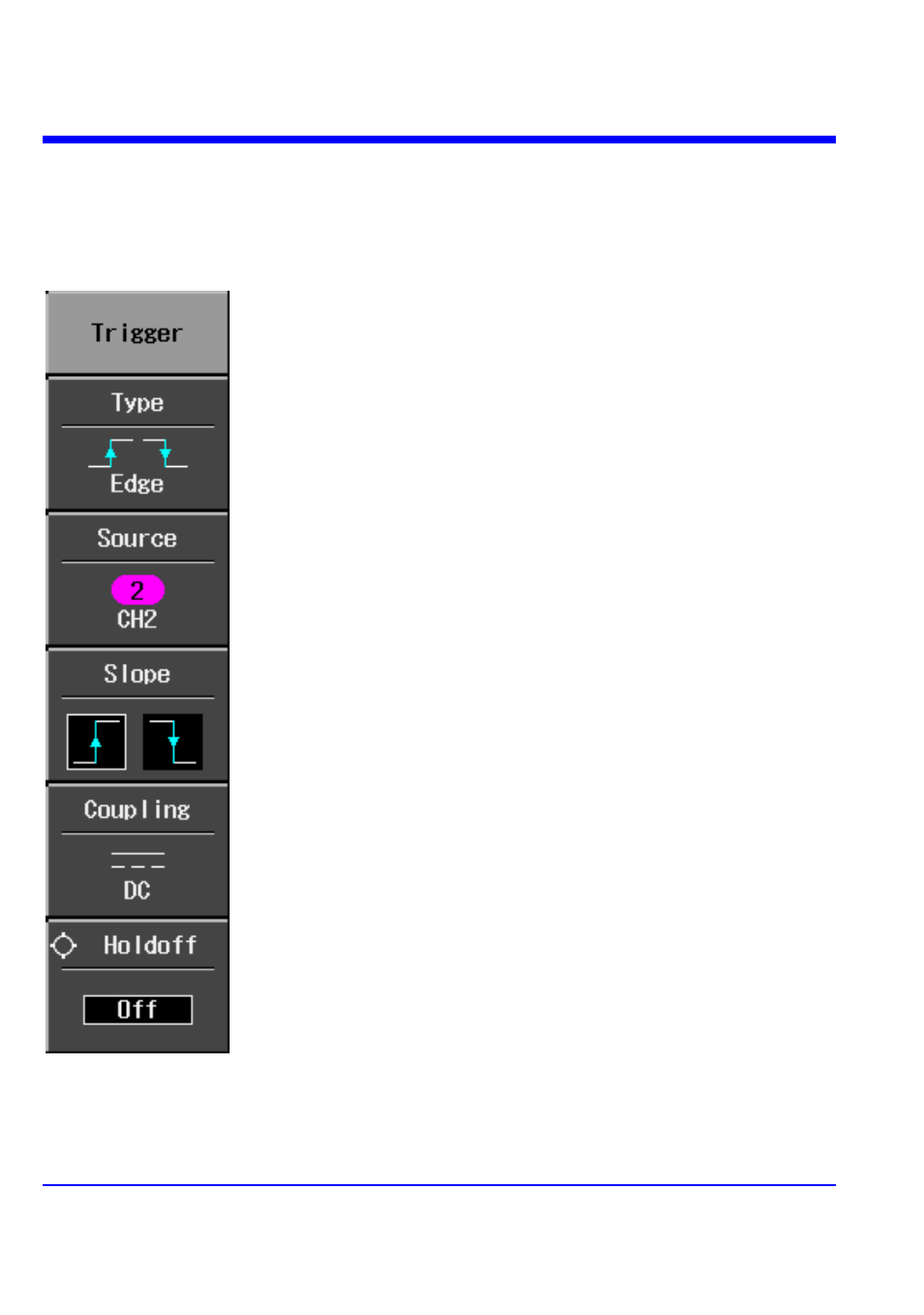

Trigger modes are accessed by pressing the S ETUP button in the TRIGGER control
group of buttons and selecting Type from the
“Trigger” menu:
Press the Type menu button to select Edge, Pulse Width,
Period, Pulse Count, or TV triggering.
Source lets you choose a channel input or an external input.
Use Slope to select a positive or negative edge for edge
triggering. This menu item becomes Polarity for the Pulse
Width trigger.
Coupling modes comprise AC, DC, HF Reject, and LF
Reject
Use the A DJUST knob to dial in a Holdoff value in units of
time.
