WaveJet 300A Series

WJ-A-GS-E Rev A

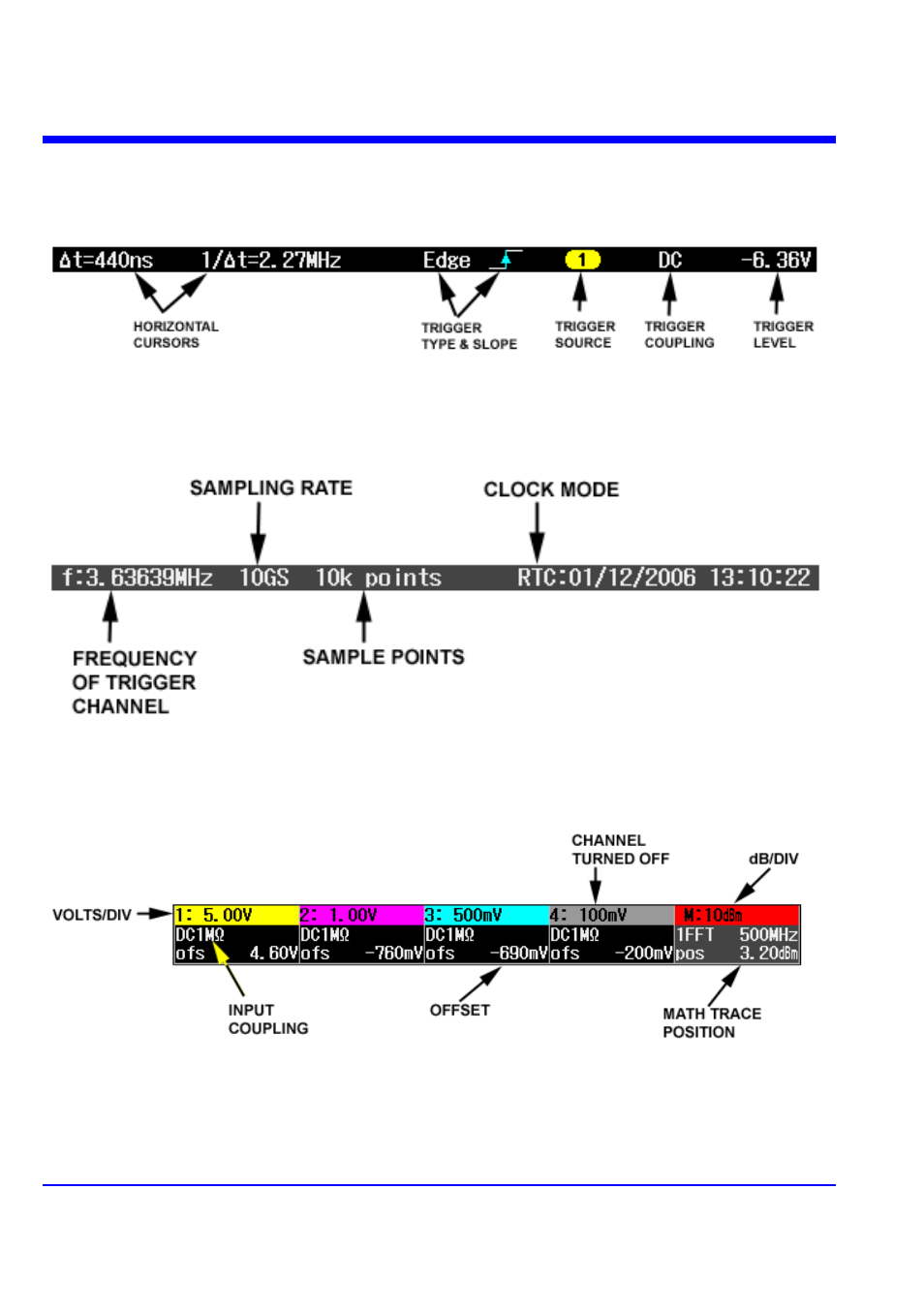

Bottom Status Bar

The status bar below the grid displays cursor (time and frequency) information and
additional trigger setup information.

Message Line

At the very bottom of the scope display is the message line. Prompts and error
messages are displayed on this line at far left. In addition, the following information is
displayed:

The clock mode can be either real time clock (RTC) or trigger time stamp (TRG).

Trace Descriptors

Channel and math trace descriptor labels are displayed below the grid.
