WaveJet 300A Series

WJ-A-GS-E Rev A

WAVEFORM MEASUREMENTS

Measuring with Cursors

Cursors are important tools that aid you in measuring signal values. Cursors are
boundary markers that you can move across the grid. Use cursors to make fast,
accurate measurements and to eliminate guesswork.

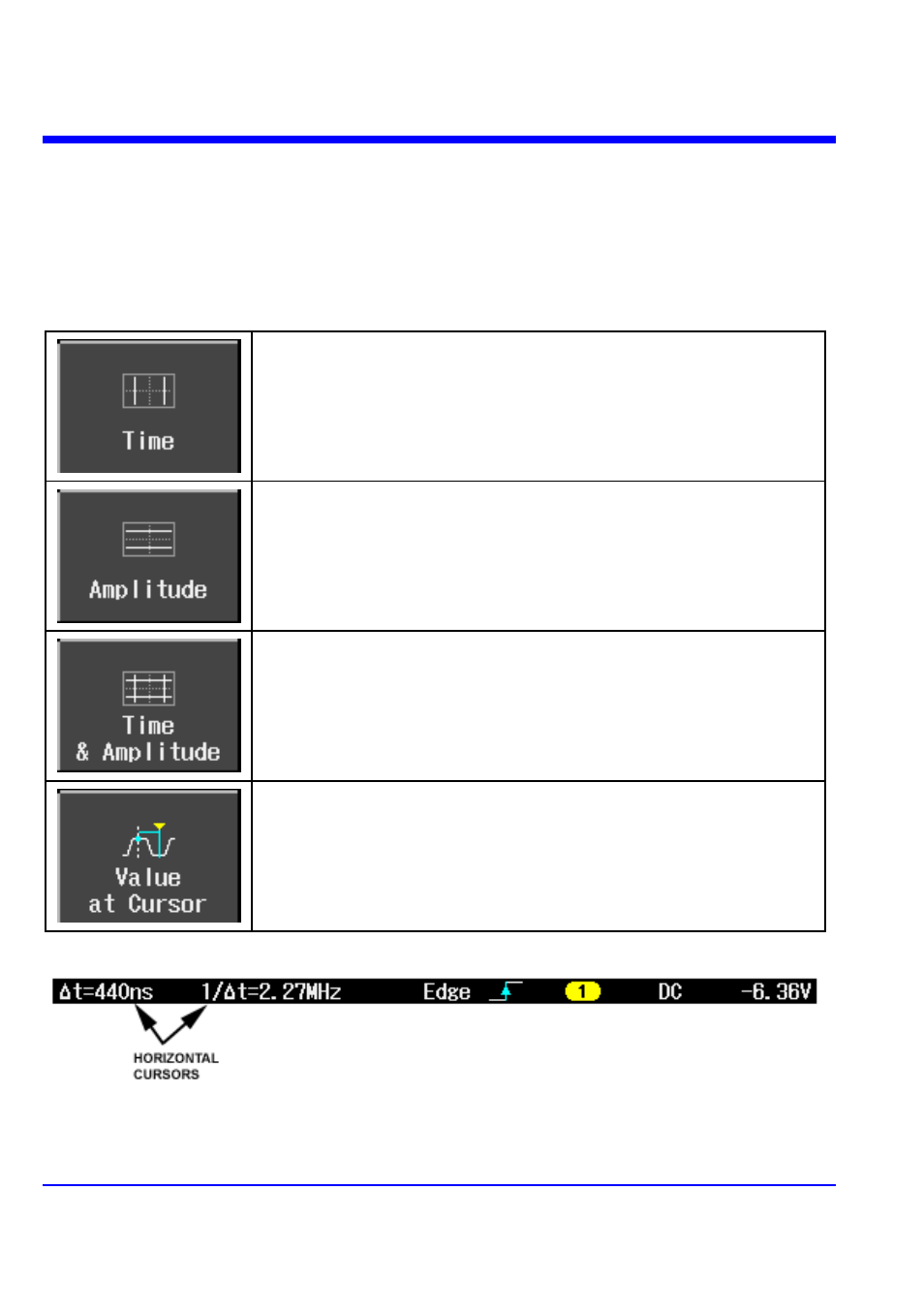

Cursor Measurement Selections

Time cursors are vertical lines that you move horizontally to
measure the difference in time or frequency values between
the cursors.

Amplitude cursors measure the difference in Y values between
the cursors.

You can display both time and amplitude measurements
together in this mode.

Gives the x value at a single point on your waveform.

Time values are displayed below the grid:
