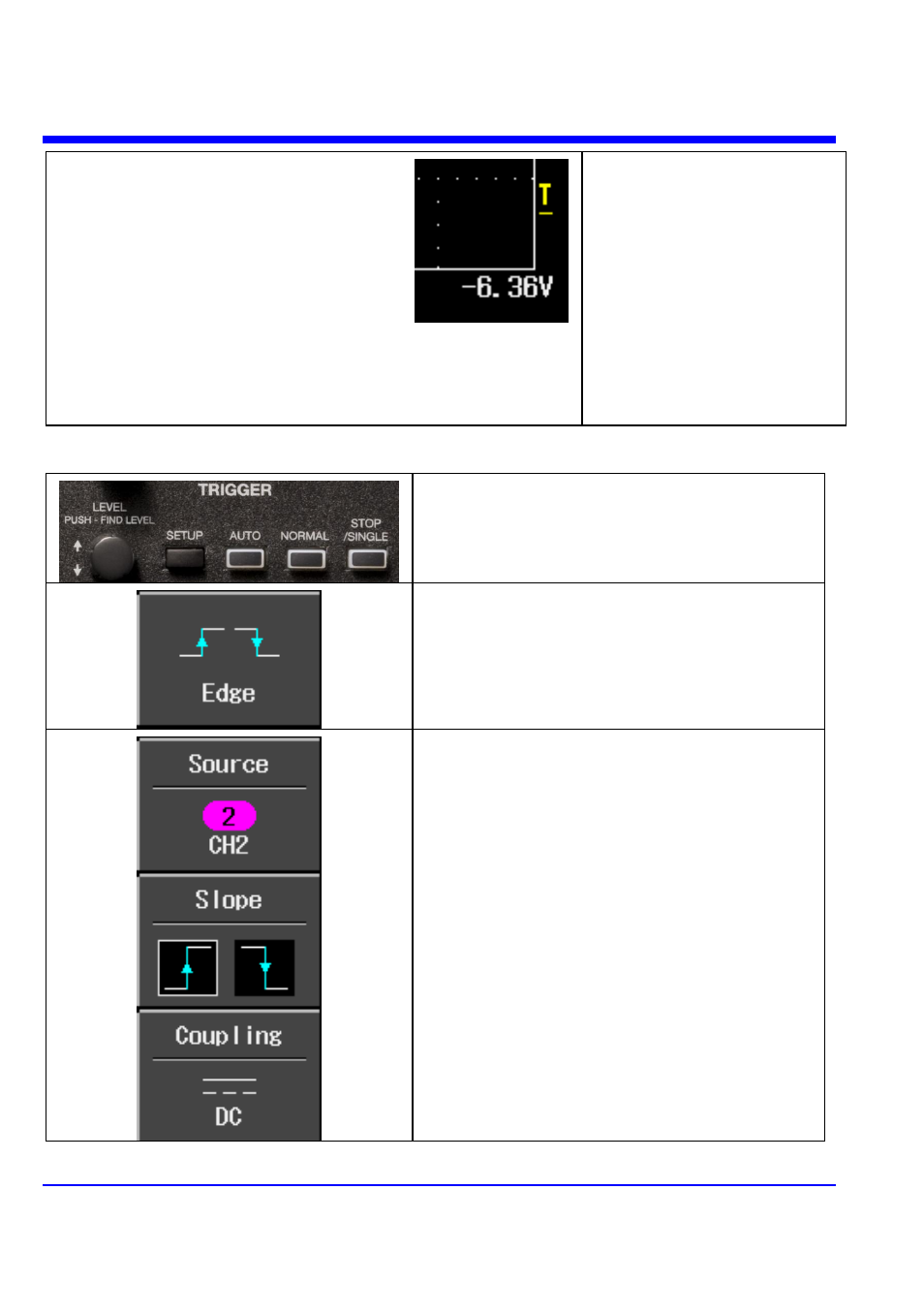

The trigger level is
indicated by a “T” to the
right of the grid. The
value is given below the
grid
A “T” with an underscore,
as shown here, indicates
a negative voltage level.
A “T” with a superscore
(overbar) indicates a
positive voltage level.
To Set Up an Edge Trigger
1. Press the front panel trigger S ETUP
button.
2. Select Type
from the “Trigger”
menu, then Edge.
3. Select a trigger source, positive or
negative slope, and trigger coupling
mode (AC. DC, HF Reject, or LF
Reject).
