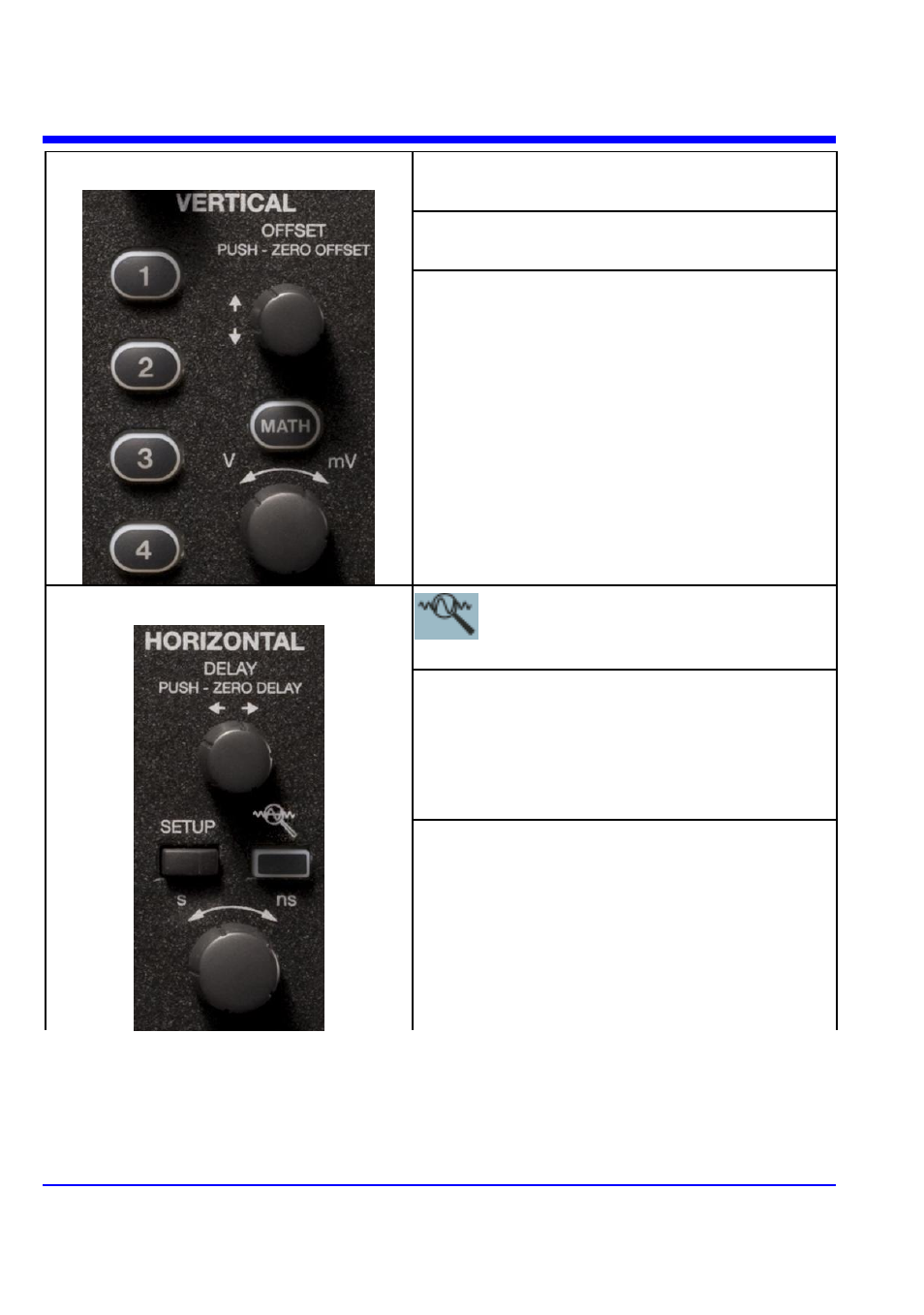

Vertical Controls O
FFSET -- Adjusts the vertical offset of each
channel individually.
V
OLTS
/D
IV -- Adjusts the volts/division setting
(vertical gain) of the channel selected.
C HANNEL B UTTONS -- If the channel is already
ON, the channel button makes the channel
active.
If the channel is OFF, the channel button
turns the channel ON.
When the channel is active, the channel
button is lit, and the O
FFSET and V OLTS /D IV
knobs are dedicated to that channel.
Zoom Control Knobs
Q UICK Z OOM -- Automatically displays
magnified views of up to four signal inputs.
Horizontal Delay -- In zoom mode, this knob
adjusts the horizontal position of a zoom trace
on the display. The zoom region is highlighted
on the source trace between vertical markers.
Unlike Delay, the position is not calibrated to
the trigger position.
Time/Division -- In zoom mode, this knob
adjusts the horizontal zoom (magnification
factor) of the selected zoom trace.
