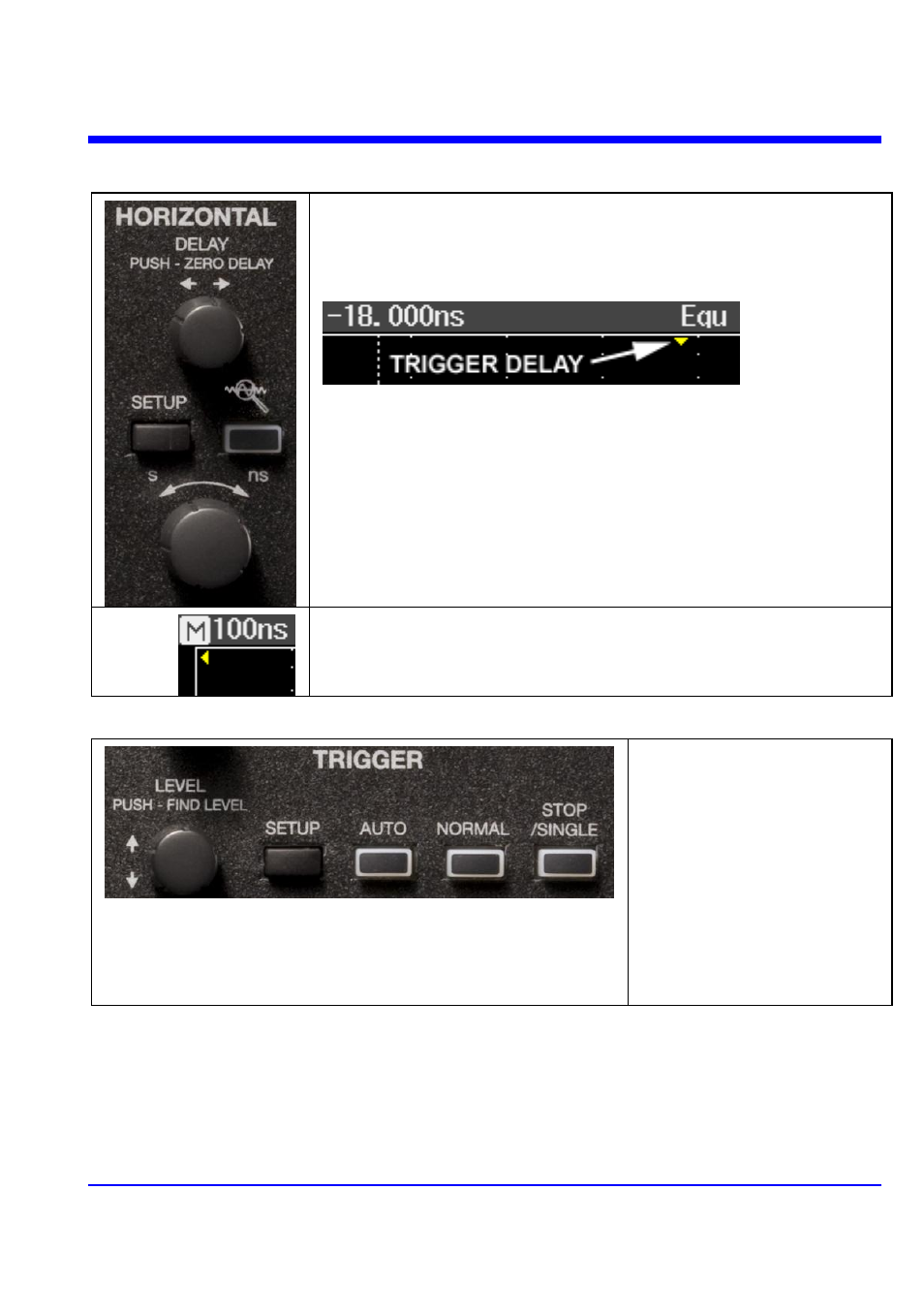

Horizontal Trigger Setup
Turn the D ELAY knob in the HORIZONTAL control group to
adjust the trigger's horizontal position. The trigger location is
shown by a marker at the top of the grid and the time value is
given in the status bar above the grid:
Post-trigger delay is indicated by a left-pointing arrow at the
left edge of the grid.
Vertical
Turn the L EVEL knob in
the TRIGGER control
group to adjust the
vertical threshold of the
trigger or the highlighted
trace. Level defines the
source voltage at which
the trigger will generate
an event: a change in the
input signal that satisfies
the trigger conditions.
