Page 42: Sampling modes, Timebase setup

Getting Started Manual

WJ-A-GS-E Rev A

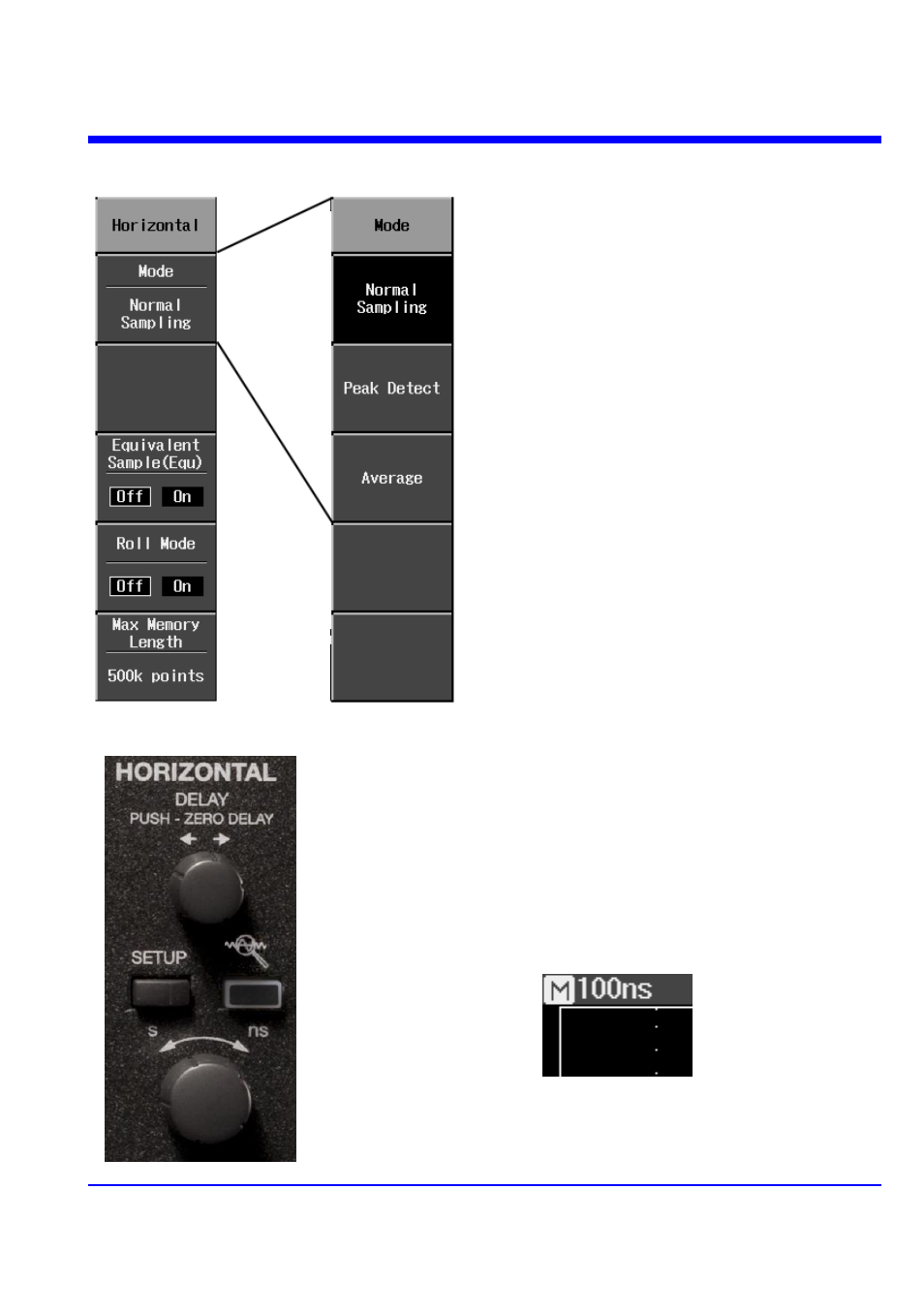

SAMPLING MODES

Sampling modes are accessed by
pressing the S

ETUP

button in the

HORIZONTAL control group.

There are three basic sampling modes:



Normal -- real-time mode



Peak Detect -- the maximum and

minimum values that occur in a zone
twice the sampling period are detected.



Average -- up to 256 waveforms

In addition, two other sampling modes are
available:



Equivalent Sampling Mode -- random

interleaved sampling (RIS) mode



Roll mode -- for slow acquisitions

TIMEBASE SETUP

You can change the timebase at any time without
displaying the “Horizontal” setup menu.

As you turn the time/div knob in the HORIZONTAL
control group, the value is displayed at the top-left of the
screen:
