TURNING ON TRACES

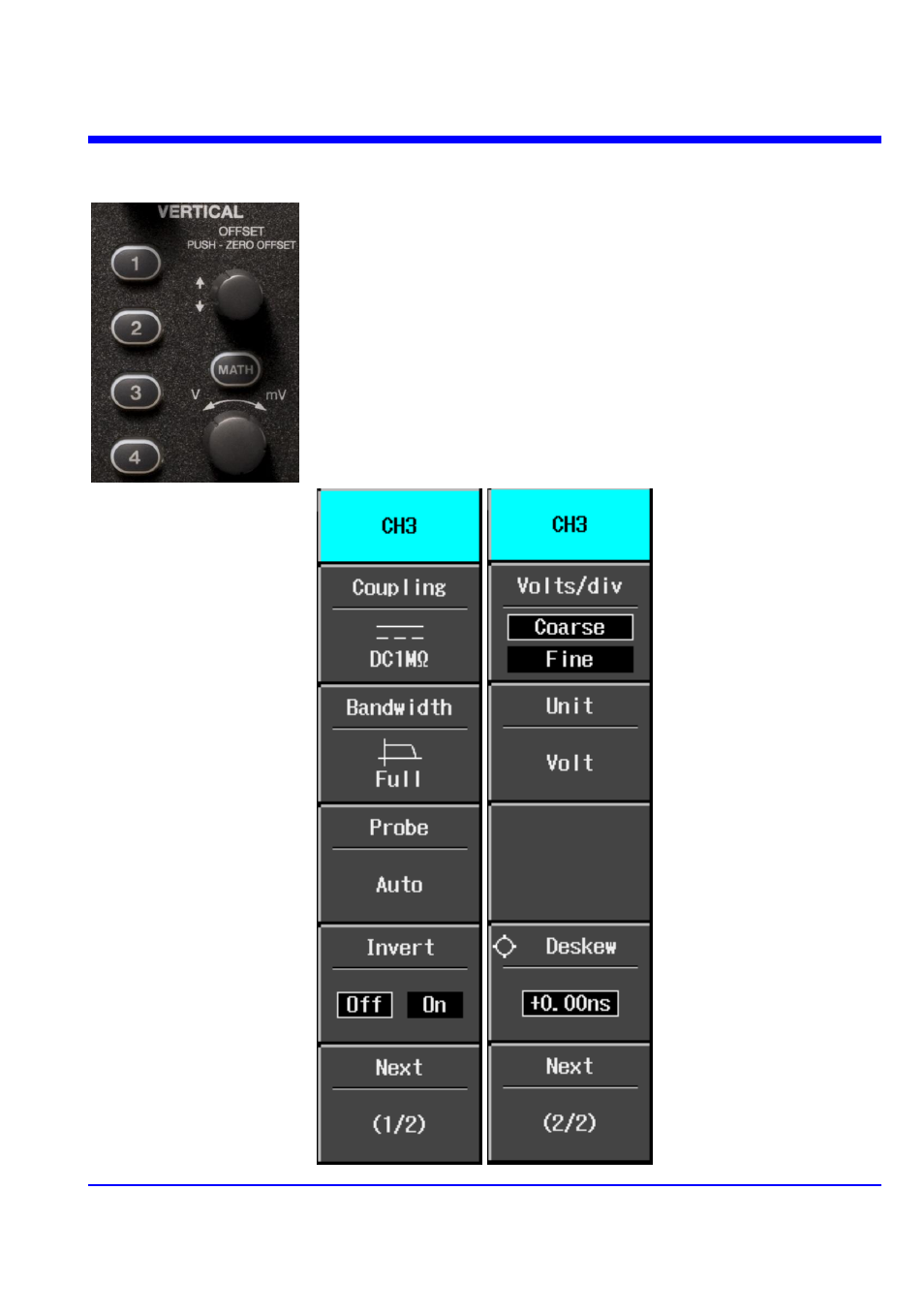

To turn on a channel trace, simply press the channel button.
This action also displays a setup menu for that channel. The
setup menu displayed (1/2 or 2/2) will be the one that was
displayed when the trace was last turned on.

To turn a trace off, press the button again. The setup menu,
however, will continue to be displayed until you press C

LOSE

or open another menu.
