WaveJet 300A Series
32
WJ-A-GS-E Rev A
R EF -- Enables you to save up to five
waveforms in internal scope memory. You can
also recall waveforms.
S AVE /R ECALL -- This button enables you to
save or recall scope setups and waveforms
from internal scope memory or from USB
memory. It is also used to recall a default
scope setup, which turns on all channels and
sets the vertical gain to 100 mV/div.
D ISPLAY -- Allows you to set grid and
waveform display styles, and persistence.
M ATH -- Displays a setup menu for math
functions.

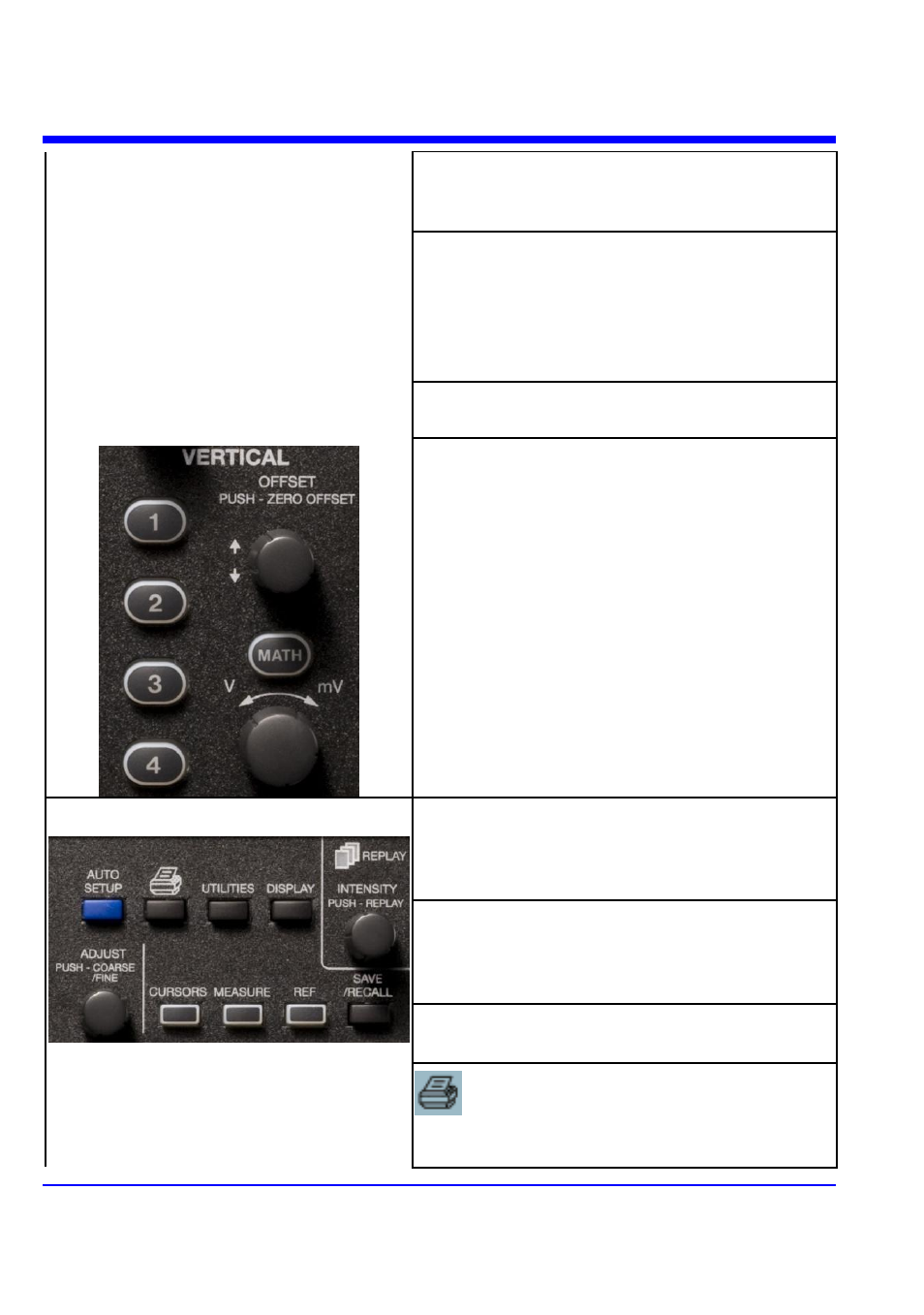

General Control Buttons H ELP -- Displays context-sensitive on-line
Help. Press H ELP then another front panel
button; information will be displayed about the
functioning of that button.
A UTO S ETUP -- Automatically sets the scope's
horizontal timebase (acquisition system),
vertical gain and offset, as well as trigger
conditions, to display your signal.
U
TILITIES -- This button displays a menu of
configurable scope features.
Print Screen -- Prints the displayed
screen to a USB memory device or connected
PictBridge® printer.
