Aux Output

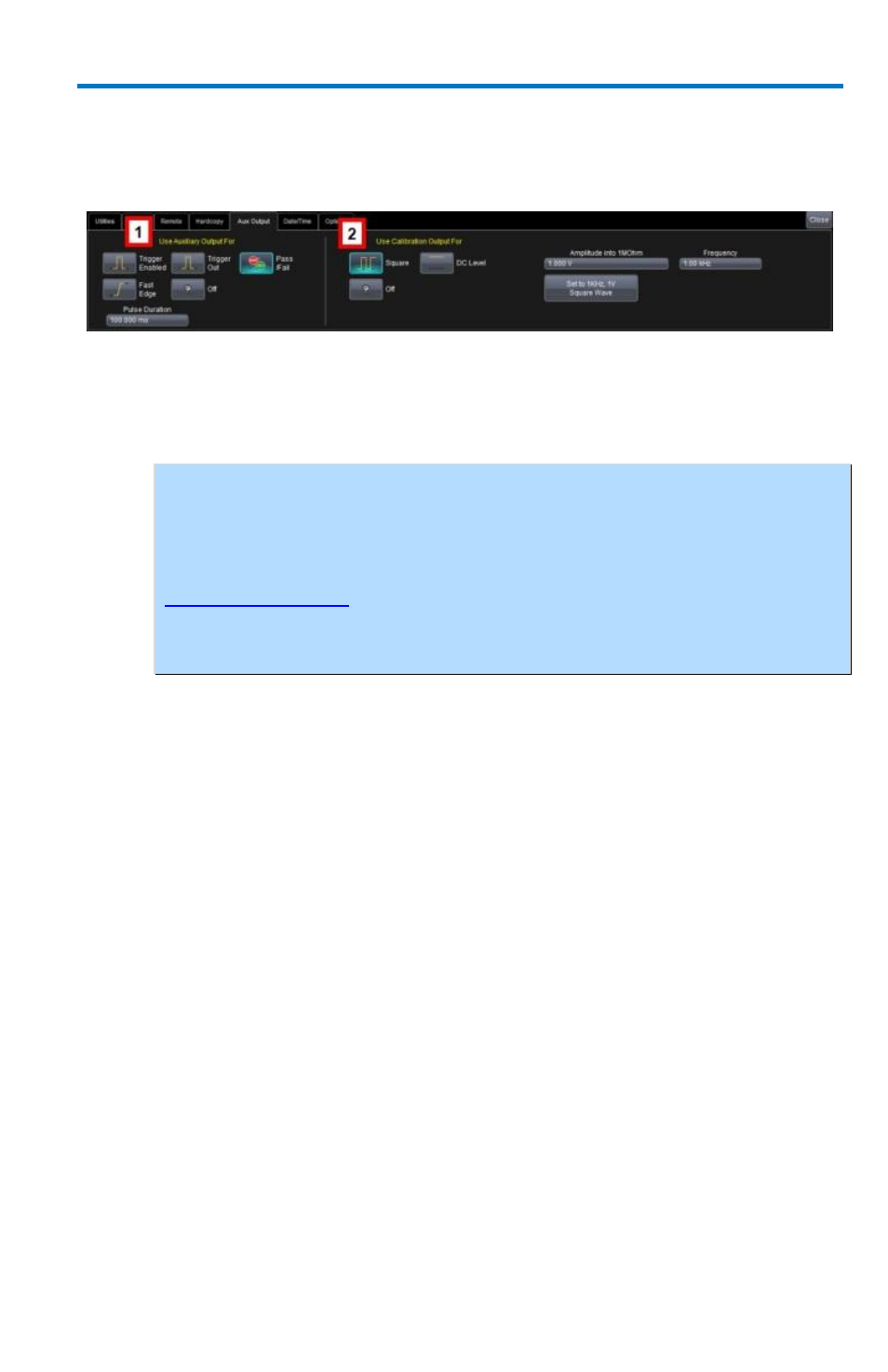

The Aux Output dialog allows you to specify Auxiliary and Calibration
Output details.
1. If you want a specialized output, touch one of the following buttons
under Use Auxiliary Output For: Square Wave, Trigger Enabled,
Trigger Out, Pass/Fail, or Off.
NOTE: If Pass/Fail is selected on this Use Auxiliary Output For section
of the dialog, a Pulse Duration data entry control is made available.
Provide a value within your instrument's specified range (varied based on
your specific model, refer to datasheet specifications at
teledynelecroy.com for details) using your preferred input control
method. Additional information on using the touch screen controls can be
found in the
Dialog Area (on page 87 ) .
2. On the Use Calibration Output For section of the dialog, choose
Square, DC Level, or Off. If you want a 1 kHz, 1 V Square Wave,
touch the Set to 1 kHz, 1 V Square Wave button.
Additional controls are made available based on Square or DC Level
selections as follows:

If you selected Square on the Use Calibration Output For section
of the dialog, a Frequency data entry control is made available.
You can set a value using your preferred input control method.

If you selected Square or DC Level on the Use Calibration
Output For section of the dialog, an Amplitude into 1 MΩ data
entry control is made available. Provide a desired value using
your preferred input control method.
