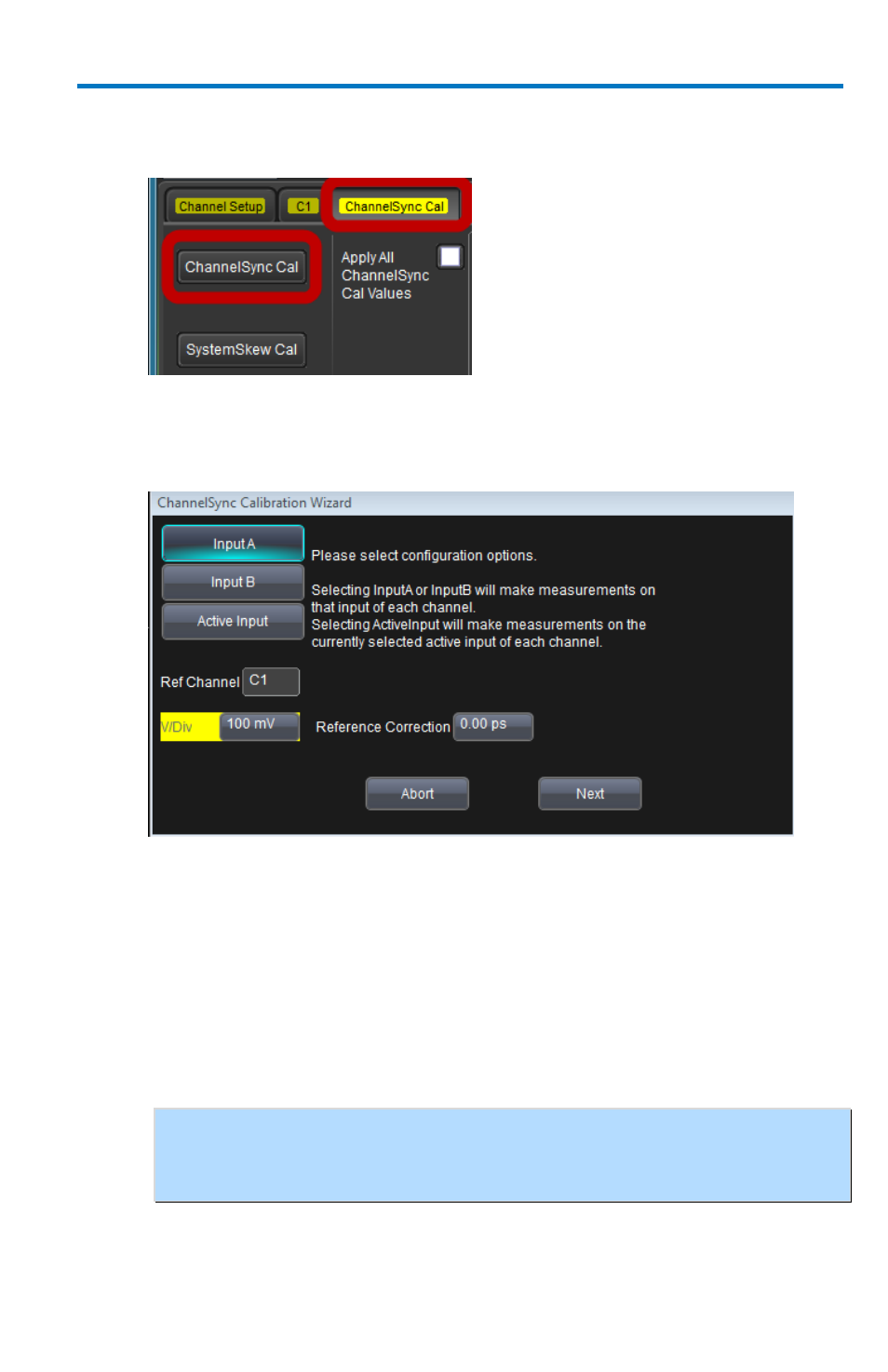

From the menu bar, choose Vertical > Channel <#> Setup. Touch the

ChannelSync Cal tab to the right of the C<#> tab.

Place a checkmark next to the module(s) you want to calibrate and

touch the ChannelSync Cal button. The ChannelSync Calibration
Wizard opens.

Select to measure Input A or Input B, or select Active Input to make
measurements on the active input of each channel.

Select a Ref Channel to be used as a reference against which all
other measurements are made during your calibration.

Enter the V/div (gain) setting for which you want to perform the
ChannelSync Cal on all channels. The default value is 100 mV/div,
which corresponds to the Fast Edge output amplitude.

NOTE: Connect the Fast Edge calibration signal (located on the front of
the Acquisition Module) to the reference input channel (in this example,
C1), then touch the Next button. The ChannelSync™ Cal begins.
