accumulate on-screen points from many acquisitions to see your signal
change over time. The instrument persistence modes show the most
frequent signal path in three-dimensional intensities of the same color, or
graded in a spectrum of colors.
You can show persistence for up to eight inputs for any channel, math
function, or memory location (M1 to M4).
Persistence Setup
Touch Display → Persistence Setup... on the menu bar.
Now, touch the Persistence On checkbox and refer to the following
scenarios based on your needs.
Persistence Setup for All Input Channels at Once

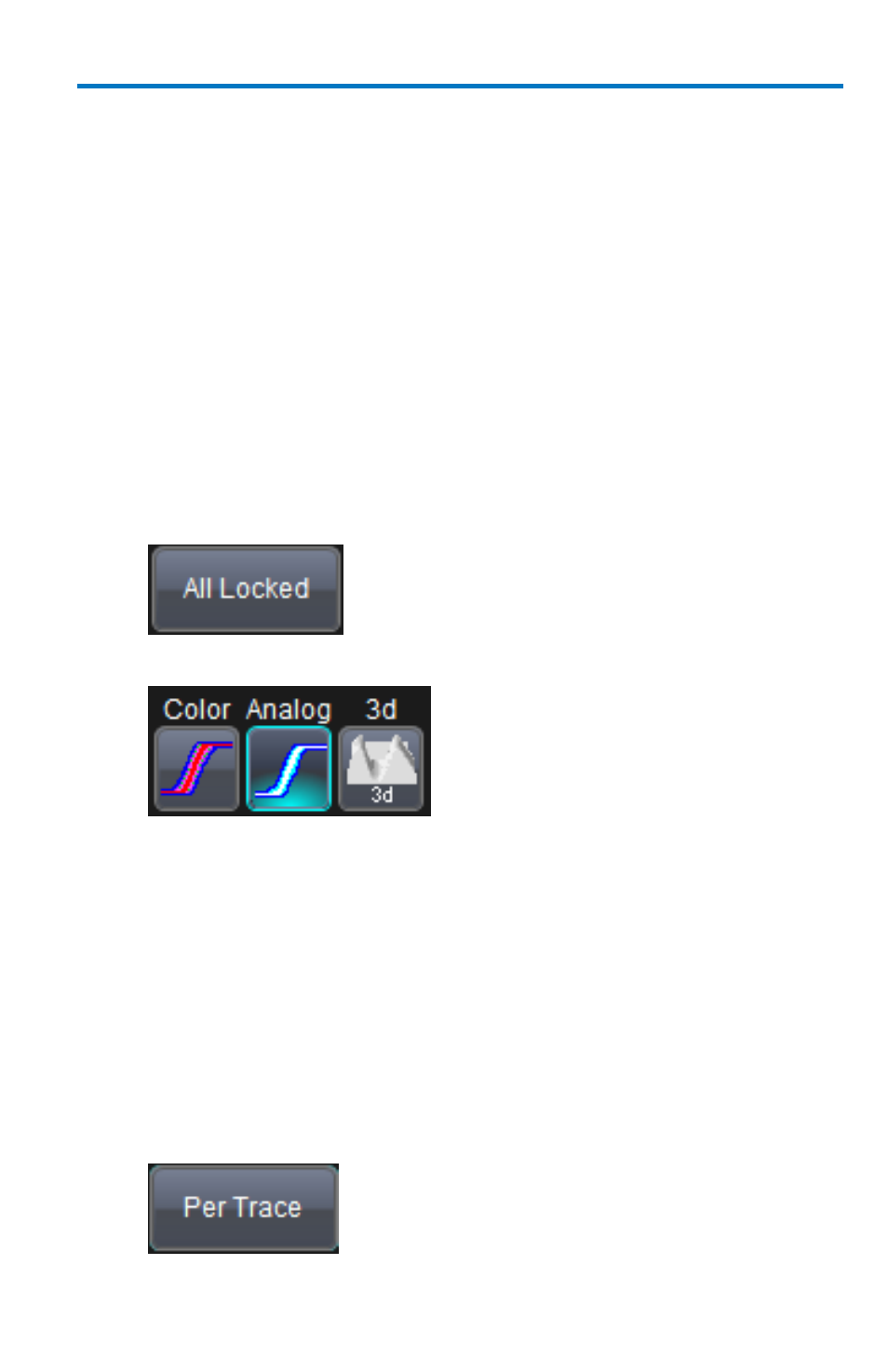

1. Touch the All Locked button.
2. Touch one of the Mode buttons.
3. Touch the Show last trace checkbox if you want the last trace
displayed.
4. Touch inside the Saturation data entry control and provide a whole
number integer.
For more information on saturation, see the Saturation Level topic.
5. Touch inside the Persistence time data entry control and make a
selection from the pop-up menu.
Persistence Setup for Each Input Channel Individually
1. Touch the Per Trace button.
