Shortcut Buttons
Several dialogs contain common functions accessible from a row of buttons
that can save you a step or two when using a particular function (instead of
accessing the respective location from the menu bar or the Signal Display
Grid Pop-Up Menu).

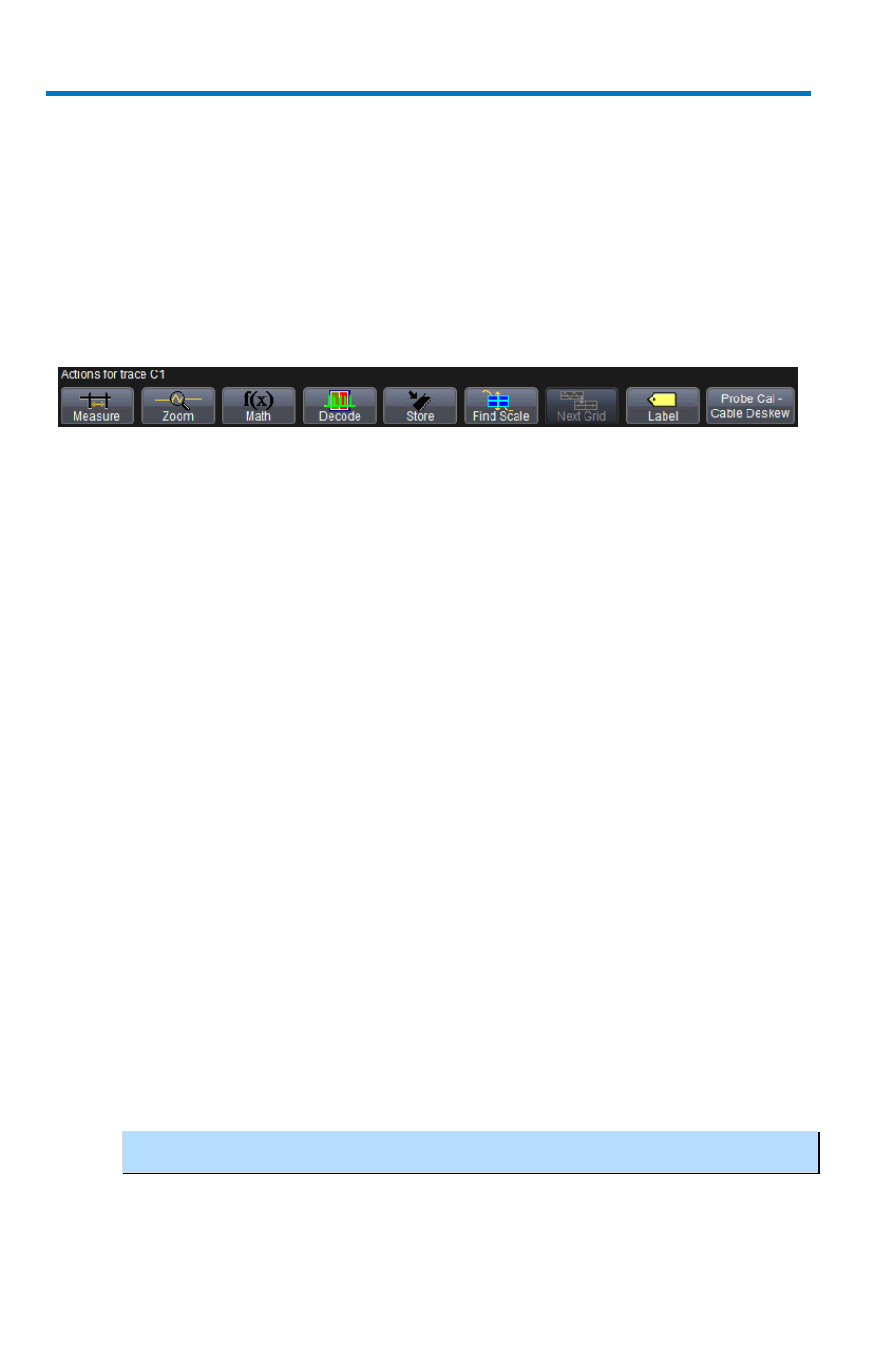

For example, at the bottom of the Channel Setup dialog, these buttons
perform the following functions:

Measure - Opens the Measure menu. You can then select a
parameter from this menu without leaving the Channel Setup dialog.
The parameter automatically appears below the grid.

Zoom - Creates a zoom trace of the channel trace whose dialog is
currently displayed.

Math - Opens the Math menu. You can then select a math function
from this menu without leaving the Channel Setup dialog. A math
trace of the channel whose dialog is currently open is automatically
displayed.

Decode - Opens the main Serial Decode dialog where protocol
option measurements can be applied to signals.

Store - Loads the channel trace into the next available memory
location (M1 to M4).

Find Scale - Automatically performs a vertical scaling that fits the
waveform into the grid.

Next Grid - Automatically moves the channel trace whose dialog is
currently open onto the next grid. If you have only one grid
displayed, a new grid will be created automatically, and the trace
moved.
NOTE: This button is not available on all oscilloscope models.
