R
ECALLING
S
ETUP
(
S
) D
IRECTLY FROM A
F
ILE
Recall your setup(s) directly from a file by using controls on the Recall
From File section on the right side of the dialog. Touch inside the Recall
panel from file data entry control and provide a path to the destination
folder. Or touch Browse to navigate to the destination folder. Finally, touch
the Recall Now button.
Recalling Default Settings
Your instrument's default settings can be recalled at any time using the
Recall Default button.
Saving and Recalling Waveforms
Saving Waveforms
The Save Waveform dialog is used to save displayed waveforms to either a
memory trace or to text or binary file formats.
Access the Save Waveform dialog by either selecting File → Save
Waveform from the menu bar or clicking the Save Waveform button on
the main Save/Recall dialog.

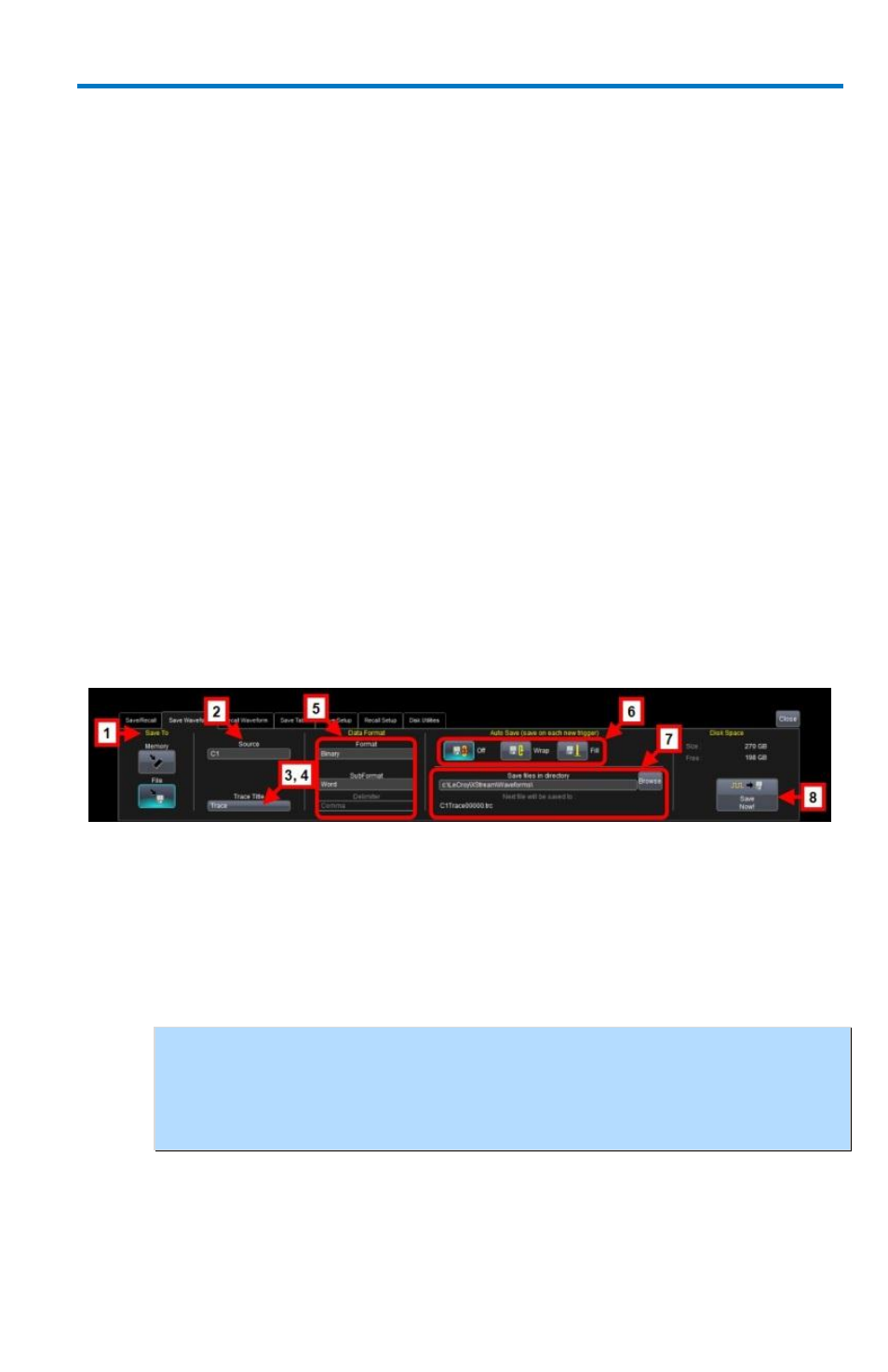

Use the numbered sections of this Save Waveform dialog, which
correspond with the following explanations, to properly save your
waveform(s).
1. Select either Memory or File by touching either respective button on
the Save To portion of the dialog.
NOTE: When Memory is selected, only Source and Destination controls
are shown on the Save Waveform dialog. When File is selected, many
more controls are available. Regardless, the controls are used as
explained in the following steps.
2. Touch inside the Source control and select a source from the Select
Source pop-up. The source can be any trace; for example, a channel
(C1–C4), math function (F1–F4), or a waveform stored in non-volatile
RAM (M1–M4).
