S
LAVE
A
CQUISITION
M
ODULE
DBI S
ETTINGS
When you use DBI and make correct connections and channel selections
from the TimeBase → Horizontal Setup... dialog, the system makes value

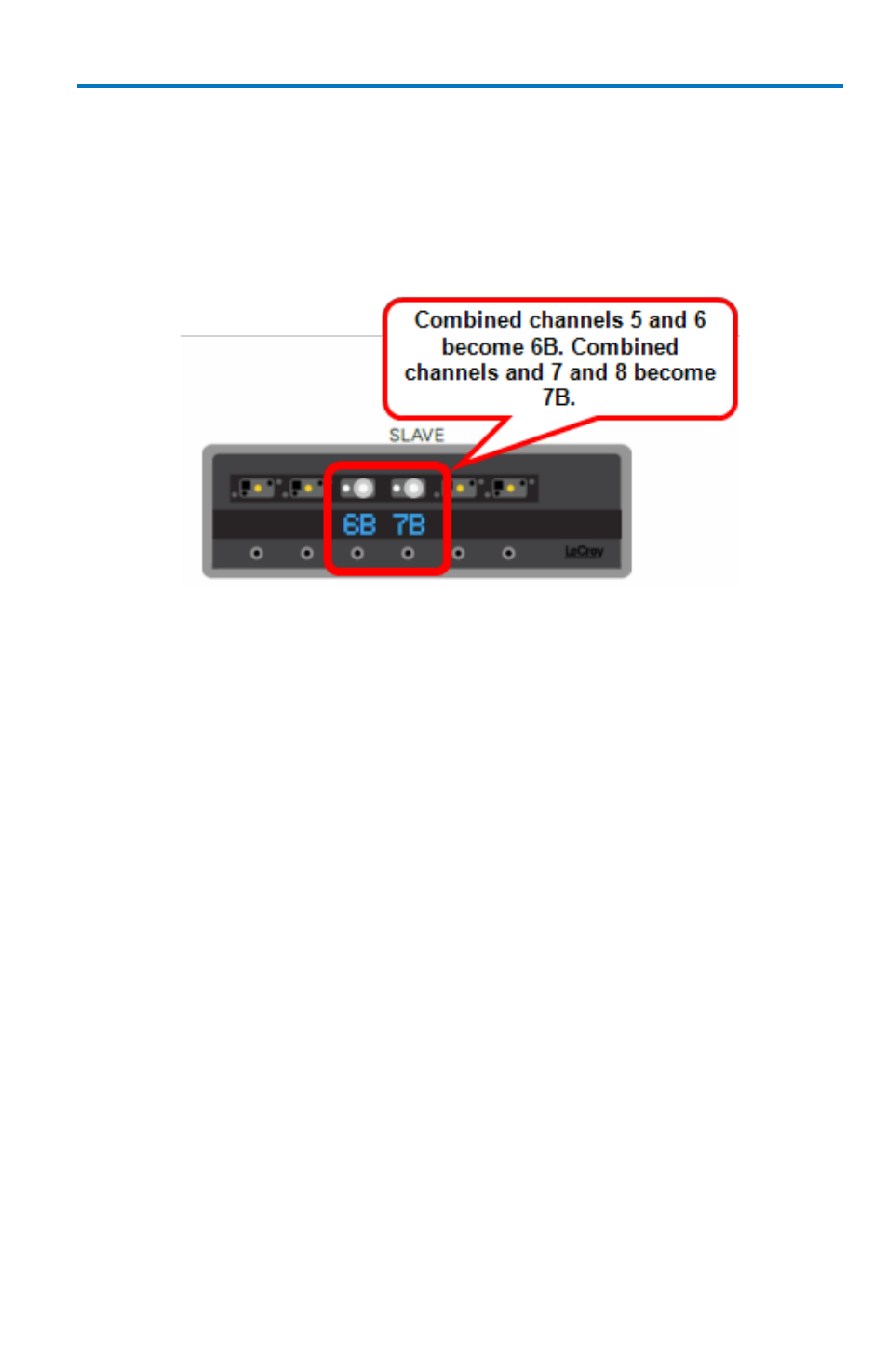

changes for you on your Slave Acquisition Module. The blue, numeric
channel LEDs form the following configuration in 45 GHz mode on a Slave
Acquisition Module:
PLEASE NOTE THE FOLLOWING:

When using DBI, use Channel 3 for 30 or 36 GHz mode high-speed serial
triggering.

When using DBI, use Channel 4 for 45 GHz mode high-speed serial
triggering.
Timebase Setup and Control
1. With the Timebase dialog showing, touch inside the Time/Division
data entry control and provide a value using your preferred input
control method. Additional information on using the touch screen
controls can be found in the Dialog Area (on page 87).
2. Touch inside the Delay data entry control and provide a value.
