4. Position T

able Settings

4. Position

Table

Settings

To move the actuator to a specified position, basically you must enter the target position in the “Position” field of
the position table.
A target position can be specified as an absolute coordinate indicating a distance from the home (absolute mode),
or as a relative coordinate indicating a relative travel from the current position (incremental mode).
Once a target position is entered, all other fields will be automatically populated by the defaults set by the
corresponding parameters.
The defaults vary depending on the actuator characteristics.

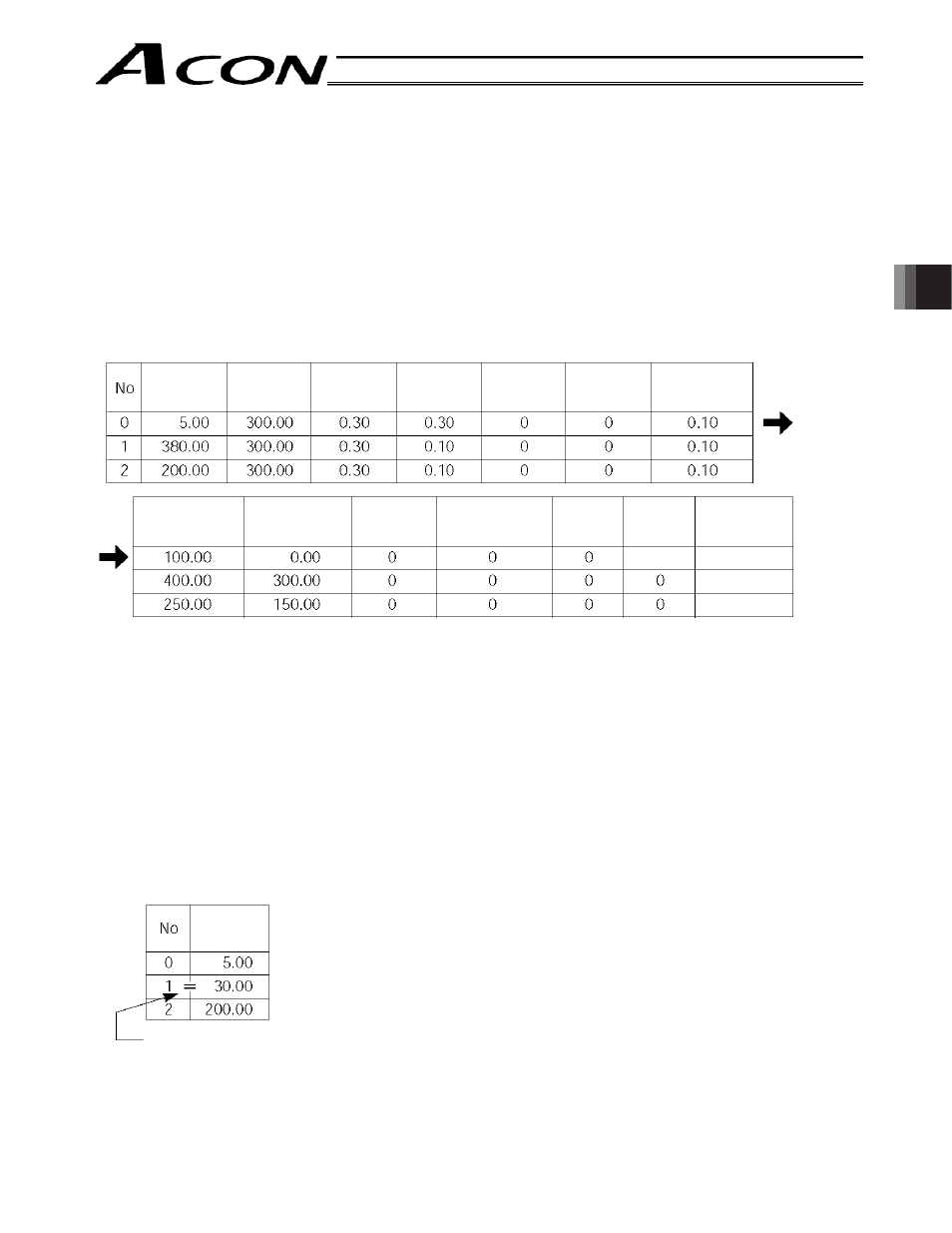

The position table is explained by using the PC software screen as an example.
(The display on the teaching pendant is different.)

(1) No.

x Each number indicates a position data number. The respective numbers are defined as

follows:
No. 0 --- Entry field for conditions to move to the rear end.
No. 1 --- Entry field for conditions to move to the front end.
No. 2 --- Entry field for conditions to move to the intermediate point.

(2) Position

x Enter a target position of the front end, rear end or intermediate point, in mm.

Absolute mode:

Enter a distance from the actuator home.

Incremental mode: The actuator is assumed to operate at a constant pitch. Enter a

relative travel from the current position.
For example, you can move the actuator to the front end from the
intermediate point via incremental moves at a 30-mm pitch.
(Use of the standard type is recommended because zone output
signals are available in this type.)

Absolute mode:

The rear end is positioned 5 mm away from the home.

Incremental mode: The front end is positioned 30 mm away from the current

position.

Absolute mode:

The intermediate point is positioned 200 mm away from the
home.

* On the teaching pendant, an equal sign indicates that the applicable position is set in the

incremental mode.

Position Speed

Acceleration

Deceleration

Push Threshold

[mm]

[mm/s]

[G] [G] [%] [%] [mm]

Positioning band

Zone +

Zone –

Incremental

Comment

[mm]

Acceleration/

deceleration

mode

Command

mode

Standstill

mode

Rear end

Front end

Intermediate point

Position

(mm)
