4
2. Checking for Connected Axes
The software checks for connection all axes up to the axis specified in the Last axis # box of the “Setting of
application” window (Fig. 1 or 7.5).
After the check, “(Connecting)” will be shown for those axes whose connection has been confirmed, while “-” will
be shown for all other axes.

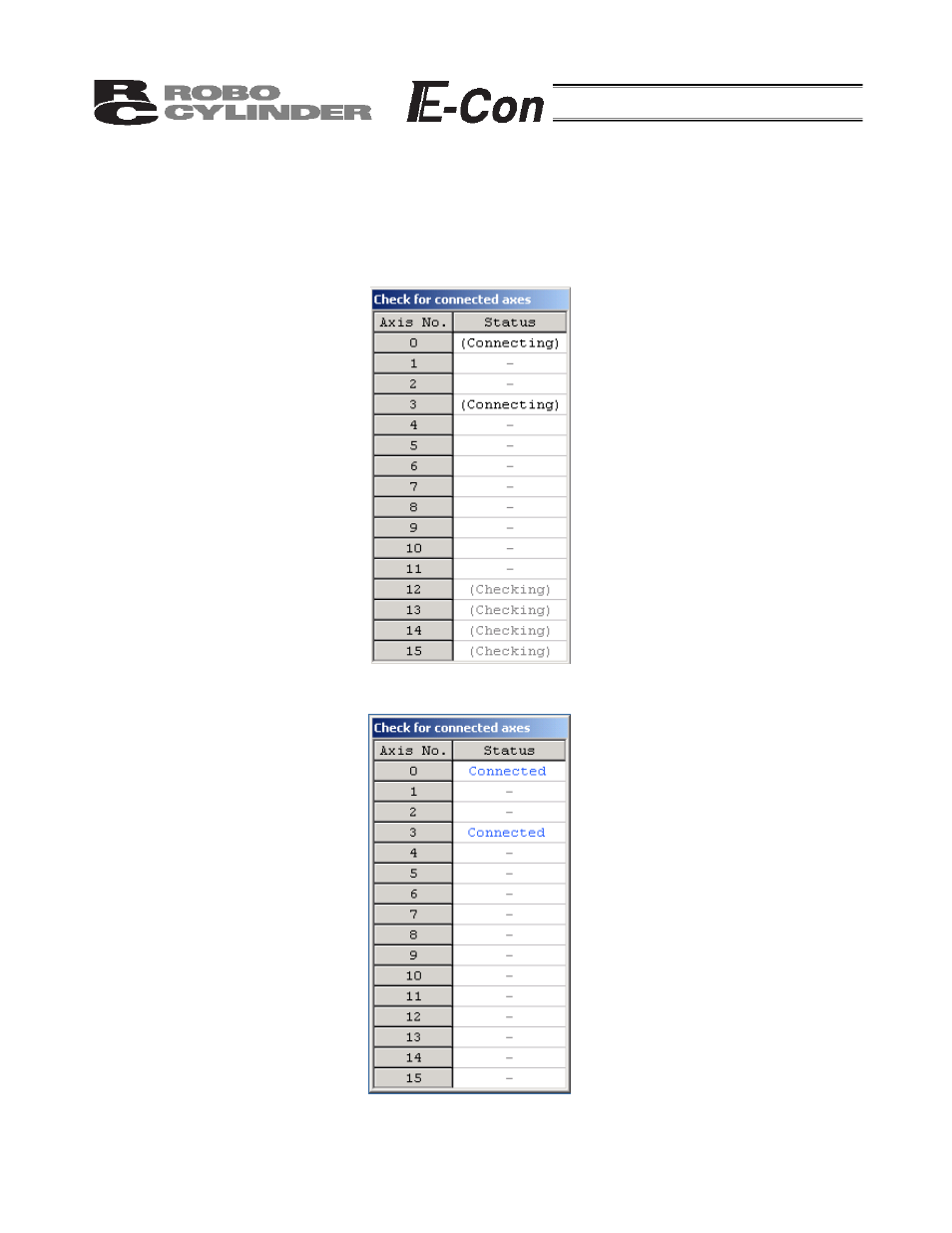

Fig. 2.1 Check for Connected Axes Window (Checking for Connection)
Fig. 2.2 Check for Connected Axes Window (Connection Check Completed)
