25
7-2 Controller Error List
To monitor the controller error list, click Monitor and then select CTR Error List from the main menu, or click
in the toolbar. In the “Select axis number” window, select the axis number corresponding to the axis whose
controller error list you want to monitor. (Refer to 4, “Selecting an Axis.”)

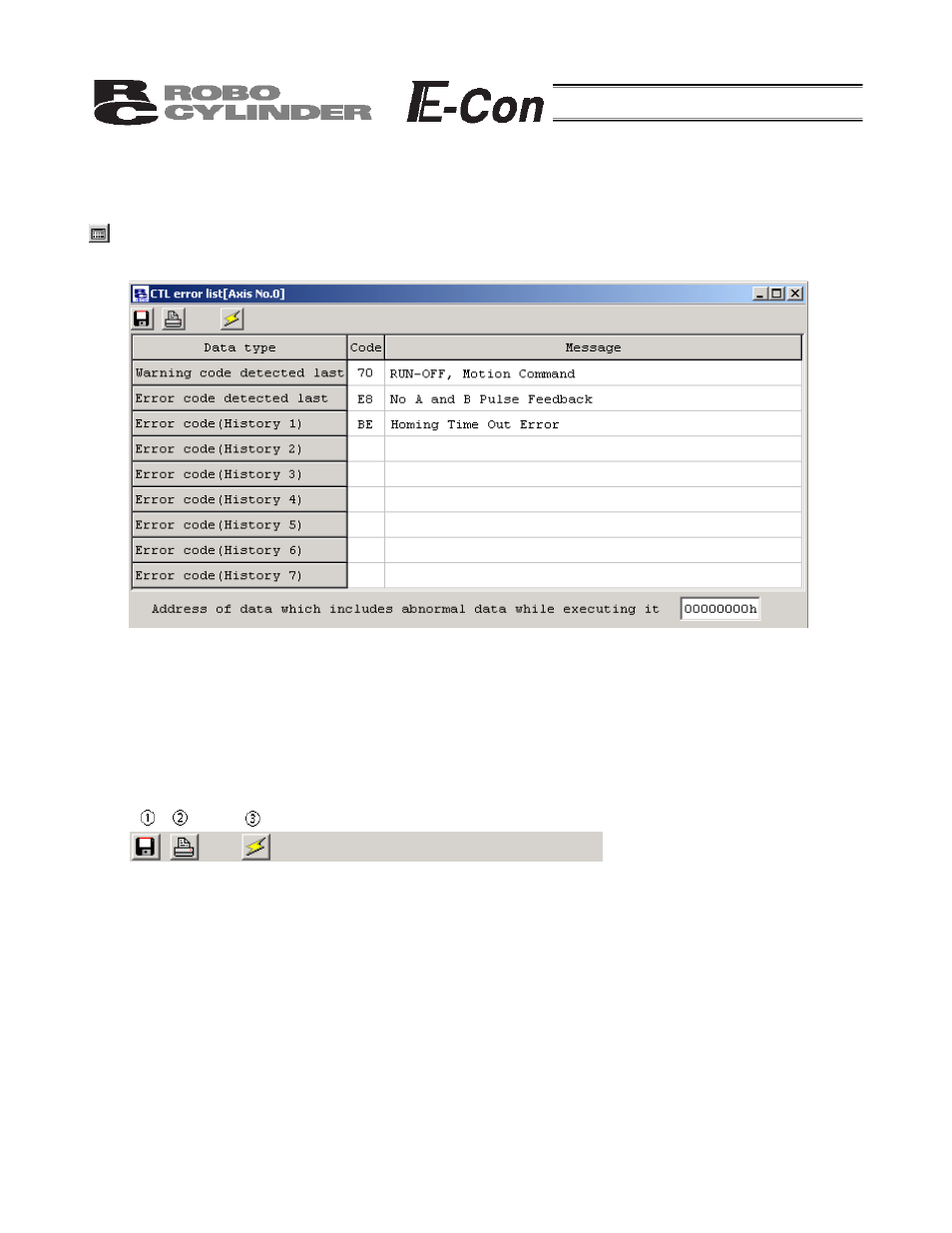

Fig. 7.2 Controller Error List Window
(1) Error list
The last detected warning code, last eight error codes and address of data in which runtime error was
detected (provided as reference data for manufacturer) are shown.
(2) Toolbar
Fig. 7.3 Toolbar
[1] Save as
Save the error list to a file (CSV format).
* The saved file cannot be read in this application.
[2] Print
Print the error list.
[3] Refresh
Acquire the error list from the controller again to refresh the information displayed in the window.
