27
(3) Toolbar

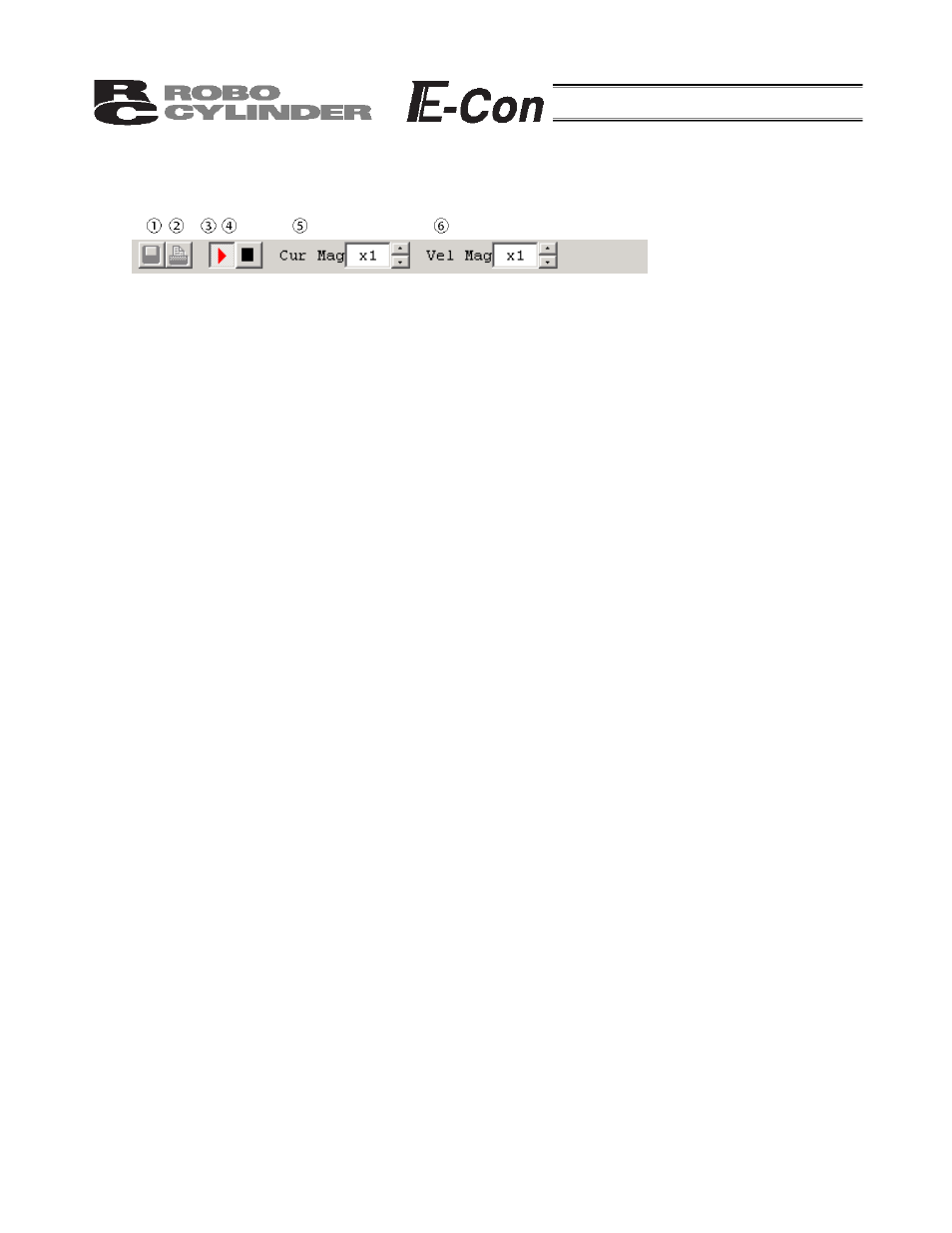

Fig. 7.5 Toolbar
[1] Save as
Save the displayed current data and velocity data to a file (CSV format).
* Only the range of data displayed in the data display area will be saved.
* The saved file cannot be read in this application.
[2] Print
Print the displayed current and velocity data.
[3] Monitor start button
Start
monitoring.
[4] Monitor stop button
Stop
monitoring.
[5] Vertical axis magnification change button (current)
Change the vertical axis magnification in the current data display area.
[6] Vertical axis magnification change button (velocity)
Change the vertical axis magnification in the velocity data display area.
