8
3-2 Operations Using the Toolbar Buttons

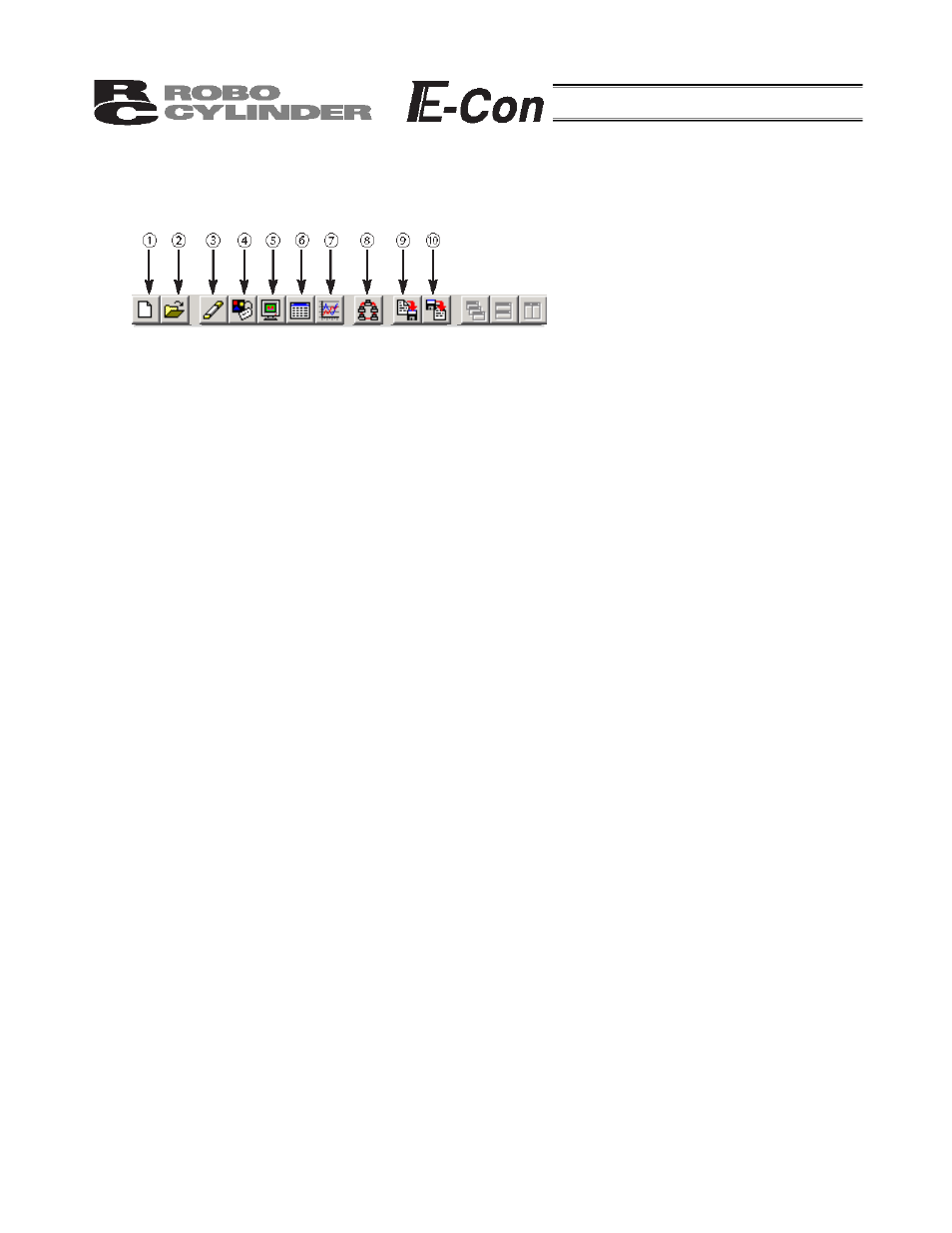

Fig. 3.2 Toolbar Buttons
[1] New position data
Same as clicking File, pointing to New, and then selecting Position Data.
[2] Open file
Same as clicking File, and then selecting Open.
[3] Edit/teach position data
Same as clicking Position, and then selecting Edit/Teach.
[4] Edit parameters
Same as clicking Parameter, and then selecting Edit.
[5] Monitor
Same as clicking Monitor, and then selecting Status.
[6] CTR Error list
Display the CTR Error list window.
Same as clicking Monitor, and then selecting CTR Error List.
[7] Velocity/current
Display the velocity/current monitor window.
Same as clicking Monitor, and then selecting Velocity/Current.
[8] Reconnect
Same as clicking Setup, pointing to Controller Setup, and then selecting Reconnect.
[9] Save all data
Same as clicking File, pointing to Backup, and then selecting Save from Controller to File.
[10] Send all data
Same as clicking File, pointing to Backup, and then selecting Send from File to Controller.
* The menu items shown in gray cannot be selected.
