3
1-5 Setting of Application Window
The “Setting of application” window (Fig. 1) is displayed only once after the software has been installed for the
first time. In this window, set the information the software needs to communicate with the controller.

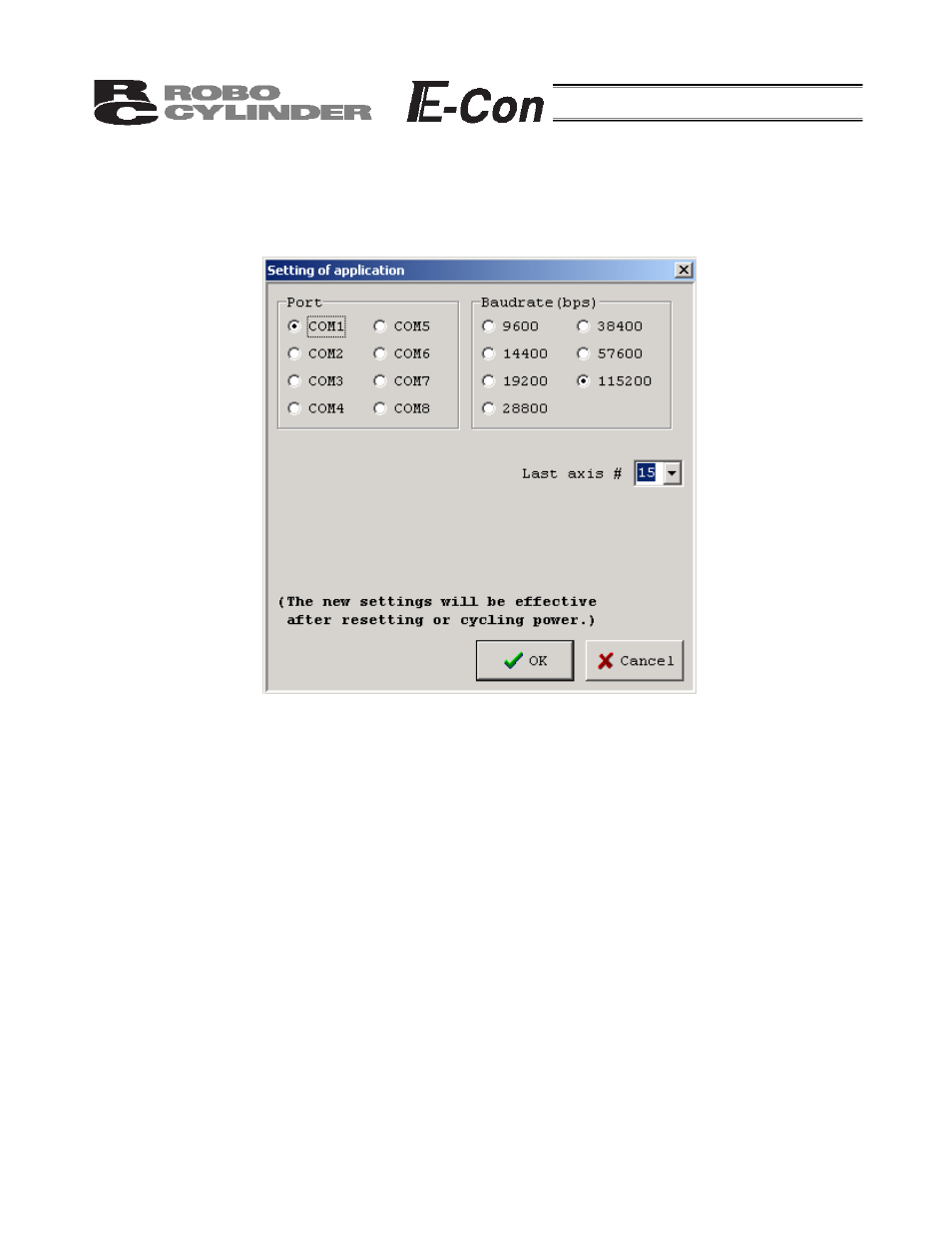

Fig. 1 Setting of Application Window
[1] Port
From the list, select the serial port to be used to communicate with the controller.
[2] Baudrate
(bps)
From the list, select the baudrate the software will use when communicating with the controller.
* The baudrate selected here is used only in the communication between this application and controller. It
does not affect the communication speed parameters of the controller.
[3] Last axis #
Select the axis number of the last axis to be checked for connection.
* Axes of numbers greater than the value selected here will not be checked for connection. Select an
appropriate axis number after checking the axis numbers of the connected axes.
After setting the above items, click OK. The specified axes will be checked for connection. (The next time
you start the software, connected axis check will be performed automatically based on the settings you have
just specified.)
* These settings can be changed in the ”Setting of application” window (Fig. 7.6). If Cancel is clicked, the
application will end without checking for connected axes. (The next time you start the software, the
“Setting of application” window will be displayed again.)
