Chapter 1 - Introduction
X501NET System Configuration Manual © 2008 Ronan Engineering Company 1
CHAPTER 1 – INTRODUCTION
The X501NET is a network device. It has no local display or keyboard. It is configured through
the same local area network (LAN) connection that it uses to pass the data it collects.
The X501NET has a built-in web server and uses the HTTP protocol for configuration. No
special software is required. Any computer attached to the same LAN as the X501NET can use a
JavaScript enabled web browser (e.g. Internet Explorer, Mozilla, FireFox, etc) to configure the
X501NET.
1.1 Overview
The X501NET is a component of Ronan’s Sequence of events Recorder (SER) system. An SER
is an electronic system which monitors external inputs and records the time and sequence of the
changes of the inputs.

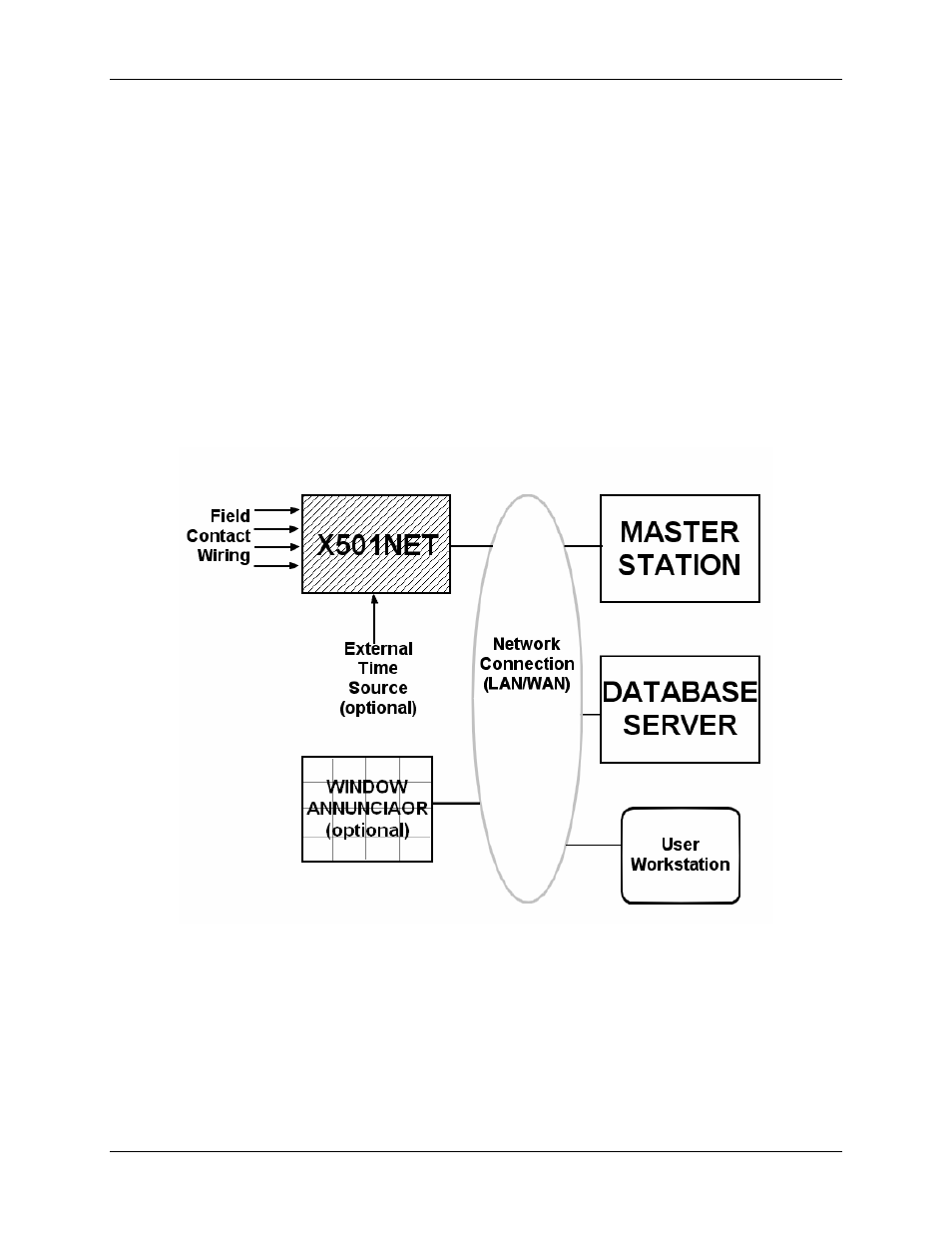

SER Functional Diagram
1.1.1 X501NET
The X501NET Multiplexers is an event acquisition device. It:
• monitors field contacts,
• detects changes in signals,
• time-stamps the signals changes as events,
