1.2. Specifications
Table 1-1 List of Specifications
MEASUREMENT CHARACTERISTICS
M 2 Measurement Real-Time ISO Compliant measurement with no moving parts
Rayleigh Length 50 μm - 6 mm after the lens
Setup & Alignment
Easy setup and alignment
System can be calibrated and ready to go within minutes
SETUP
Wavelength Range
190 nm - 1100 nm a
(covered by interchangeable sets of optics)
Maximum Input Power 1 W
Minimum Lens Focal Length 110 mm
Built-In Attenuation (Included) Fabry-Perot Reflective Glasses: OD4
Additional Removable Attenuation User choice
PHYSICAL CHARACTERISTICS
Dimensions (Module only) (64.1H x 77.3W x 97.6D) mm
Dimensions (With a Beamage-3.0) (64.1H x 81.1W x 113.6D) mm
Weight (Module only) 535 g
Weight (With a Beamage-3.0) 674 g
Operating Temperature Range 10 °C - 30 °C
Operating Relative Humidity Range 5% - 80%
C-Mount Thread Entrance Port
1.3. Beamage- M2 Technical Drawings

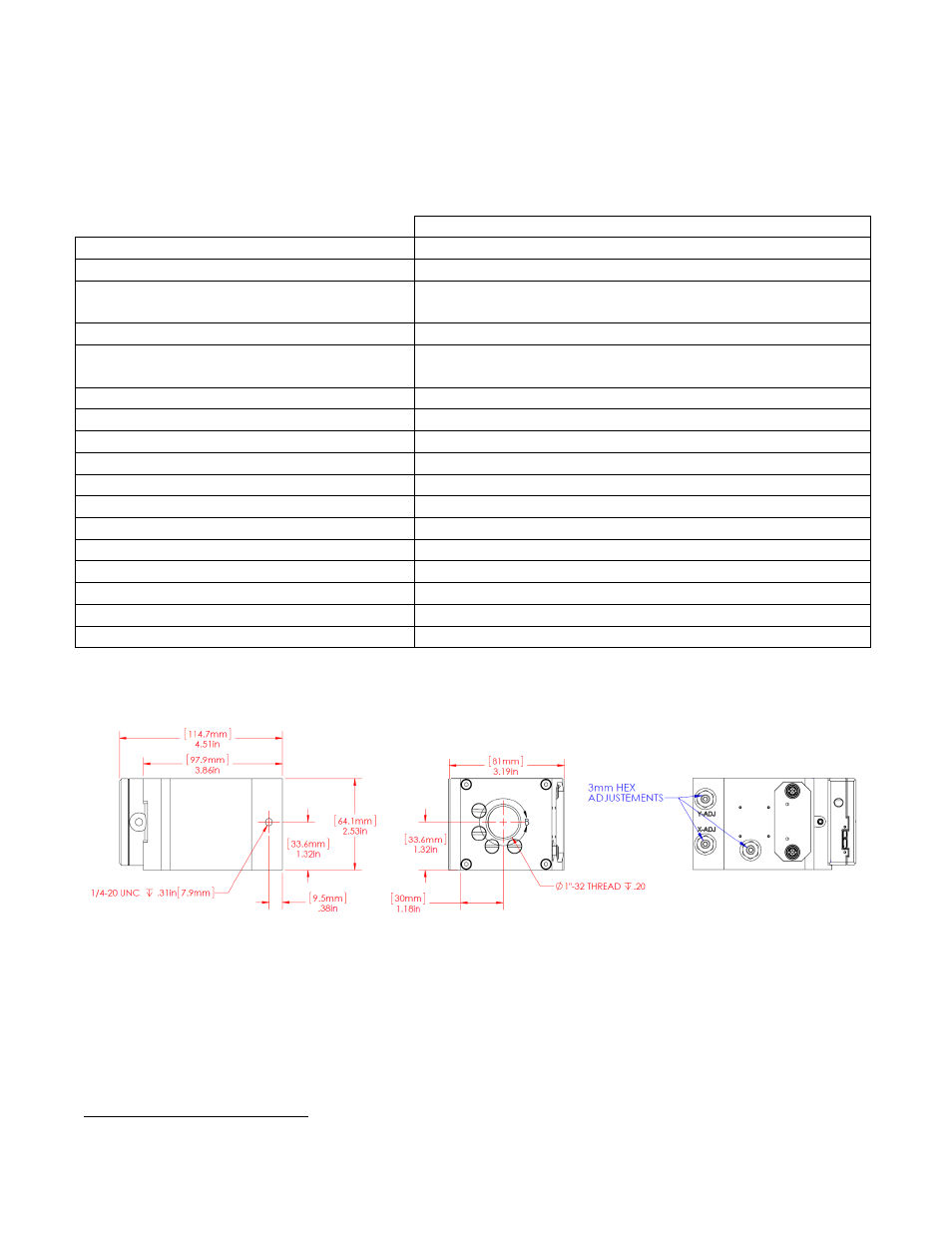

Figure 1-1 Beamage-M2 Front and Side Views
a Limited by the spectral range of the CMOS sensor. Accessories can be used to upgrade wavelength capabilities.
