The M
2
Calibration tab allows the user to calibrate the Beamage-M2 module before doing real-time M
2
calculations in the M
2
Measures tab.
The calibration is a step by step procedure and must be done one step at a time following this precise order. To
validate a value, press the ENTER or the TAB key. For the button, press ENTER or left click with a mouse to
validate a value. If, at any time, a wrong value has been entered, the Reset button can be pressed. If so, the
complete procedure must be done again from the first step.
When the Save Calibrate button is pressed, the M
2
and other parameters calculations will be displayed in real-
time in the M
2
Measures tab. After you pressed Save Calibrate and as long as you continue to capture data in
both instances of PC-Beamage-3.0, your M
2
measurements are calibrated.
3.4. The “M
2
Measures” Tab

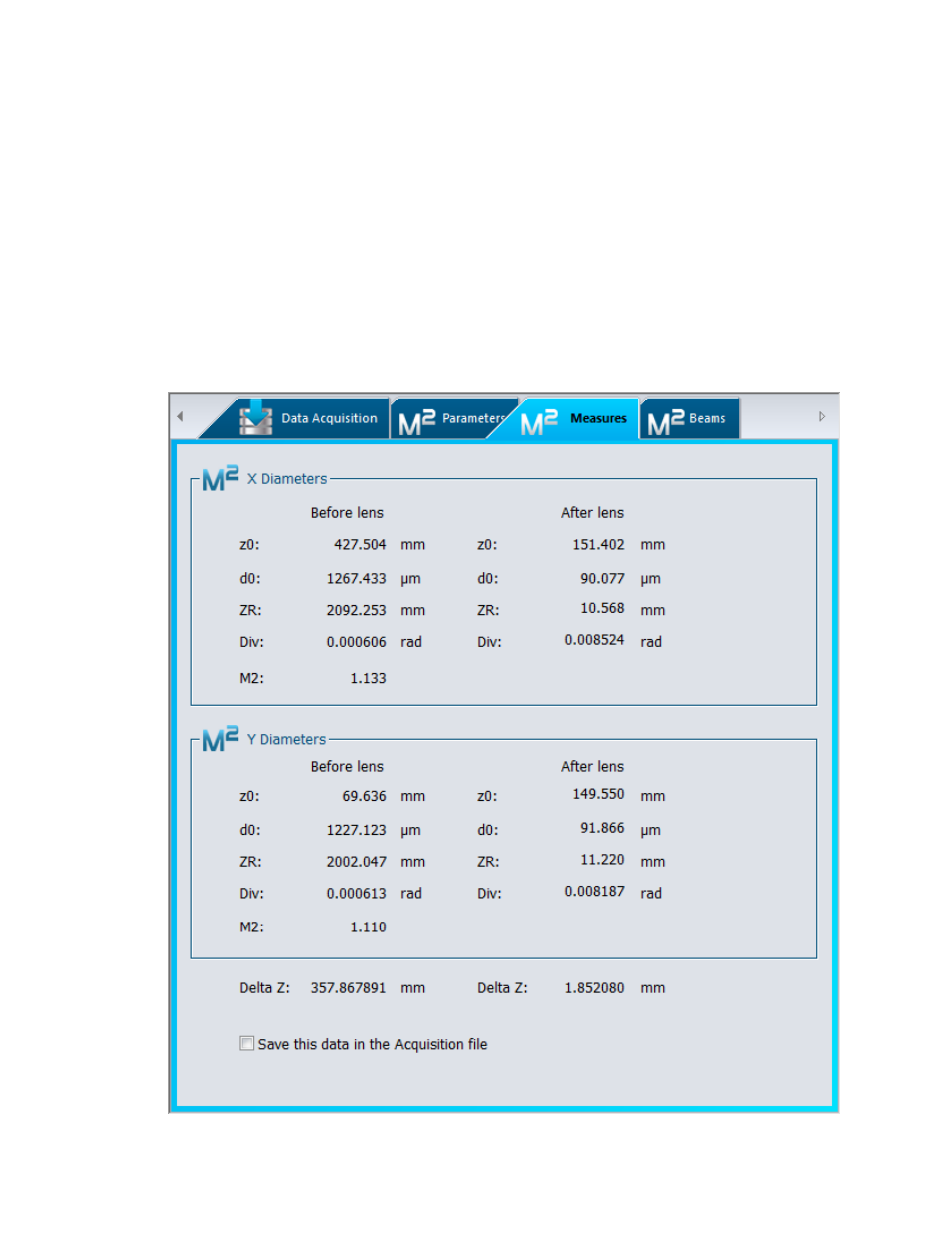

Figure 3-21 M
2
Measures Tab
