Figure 3-10 calibration at lens mode selection – Gentec-EO Beamage-M2 User Manual
Page 19
Beamage-M
2
User Manual Revision 2.0
19
6- Before working in the M2 mode, the steps listed below must be followed:
a. The active area should be at full resolution (2048 X 1088 pixels)
b. There should be no pixel addressing (set to ‘’none’’)
c. A background subtraction should be performed
7- Click the M2 mode button in the top of user interface and choose the “Calibration At Lens” Mode.

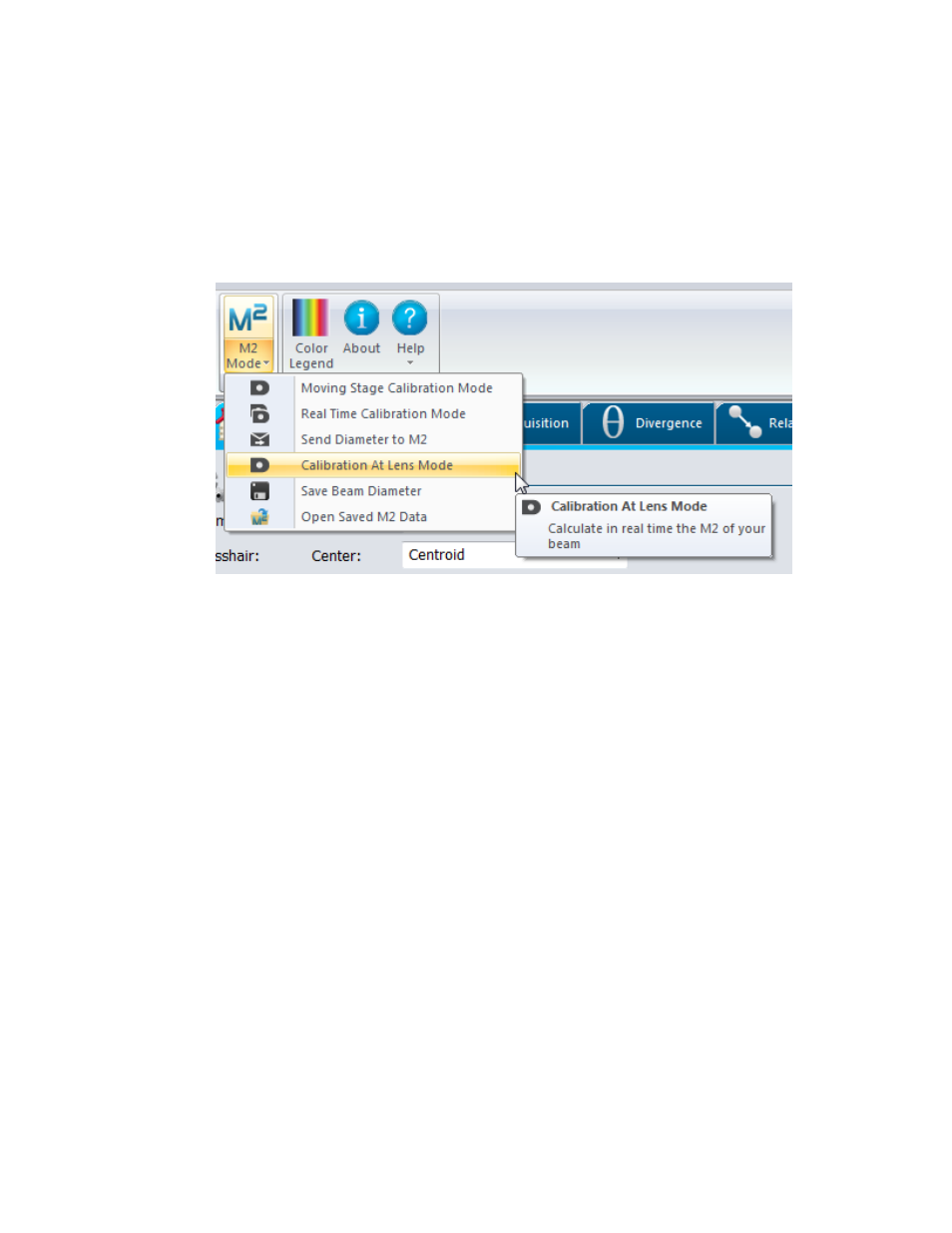

Figure 3-10 Calibration At Lens Mode Selection
This activates two new tabs on the right-hand side of the user interface. All the settings and results relative to
the M
2
measurement can be found in those new tabs.
