3.6. The M 2 Curves Display
The M 2 curves display shows each beam’s X and Y diameters with respect to their spatial positions. It is possible
to view the information before or after the lens.

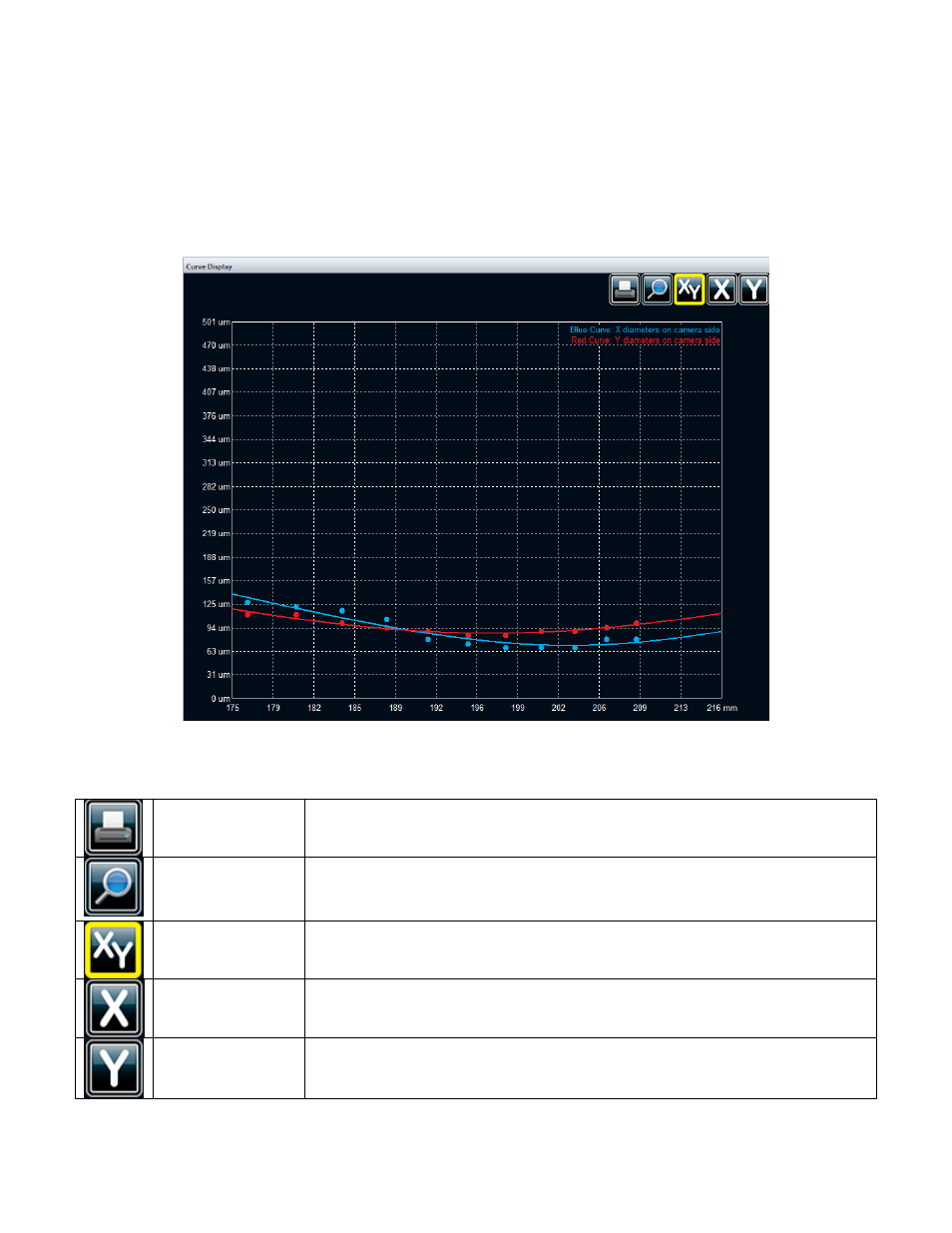

Figure 3-26 M
2
Curves Display
Table 3-3 M 2 Curves Display Buttons Definition
Print Screen Saves the current 2D display in a .bmp file.
Zoom
Activates the zoom for the M 2 graphic. Zooming can be done by selecting an
area with the left mouse button. Double-clicking the image will return it to its
original state.
Show/Hide X & Y
diameters
Displays on the same graphic the X and the Y diameters of the laser after it has
passed through the lens.
Show/Hide X
diameter only
Displays on the graphic the X diameter of the laser before it has passed through
the lens.
Show/Hide Y
diameter only
Displays on the graphic the Y diameter of the laser before it has passed through
the lens.
